Concrete Floor Box 4" Deep, Hinged Lid, 8 Keystone Openings

3 reviews   |   Q&A

$304.99 $325.00

Free shipping on orders over $99

Part #: CF9CFF
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

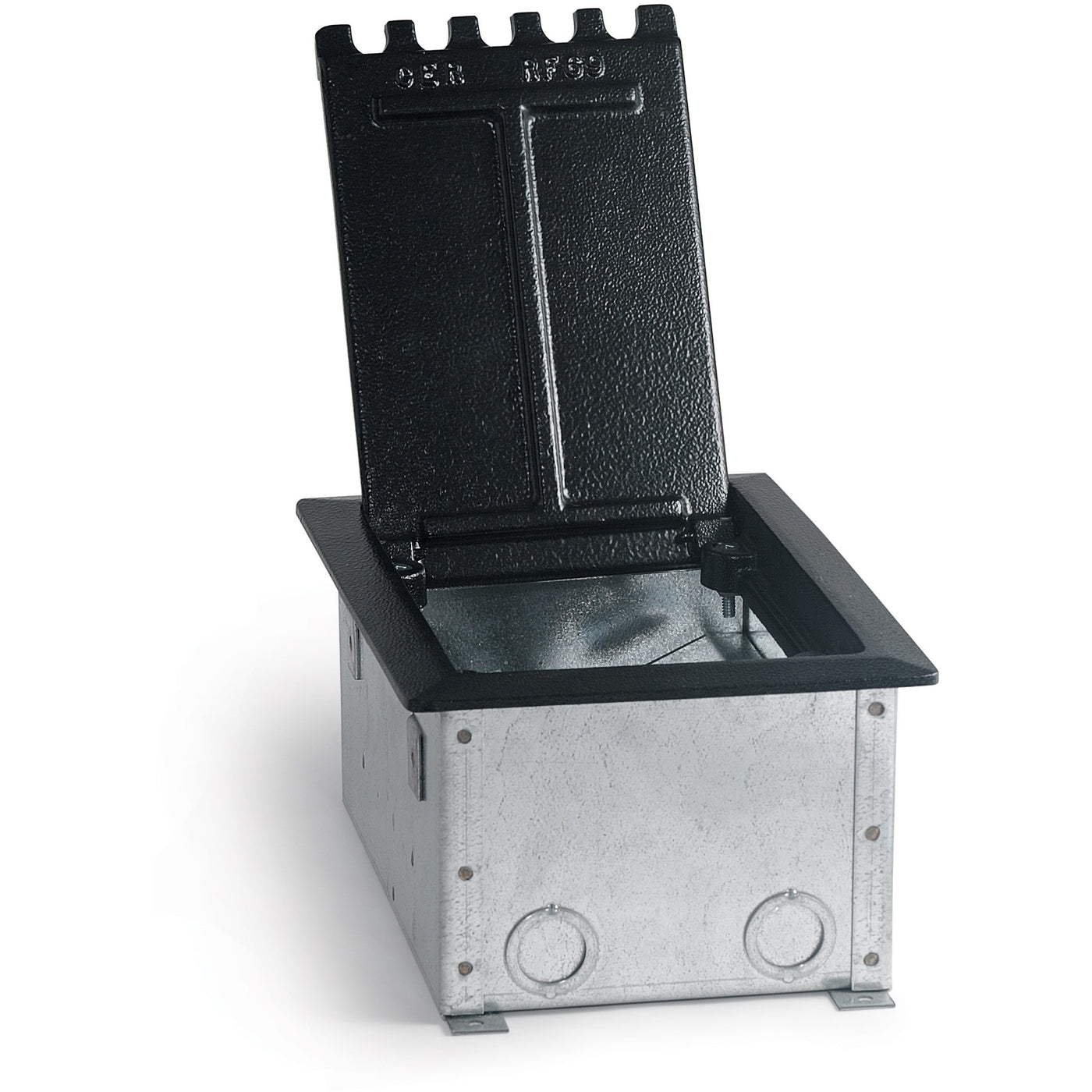

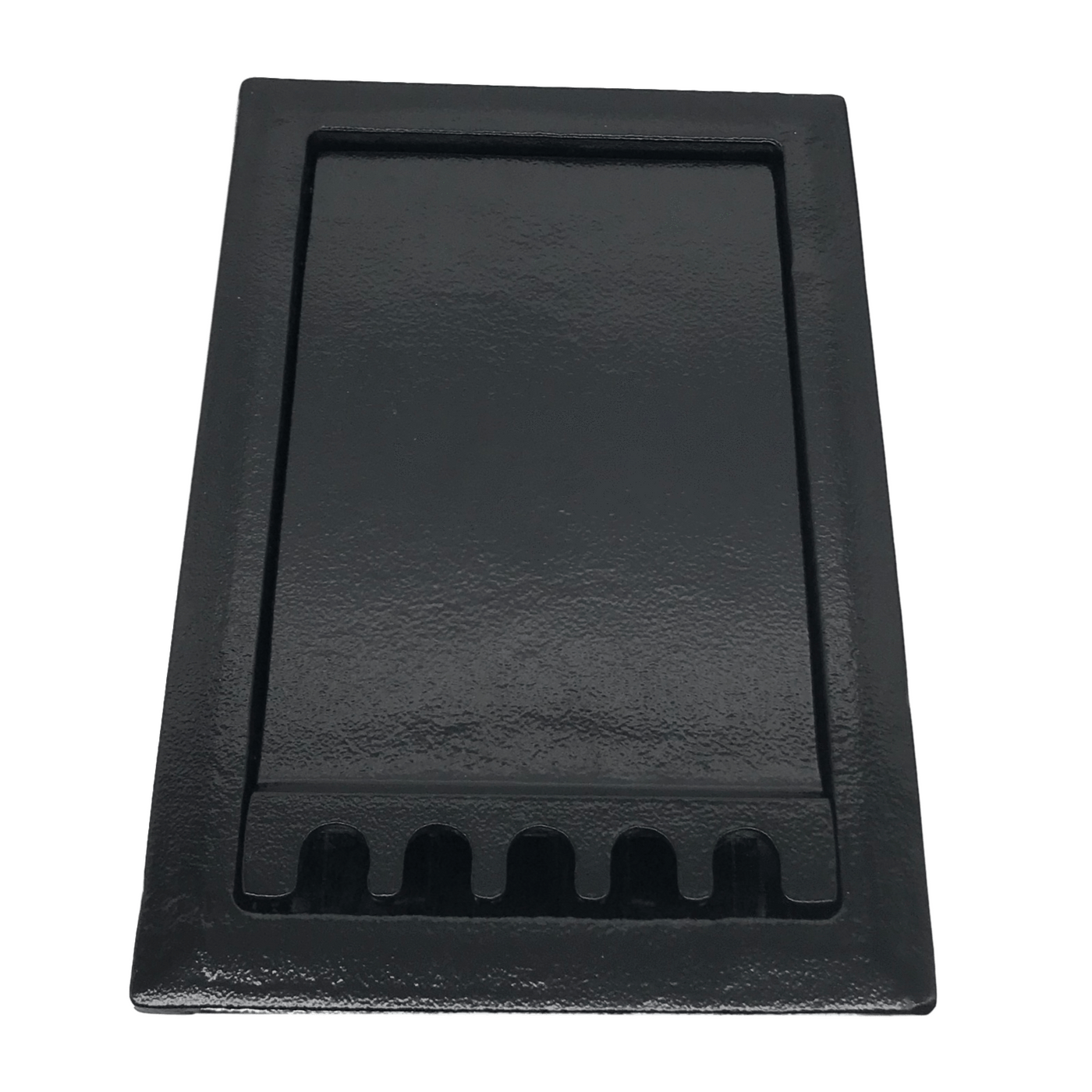

The Lew Electric CF9CFF is a floor box designed to be installed in a poured concrete floor, inside are openings for 8 keystone jacks. The floor box is heavy duty constructed of 16 gauge galvanized steel. The lid is an attractive black color made out of 1/4" cast aluminum, there are 5 openings in the lid that allow you to pass cables through to the inside of the box while keeping the lid closed eliminating tripping hazards. The lid can also be used to install carpet to the top of it to match the look of your room, the lid is recessed 1/4" to allow for carpet.

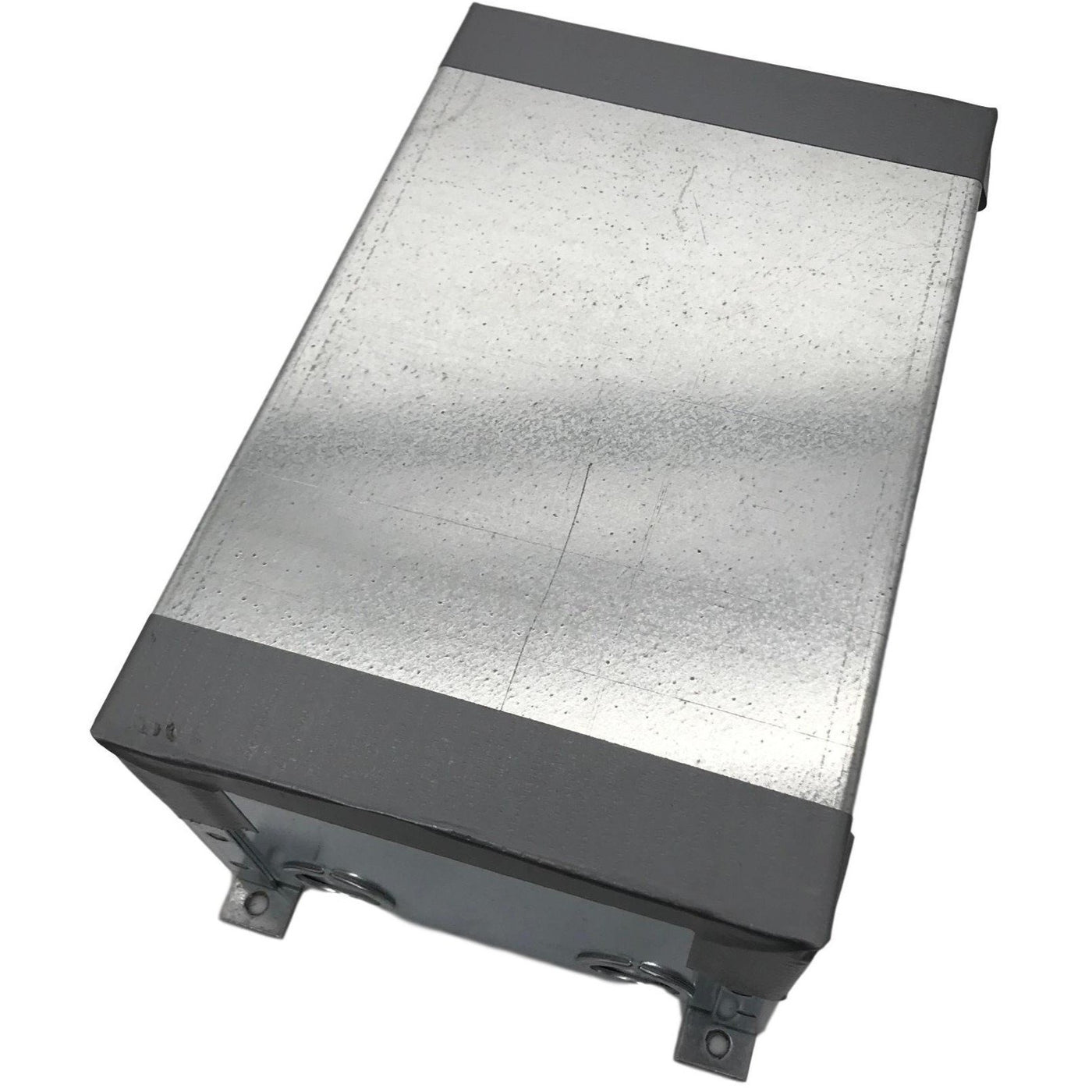

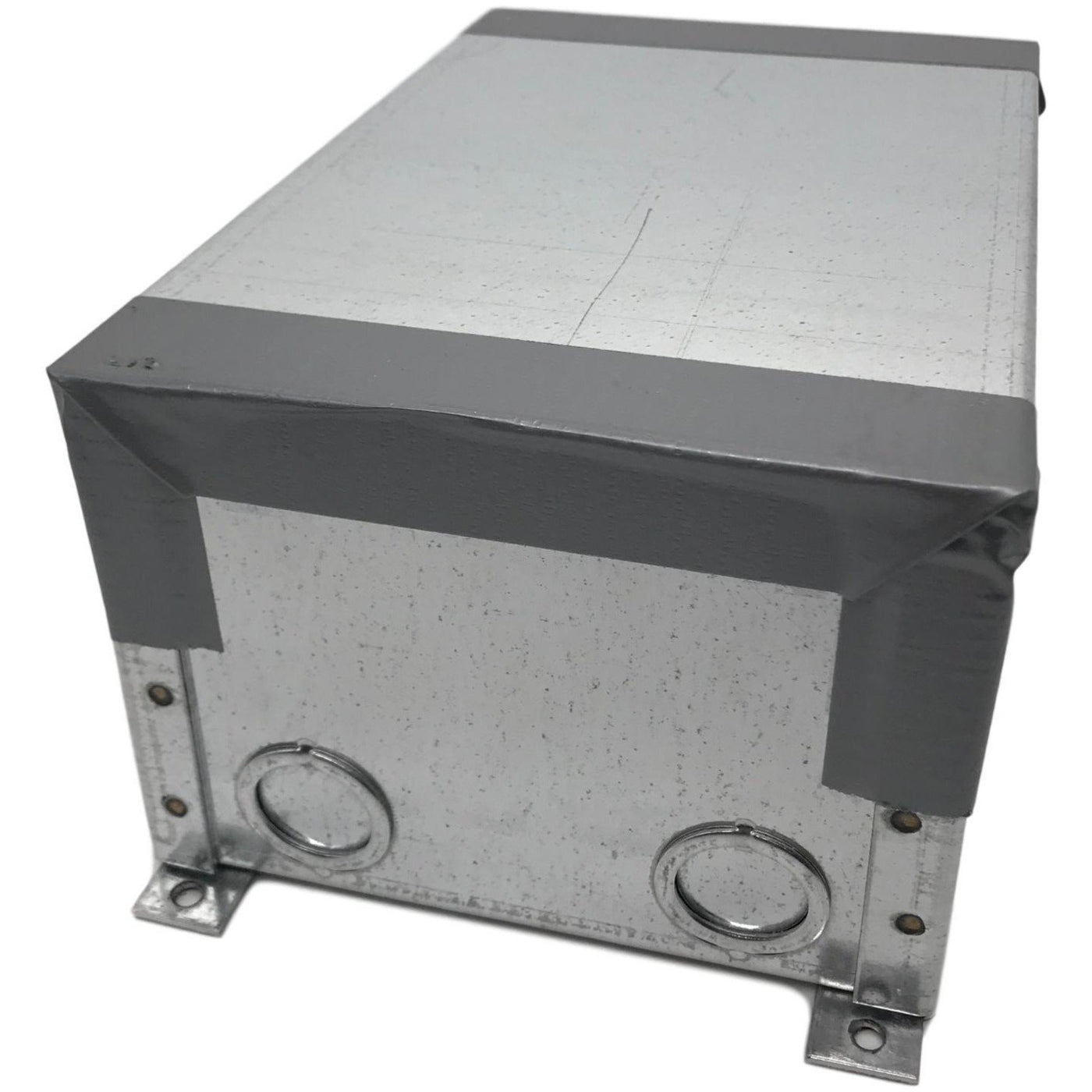

To keep the floor box from getting damaged during construction the box ships with a construction cover pre-installed that can be used during your concrete pouring. On the bottom of the box are four leveling feet allowing the installer to get the box perfectly level before concrete is poured. On each end of the box are 2 knockouts to run your conduit to, the knockouts can be used as 1/2" or 3/4".

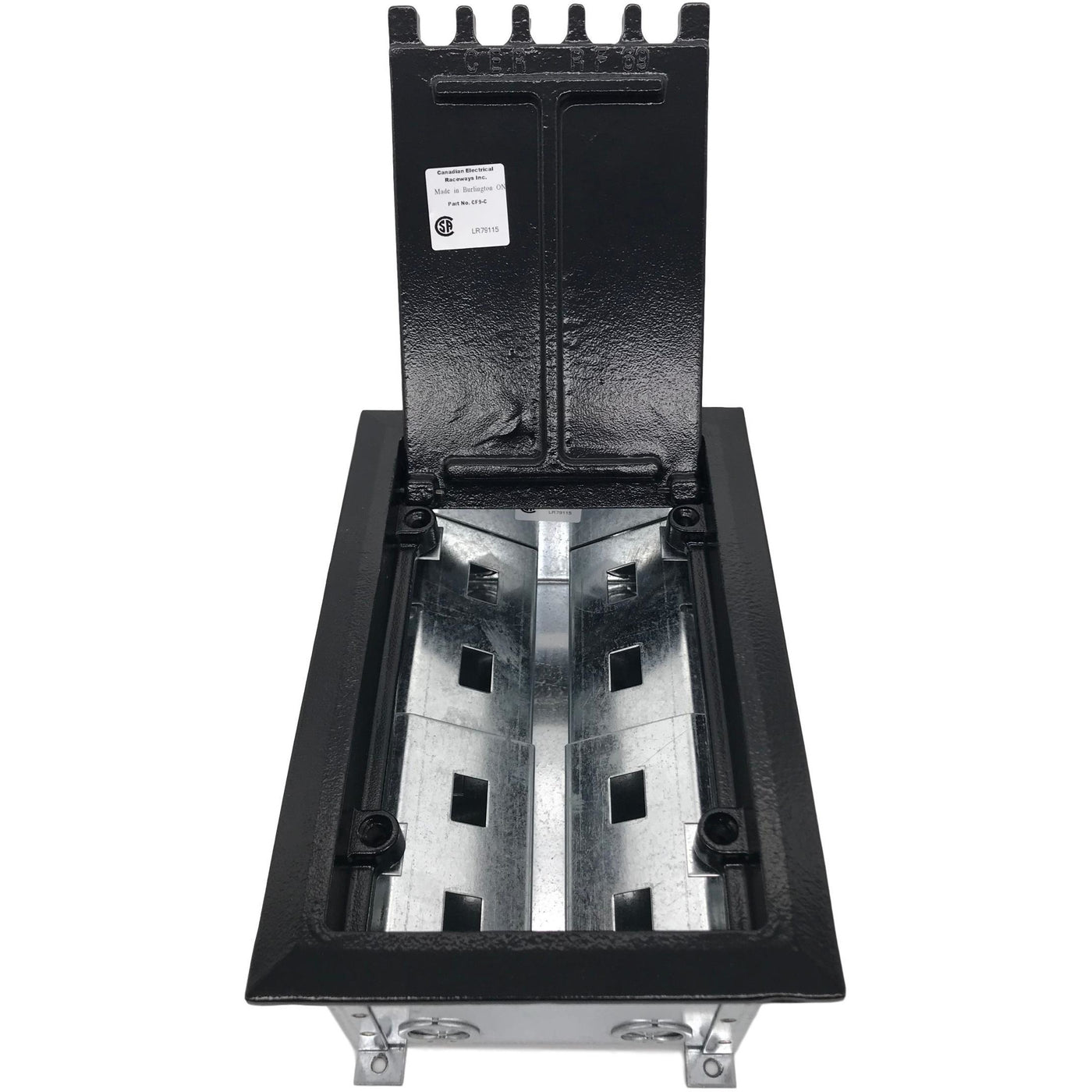

Inside the floor box your will find 8 keystone jack openings, this box gives you a multitude of choices to configure to your needs. This floor box is an affordable solution for any concrete floor installation that can accept a 4 1/8" deep box, the empty ports inside let you populate the box to fit your communication needs.

Top: Black 1/4" cast aluminum
Openings inside: 8 keystone
Hinged lid with 5 openings
Depth: 4 1/8"
Includes protective mud cap
Four leveling feet
2 knockouts on each side, 1/2" or 3/4"
Construction: 16 gauge galvanized steel

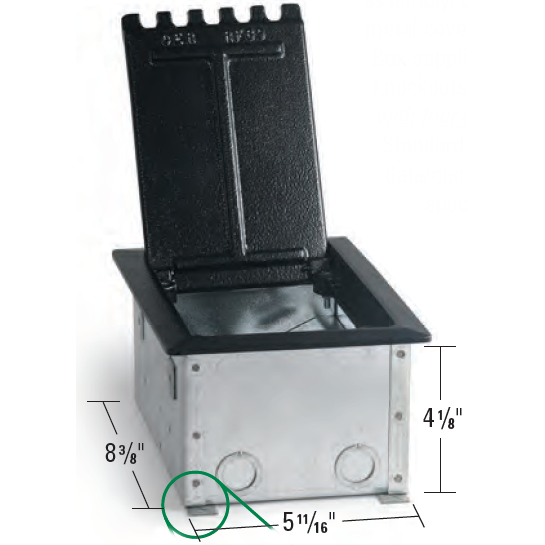

Box size: 8 3/4" L x 5 11/16" W x 4 1/8" H
Cover size: : 9 11/16" L x 6 11/16" W
Minimum pour depth: 4 3/16"
CSA approved
1 year warranty

Top: Black 1/4" cast aluminum
Openings inside: 8 keystone
Hinged lid with 5 openings
Depth: 4 1/8"
Includes protective mud cap
Four leveling feet
2 knockouts on each side, 1/2" or 3/4"
Construction: 16 gauge galvanized steel
Box size: 8 3/4" L x 5 11/16" W x 4 1/8" H
Cover size: : 9 11/16" L x 6 11/16" W
Minimum pour depth: 4 3/16"
CSA approved
1 year warranty
