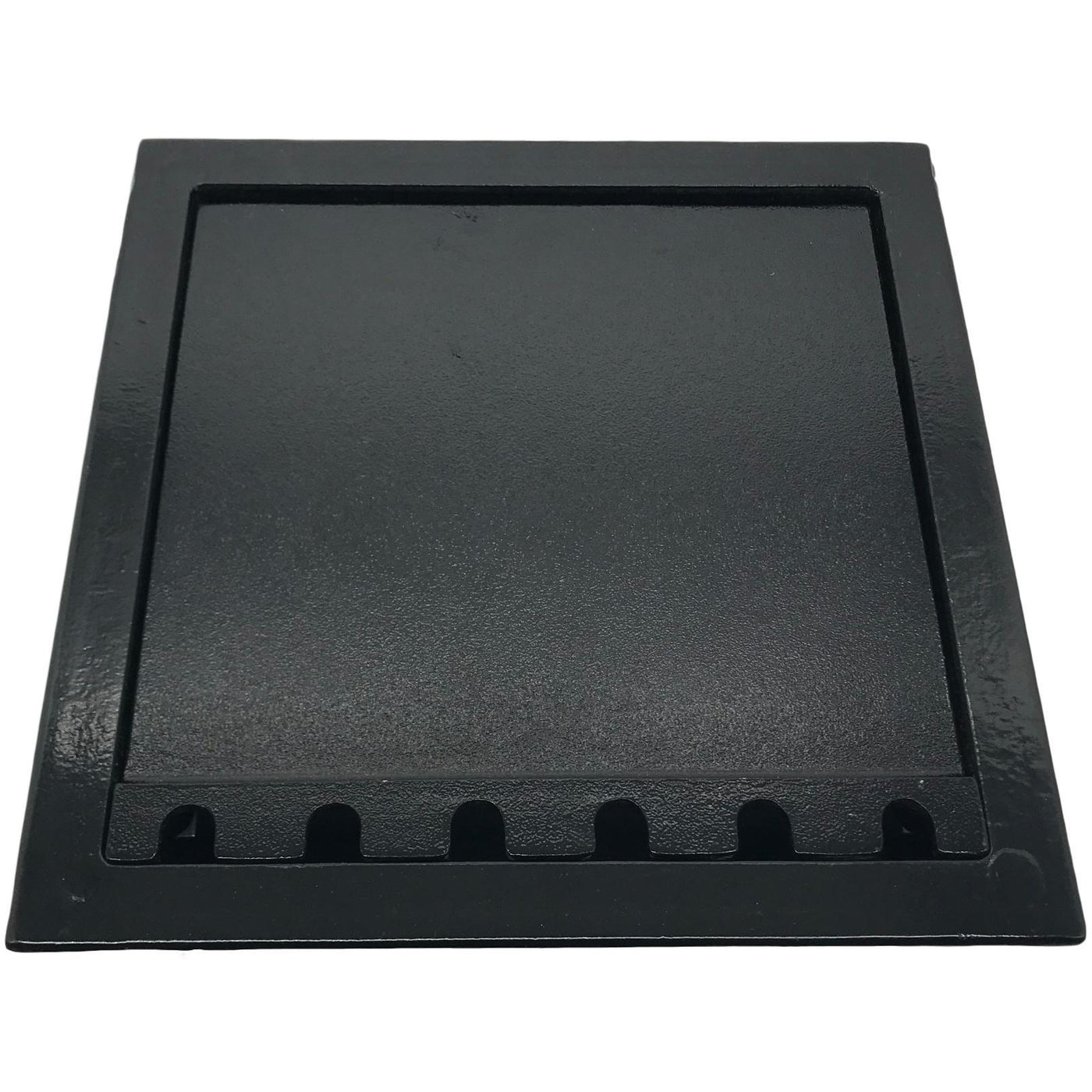

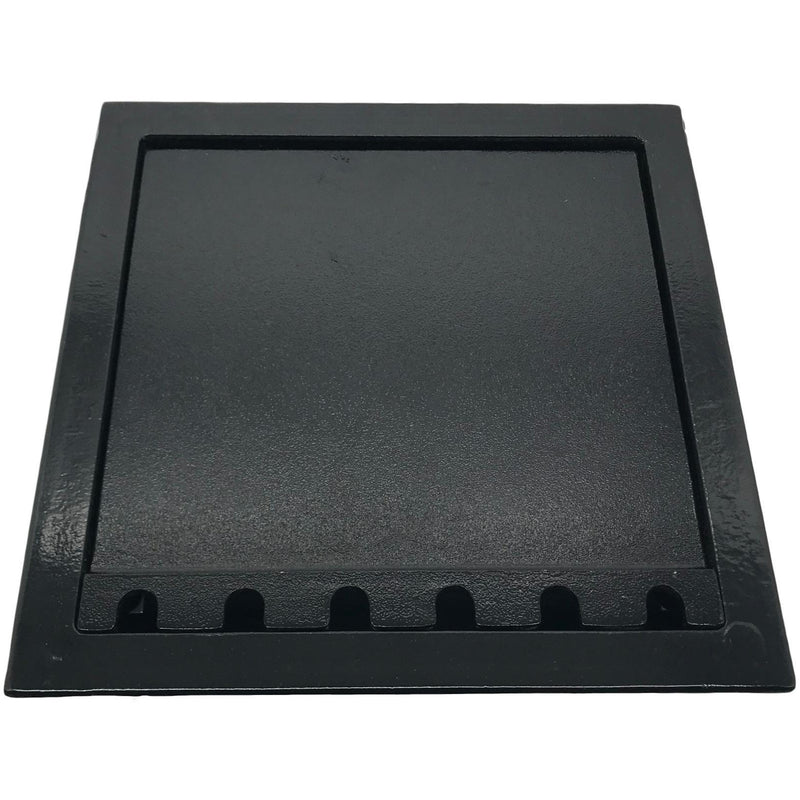

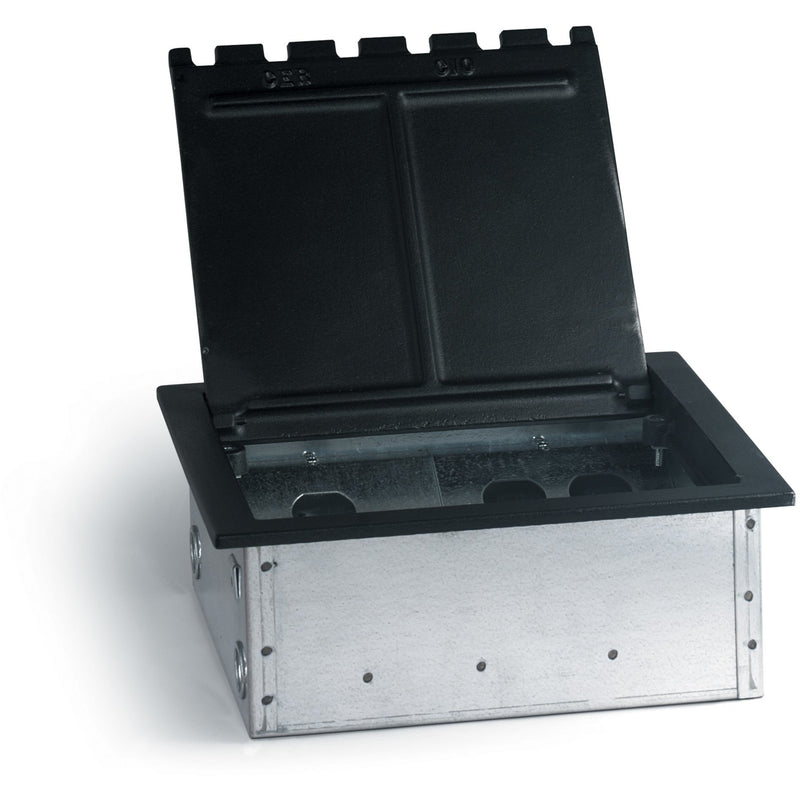

The Lew Electric RF10C6K is a floor box designed to be installed in a raised access floor, inside are openings for 4 duplex and 8 keystone jacks. The floor box is heavy duty constructed of 16 gauge galvanized steel. The lid is an attractive black color made out of 1/4" cast aluminum, there are 6 openings in the lid that allow you to pass cables through to the inside of the box while keeping the lid closed, eliminating tripping hazards. The lid can also be used to install carpet to the top of it to match the look of your room, the lid is recessed 1/4" to allow for carpet.
Easy to Install in any Wood Floor
The stage pocket floor box is a perfect choice for any wood floor, it is also easy to install. The floor box ships fully assembled and ready to install. To install cut your hole and drop in the box, then fasten to the floor through the mounting flange. When you are ready to bring in your wires there are 2 knockouts on each end of the box, the knockouts can be used as 1/2" or 3/4".
Customizable to Meet Your Needs

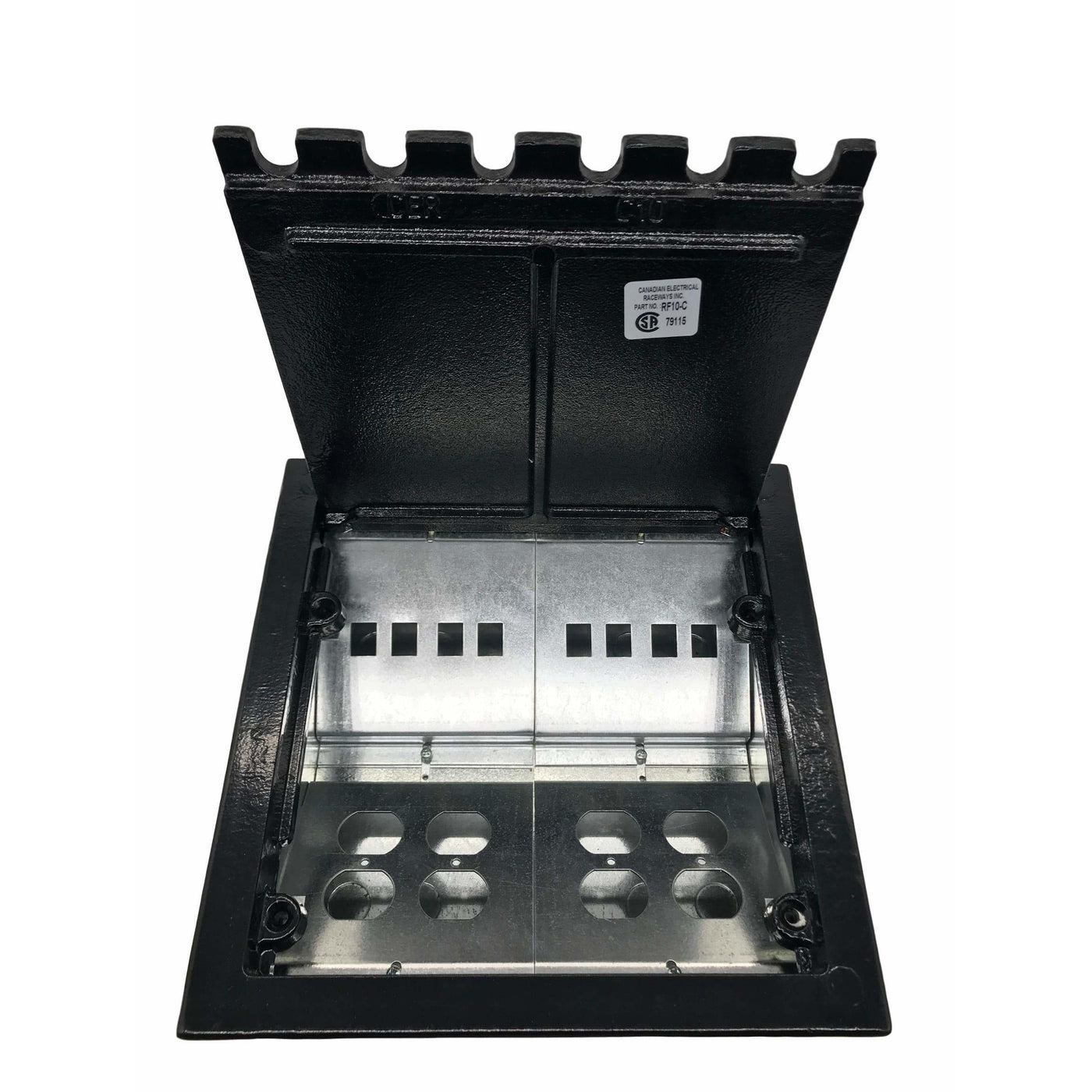

Inside the floor box your will find openings to install your 4 duplex receptacles and 8 keystone jacks. This floor box is an affordable solution for any raised access floor installation that can accept a 4" deep box that needs power and data. The empty keystone openings inside the box let you put in your own keystone jacks to meet your communication needs, the 4 duplex let you put in your own power outlets.
- Top: Black 1/4" thick cast aluminum
- Openings inside: 4 duplex, 8 keystone
- Hinged lid with 6 openings
- Depth: 4"
- 2 knockouts on each side, 1/2" or 3/4"
- Construction: 16 gauge galvanized steel

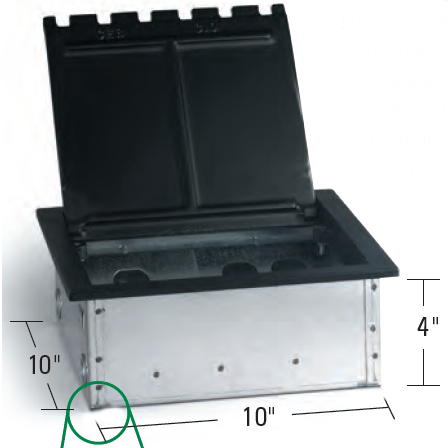

- Box size: 10" L x 10" W x 4" H
- Cover size: : 11 1/2" L x 11 1/2" W
- CSA approved
- 1 year warranty
Top: Black 1/4" cast aluminum
Openings inside: 4 duplex, 8 keystone
Hinged lid with 6 openings
2 knockouts on each side, 1/2" or 3/4"
Construction: 16 gauge galvanized steel
Box size: 10" L x 10" W x 4" H
Cover size: : 11 1/2" L x 11 1/2" W
1 year warranty
