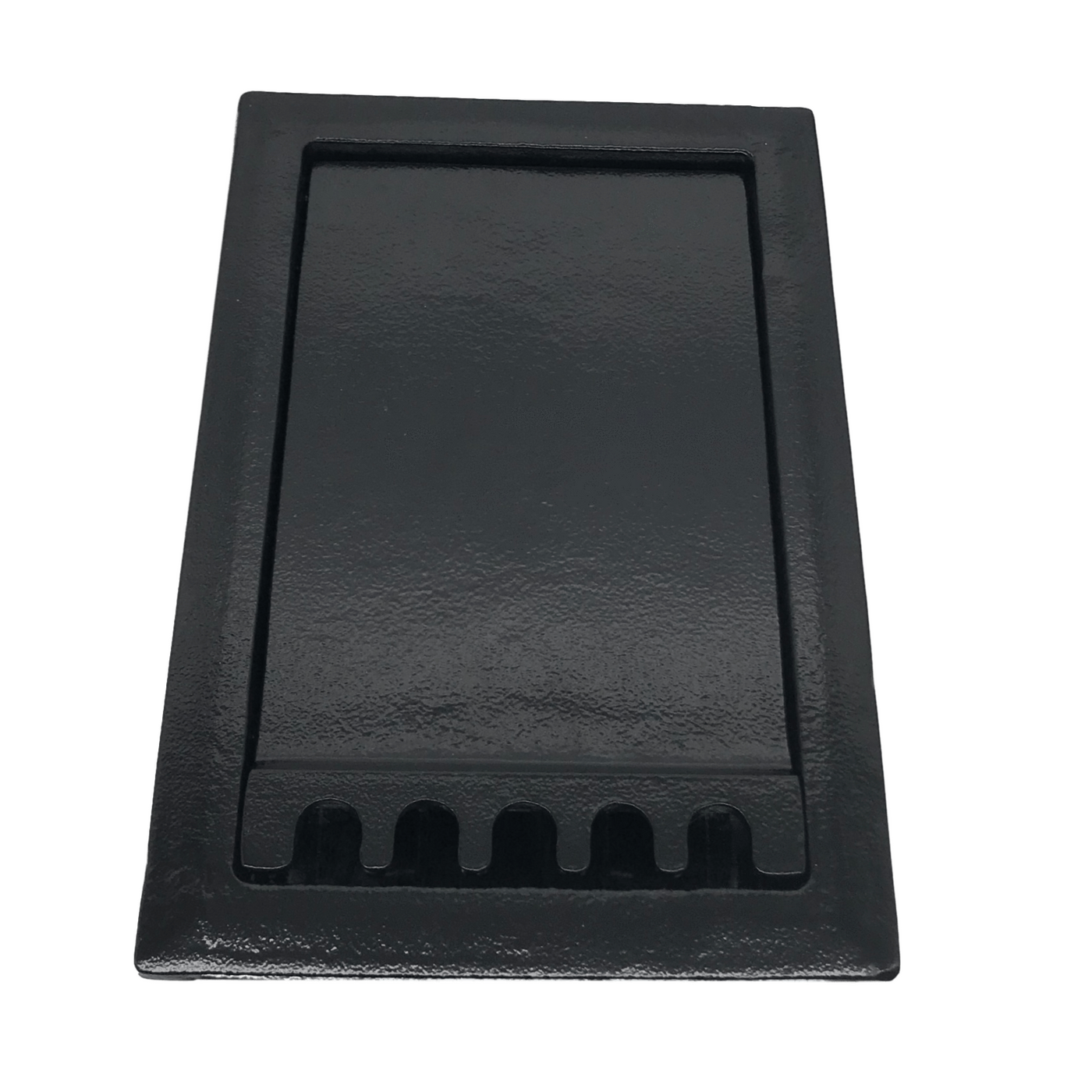

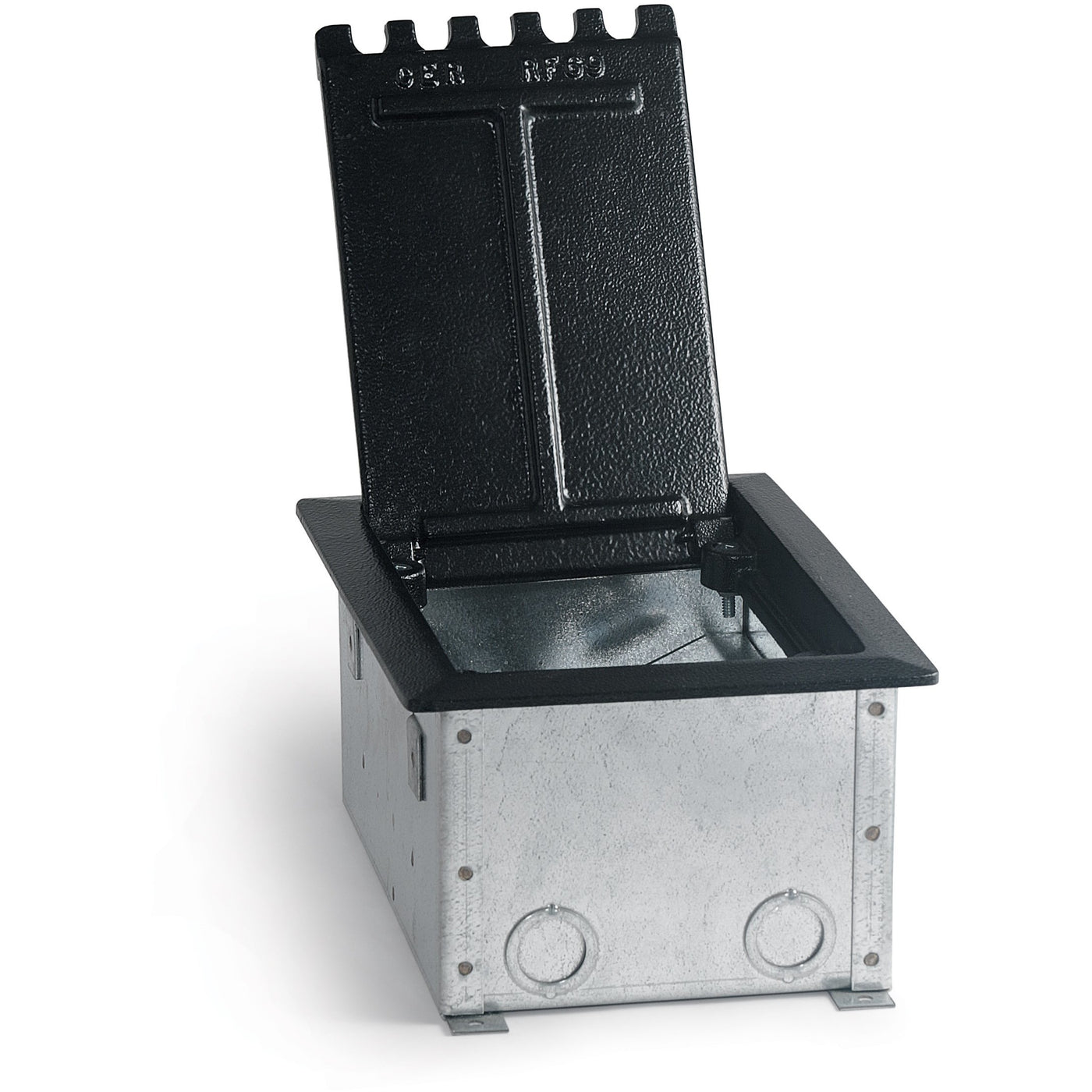

The Lew Electric CF9C2F is a floor box designed to be installed in a poured concrete floor, inside are openings for 2 duplex power outlets and 4 keystone jacks. The floor box is heavy duty constructed of 16 gauge galvanized steel. The lid is an attractive black color made out of 1/4" cast aluminum, there are 5 openings in the lid that allow you to pass cables through to the inside of the box while keeping the lid closed eliminating tripping hazards. The lid can also be used to install carpet to the top of it to match the look of your room, the lid is recessed 1/4" to allow for carpet.

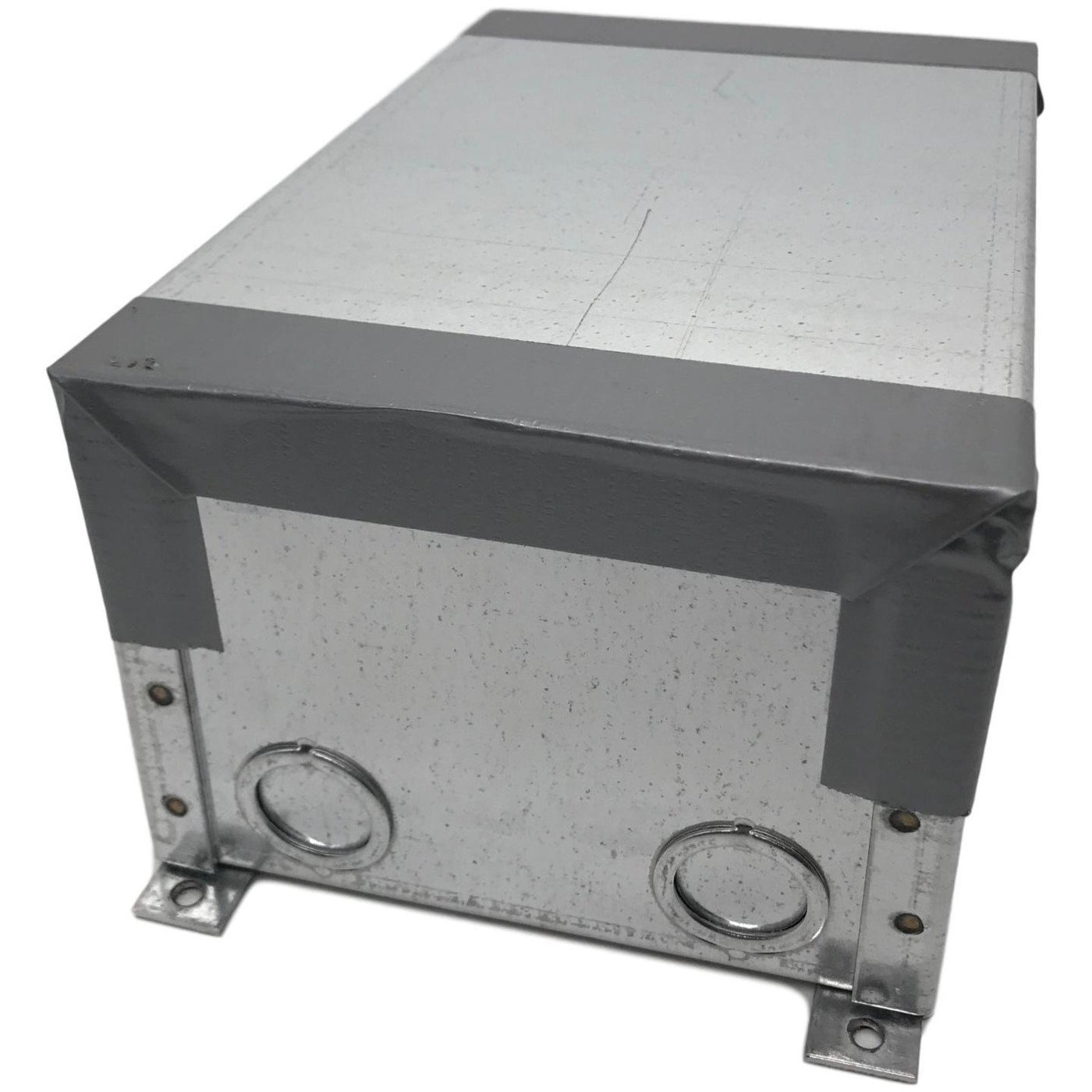

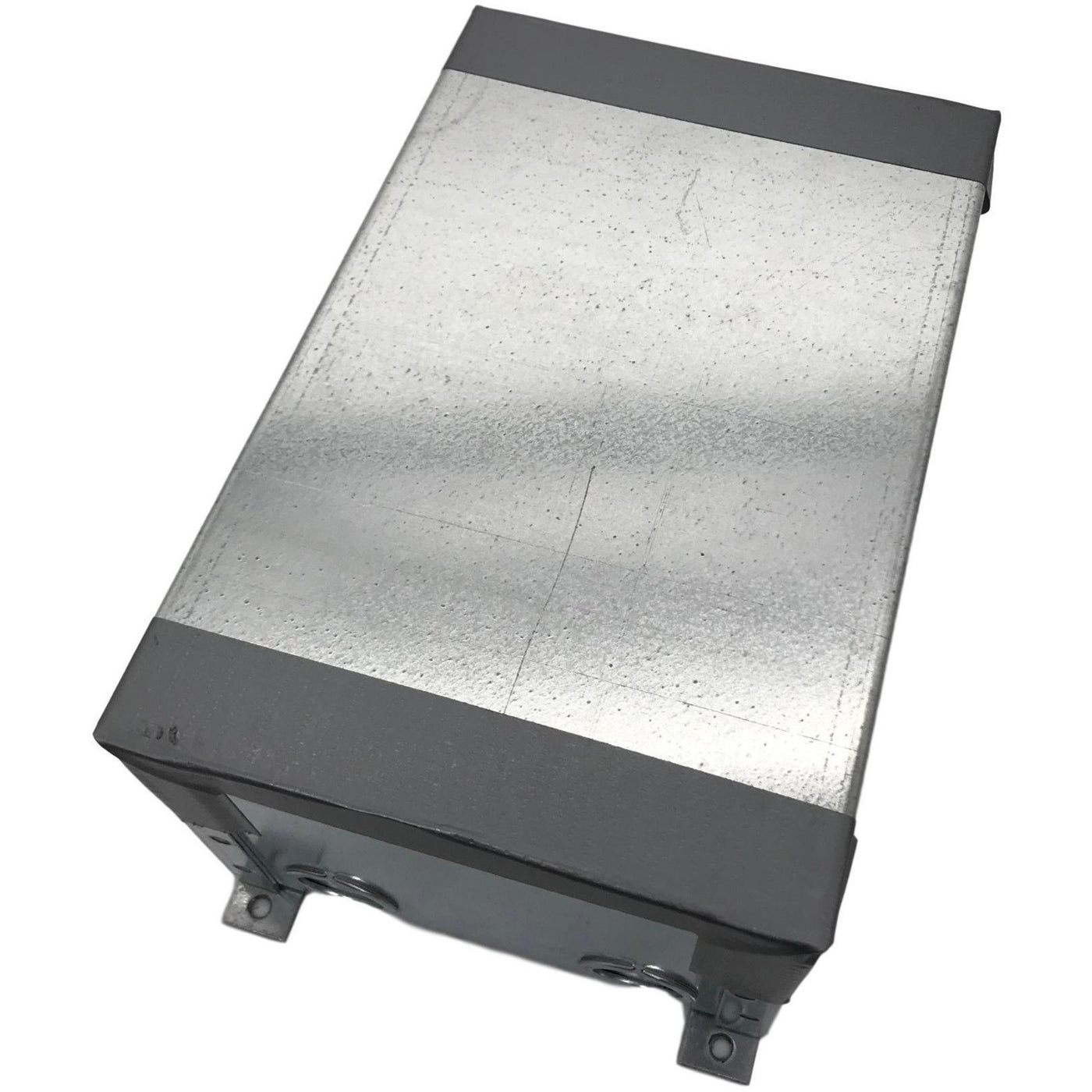

Ships Safe - Construction Cover Pre-Installed
To keep the floor box from getting damaged during construction the box ships with a construction cover pre-installed that can be used during your concrete pouring. On the bottom of the box are four leveling feet allowing the installer to get the box perfectly level before concrete is poured. On each end of the box are 2 knockouts to run your conduit to, the knockouts can be used as 1/2" or 3/4".
Affordable Concrete Floor Box Solution

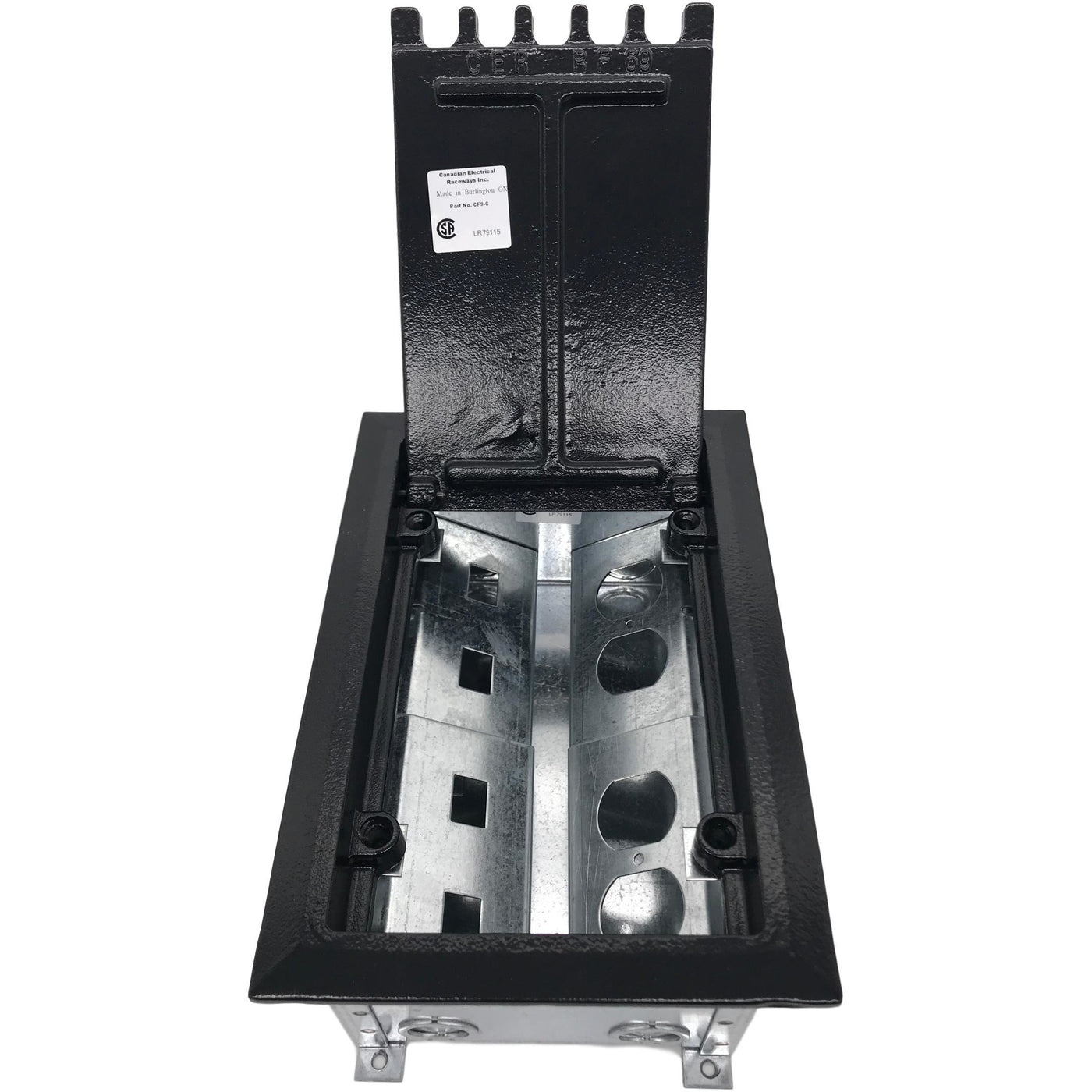

Inside the floor box your will find openings to install your 2 duplex power receptacles, and 4 keystone ports. This floor box is an affordable solution for any concrete floor installation that can accept a 4 1/8" deep box, the empty ports inside let you populate the box to fit your power and communication needs.
- Top: Black 1/4" cast aluminum
- Openings inside: 2 duplex, 4 keystone
- Hinged lid with 5 openings
- Depth: 4 1/8"
- Includes protective mud cap
- Four leveling feet
- 2 knockouts on each side, 1/2" or 3/4"
- Construction: 16 gauge galvanized steel

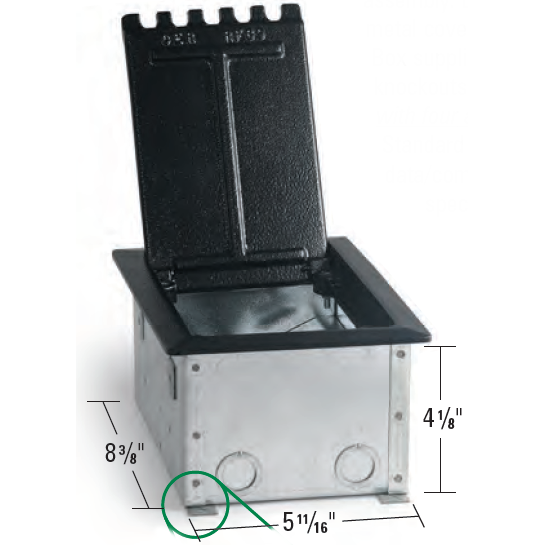

- Box size: 8 3/4" L x 5 11/16" W x 4 1/8" H
- Cover size: : 9 11/16" L x 6 11/16" W
- Minimum pour depth: 4 3/16"
- CSA approved
- 1 year warranty
Top: Black 1/4" cast aluminum
Openings inside: 2 duplex, 4 keystone
Hinged lid with 5 openings
Depth: 4 1/8"
Includes protective mud cap
Four leveling feet
2 knockouts on each side, 1/2" or 3/4"
Construction: 16 gauge galvanized steel
Box size: 8 3/4" L x 5 11/16" W x 4 1/8" H
Cover size: : 9 11/16" L x 6 11/16" W
Minimum pour depth: 4 3/16"
1 year warranty
