Recessed Floor Plate w/ Box, 4 Port Keystones, 2 Screw Plugs - Dark Bronze

  |   Q&A

$96.00

Free shipping on orders over $99

Part #: SWB-2-DB-T
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

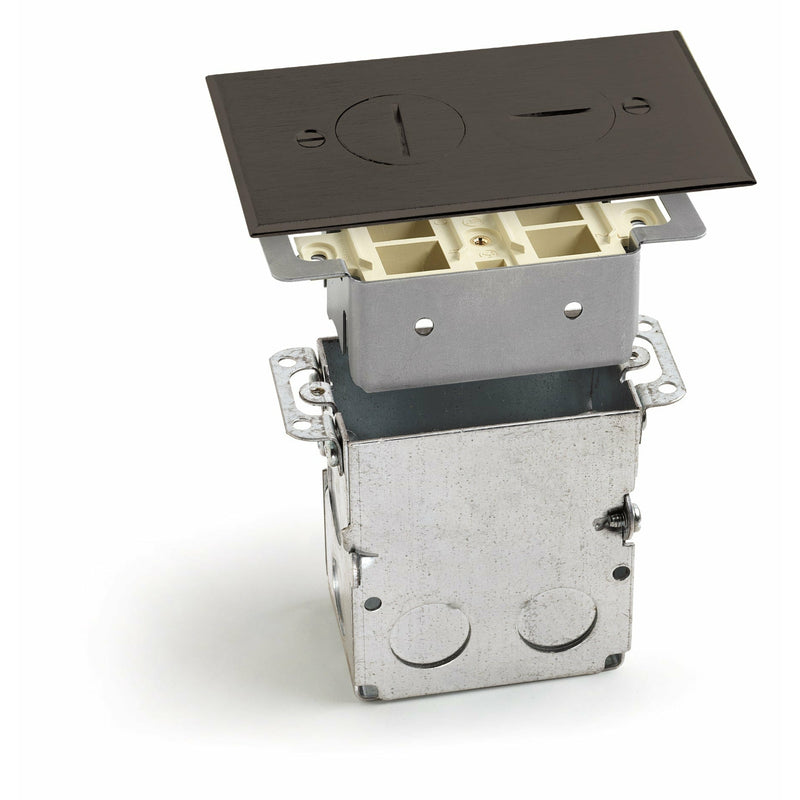

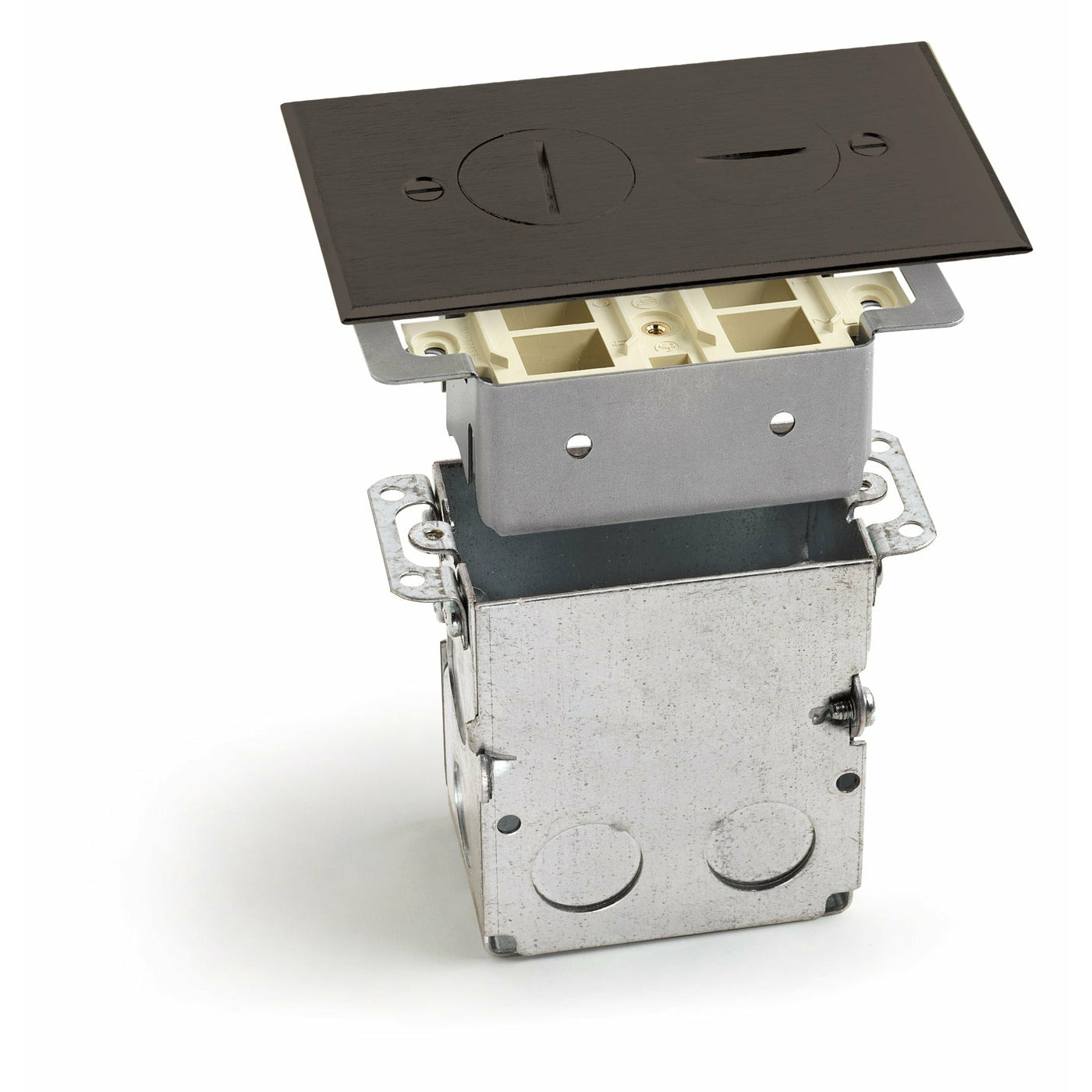

The Lew Electric SWB-2-DB-T is a recessed floor plate with brass cover, also included is the back box for your 1/2" conduit connections.  Inside the floor box is an empty 4 port keystone plate, add in whatever keystone connections you like. The sleeve in the box is adjustable up to 3/4" to accommodate any floor making installation a snap, screws are included to attach the plate to the receptacle box. The box may be attached directly to the subfloor or routed into a finished floor. The cover has two screw plugs for access to the connections. The box features a watertight assembly, there is a durable 1/16" neoprene rubber gasket that goes between the receptacle and plate. The box is UL listed, and the receptacle is UL listed and meets heavy duty requirements for display receptacles. This floor box is a simple and economical solution to provide your power in a small and attractive plate.

Specifications:

  • Plate: 1/8" dark bronze
  • Empty 4 port keystone plate
  • 2 screw plugs
  • Adjustable up to 3/4"
  • Attach to floor or route into finished floor
  • Includes 1/16" neoprene rubber gasket
  • Box UL # E345966
  • Outlet UL # E333616
  • Meets NEMA WD1-1983 requirement
  • Several knockouts for conduit
  • Includes plate screws
  • Cover size:  4 5/8" x 2 7/8"
  • Back box size:  3"L x 2"W x 3.5"H
  • Cutout size: Can't exceed 2 1/8" x 3 1/2"
  • Capacity:  18 cubic inches
  • Warranty:  1 year

Lew Electric SWB-2-T Installation Instructions (PDF)

Plate: 1/8" dark bronze
Empty 4 port keystone plate
2 screw plugs
Adjustable up to 3/4"
Attach to floor or route into finished floor
Includes 1/16" neoprene rubber gasket
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  4 5/8" x 2 7/8"
Back box size:  3"L x 2"W x 3.5"H
Cutout size: Can't exceed 2 1/8" x 3 1/2"
Capacity:  18 cubic inches
Warranty:  1 year
