6" Round Poke Thru Core Drill Flush Box, 4 Power, 4 Keystone, 1 Hole - Stainless

  |   Q&A

$653.00

Free shipping on orders over $99

Part #: MOI6-REC-P4-C4-AV1.5-SS-AHC-CED-10
Vendor: Lew Electric
1 in stock. Additional units will be made to order.
Maximum quantity available reached.

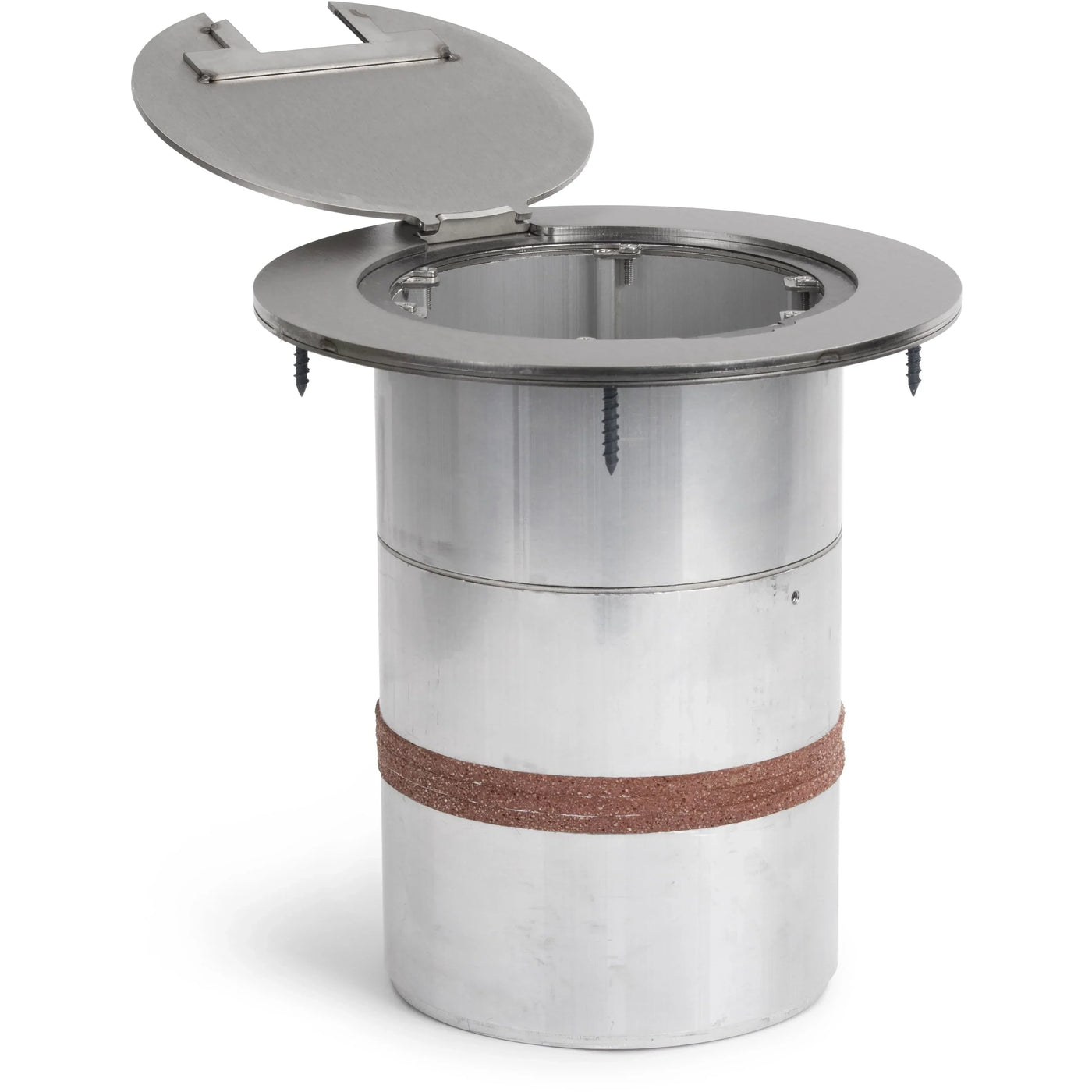

The Lew Electric MOI6-REC-P4-C4-AV1.5-SS-AHC-CED-10 is a 6" core drill poke-through floor box that provides easy access to power, voice, and data connections. The attractive appearance and innovative design create optional flexibility and functionality. The box is completely enclosed with partitioned compartments for power and data.

Recessed Connections and 180 Degree Lid with Trapdoor Cable Pass-Thru

The connections are down low in the box (2.75") so the cables can be plugged in and the lid closed. This eliminates tripping hazards because there are no plugs sticking above the surface of the ground. The hinged lid also opens 180 degrees, it can be folded back flat against the ground if desired.

***The box comes with 4 power plugs, one 1.5" hole, and 4 keystone openings (keystones not included).***

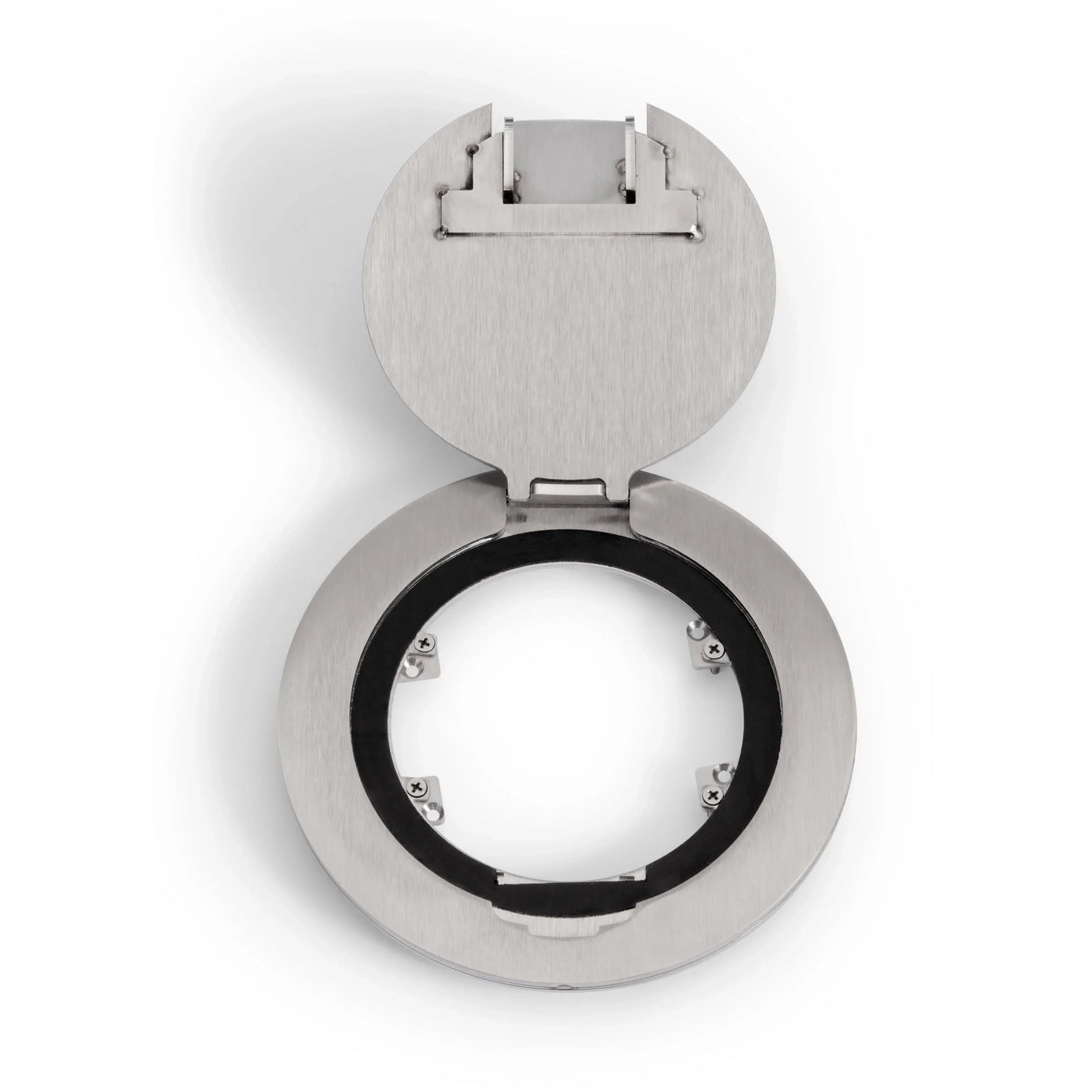

There is a small trap door in the stainless steel cover allowing cables to pass through the cover while the lid is closed.

UL 2 Hour Fire Rating and Scrub Water Rated

The box features a 2-hour fire rating and is UL listed for the USA, and cUL listed for Canada. The cover is also UL 514C scrub water rated.

Quick and Easy Installation

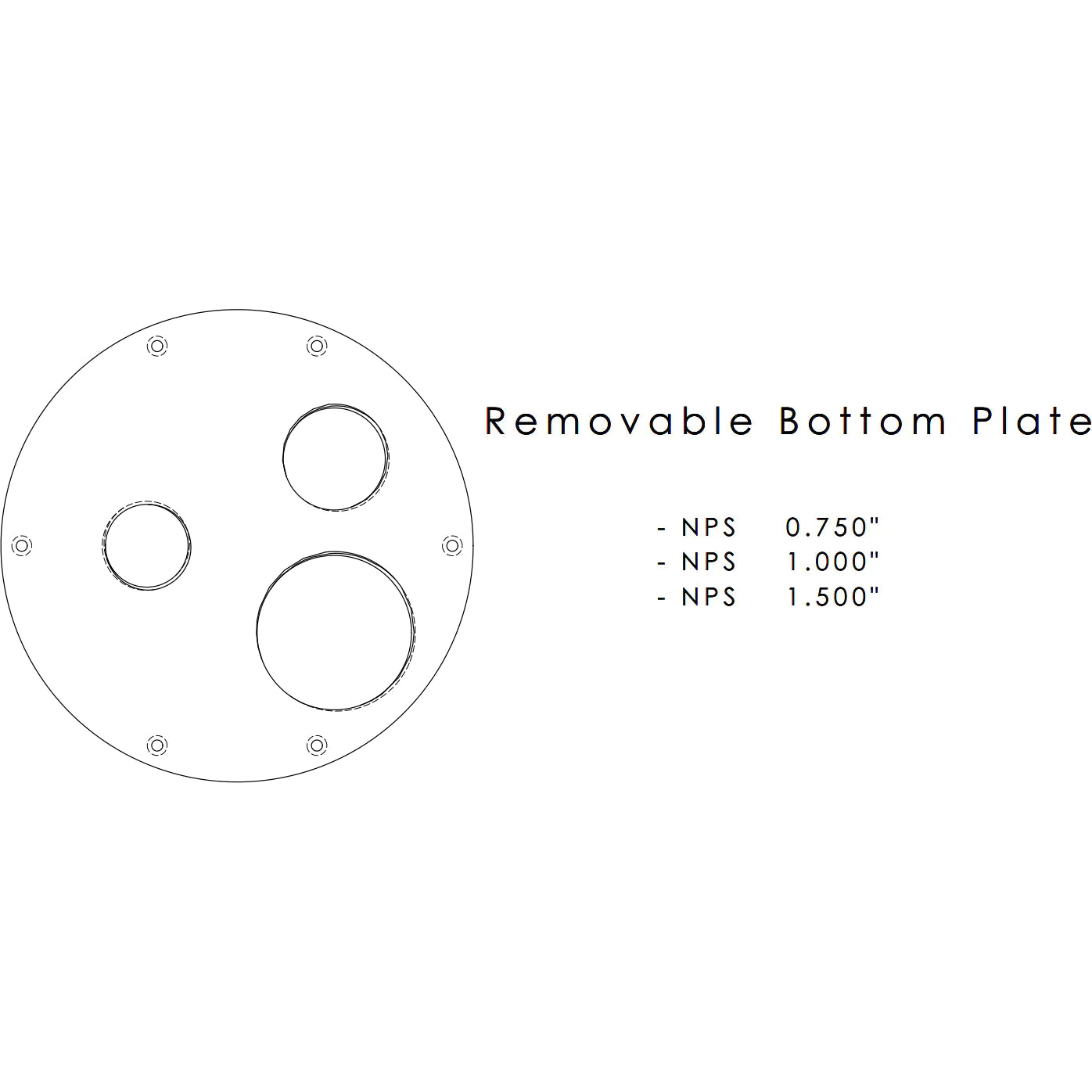

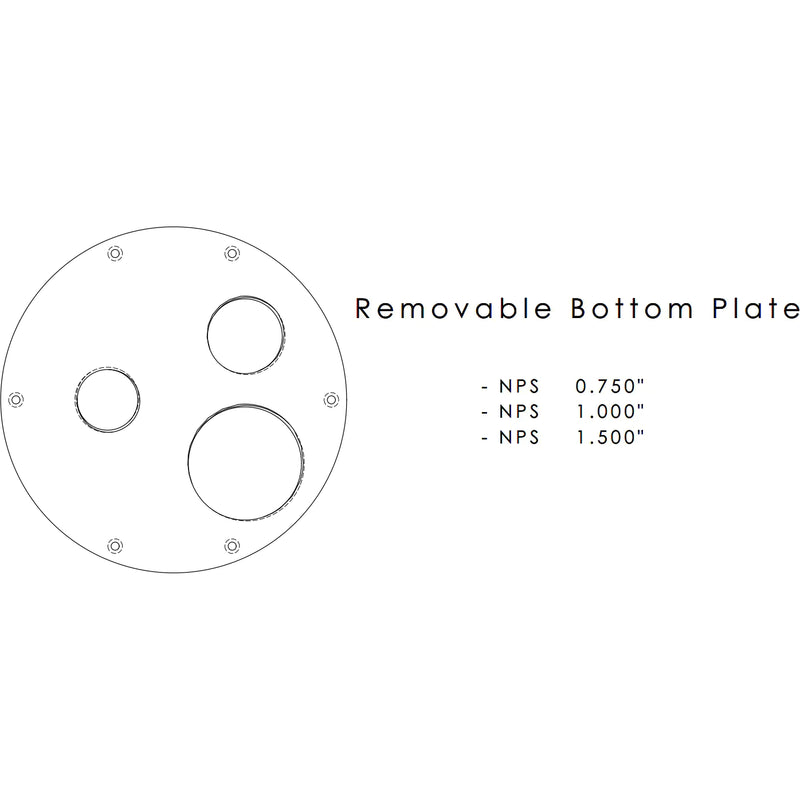

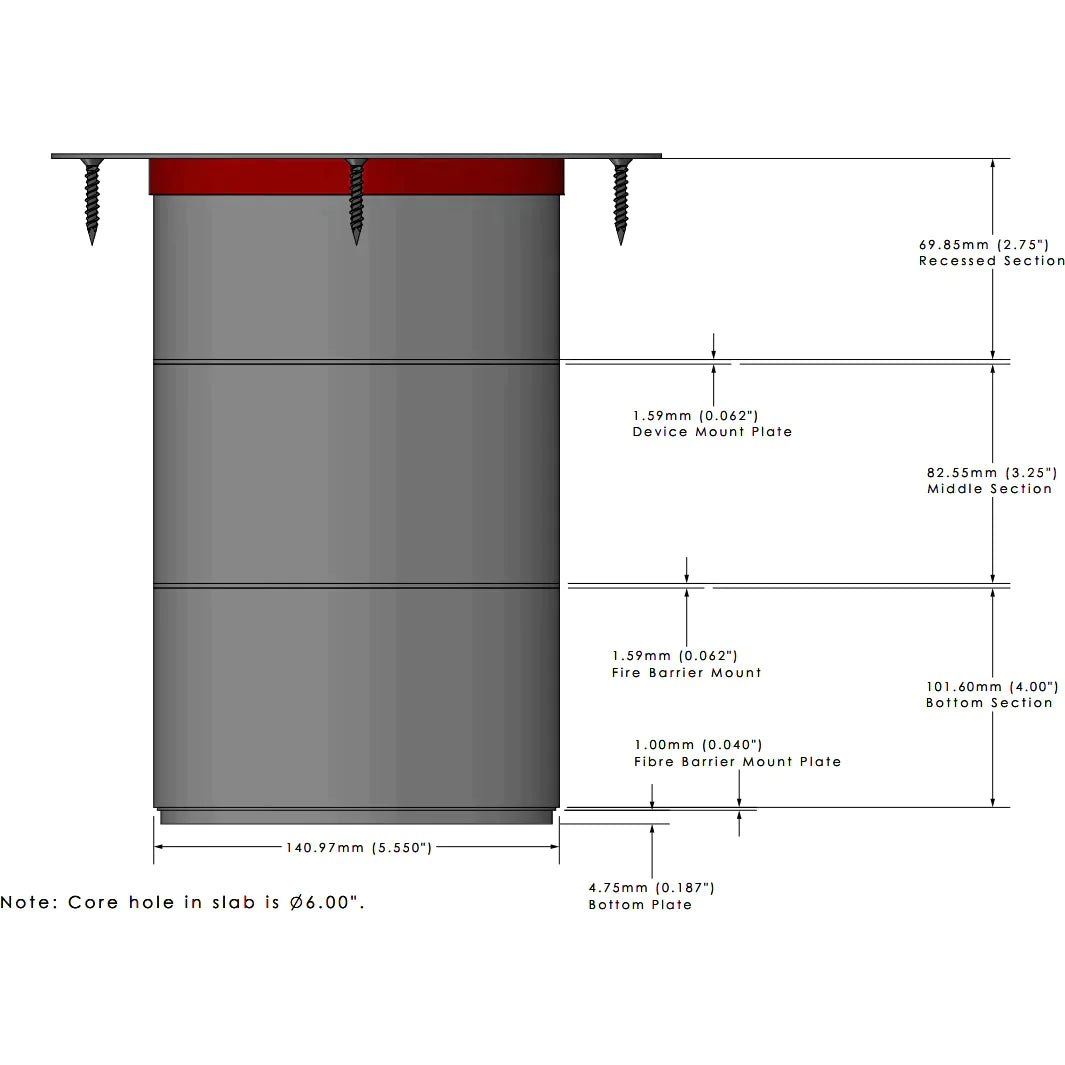

The box installs in a hole size ranging from 5.75" to 6", and seals to ensure fire separation and structural integrity. Simply use the included Tapcon screws to secure the cover into the concrete. The box is 10" in depth and the cover is 6mm thick. The 6mm thick cover is perfect for 1/4" carpet or another flooring to create a flush look. The bottom plate is removable and has hole sizes of .75", 1", and 1.5".

Specifications:

  • Recessed connections eliminate tripping hazards

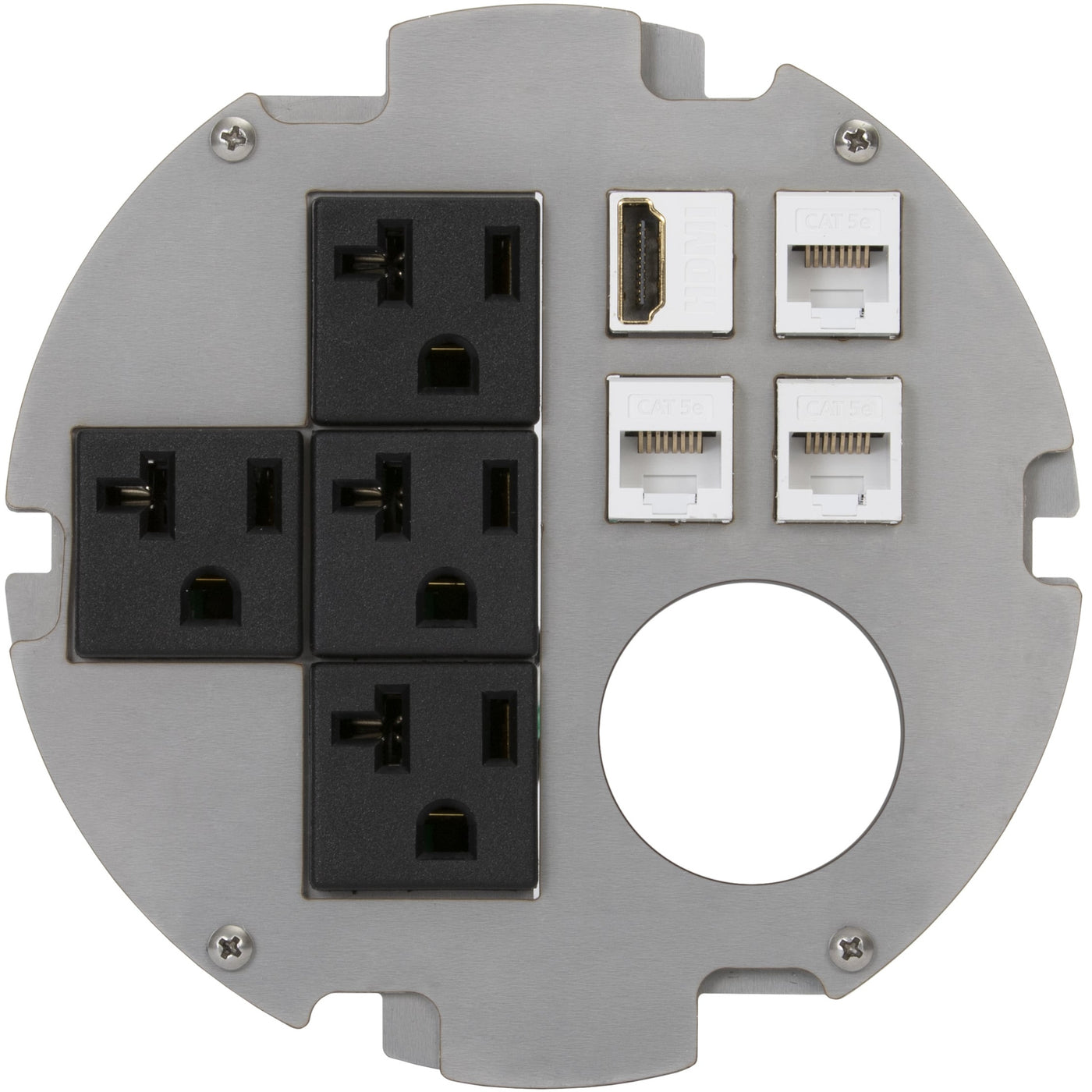

  • Connections: 4 power, 4 keystone openings, 1.5" hole
  • Cover: Stainless steel
  • Cable pass-through door in the cover
  • Lid hinges 180 degrees
  • Totally enclosed and partitioned compartments for power and data
  • UL 2-hour fire rating for USA and Canada
  • Depth: 10 inches
  • Installs in 5.75" to 6" round hole
  • 8" cover size, 6mm thick
  • Completely flush with 1/4 inch carpet or other floorings
  • Fast, simple installation with included Tapcon screws
  • Can be installed through the floor before or after carpet installation
  • CSA approved for Canada, # 212271
  • Warranty:  1 year

Lew Electric MOI6-REC Installation Instructions (PDF)
Fire Rating UL Certificate - USA (PDF)
Fire Rating UL Certificate - Canada (PDF)

Recessed connections eliminate tripping hazards
Connections: 4 power, 4 keystone openings, 1.5" hole
Cover: Stainless steel
Cable pass-through door in the cover
Lid hinges 180 degrees
Totally enclosed and partitioned compartments for power and data
UL 2-hour fire rating for USA and Canada
Depth: 10 inches
Installs in 5.75" to 6" round hole
8" cover size, 6mm thick
Completely flush with 1/4 inch carpet or other floorings
Fast, simple installation with included Tapcon screws
Can be installed through the floor before or after carpet installation
CSA approved for Canada, # 212271
Warranty:  1 year
