Waterproof Outdoor 6 Port Floor Box with Push Button - Stainless Steel

35 reviews   |   Q&A

$305.00

Free shipping on orders over $99

Part #: OB-1-SP-6PORT
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

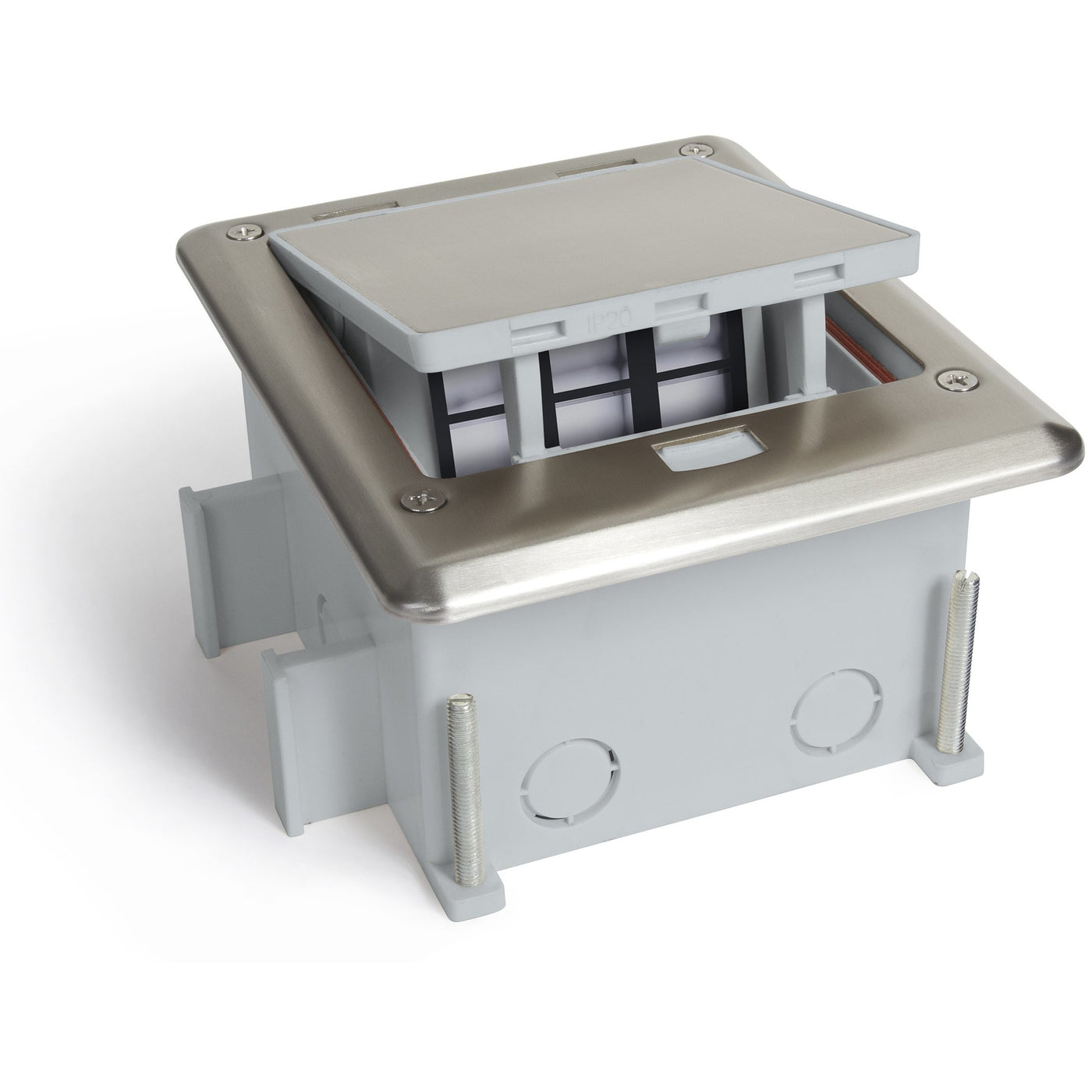

The Lew Electric OB-1-SP-6PORT is an outside waterproof rated pop-up floor box, for outdoor ground installations. The design and installation make the box weatherproof against any type of climate, providing a safe exterior box for data.

Waterproof Stainless Steel Top

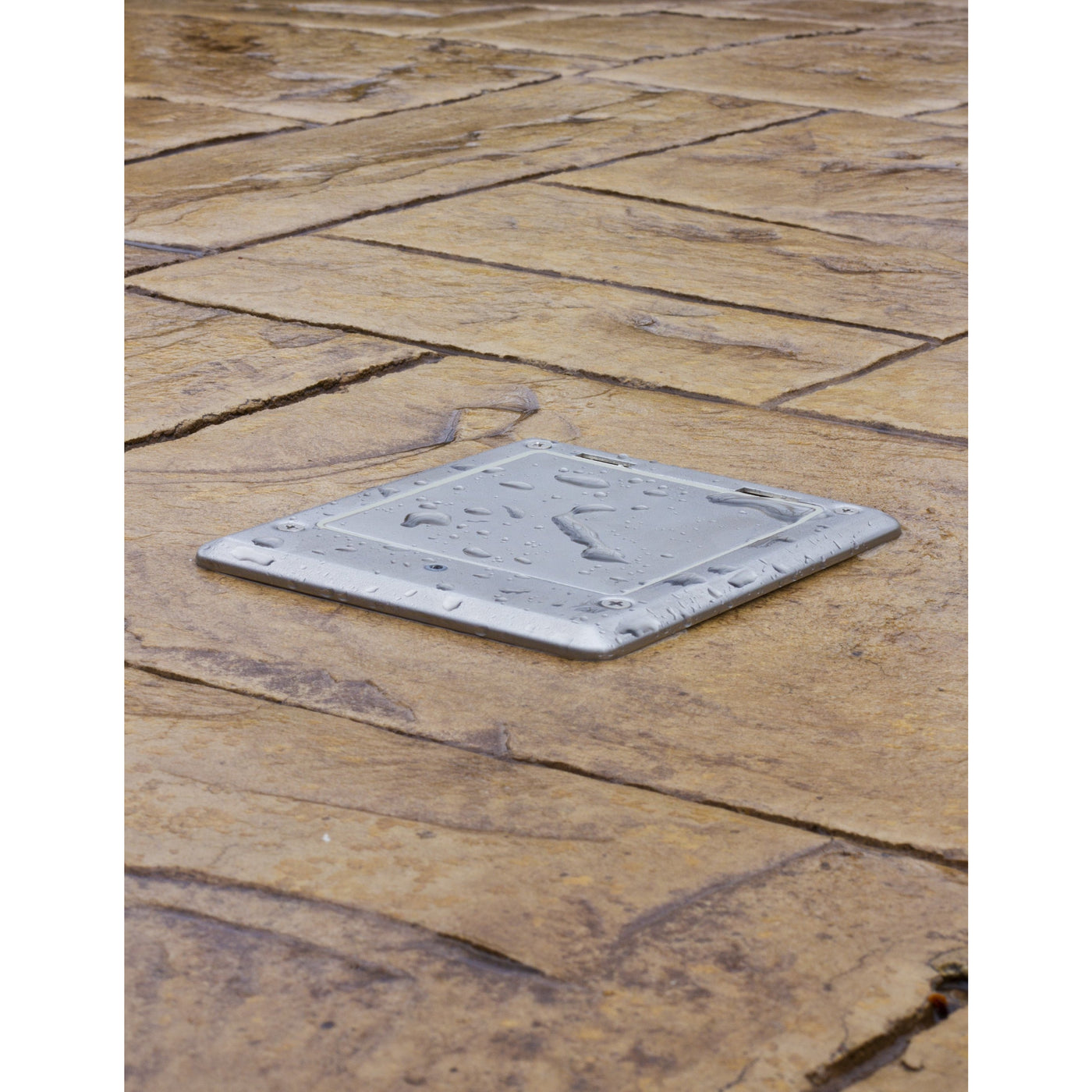

In the closed position the stainless steel top features an IP66 water protection level making it perfect for outdoor applications including; patios, pools, decks, and outdoor kitchens. The top is also made from marine grade #316 stainless steel giving it more strength, and allowing it to withstand corrosion, pitting, and anything the outdoors can throw at it.

6-Port Keystone Plate for Data Connections

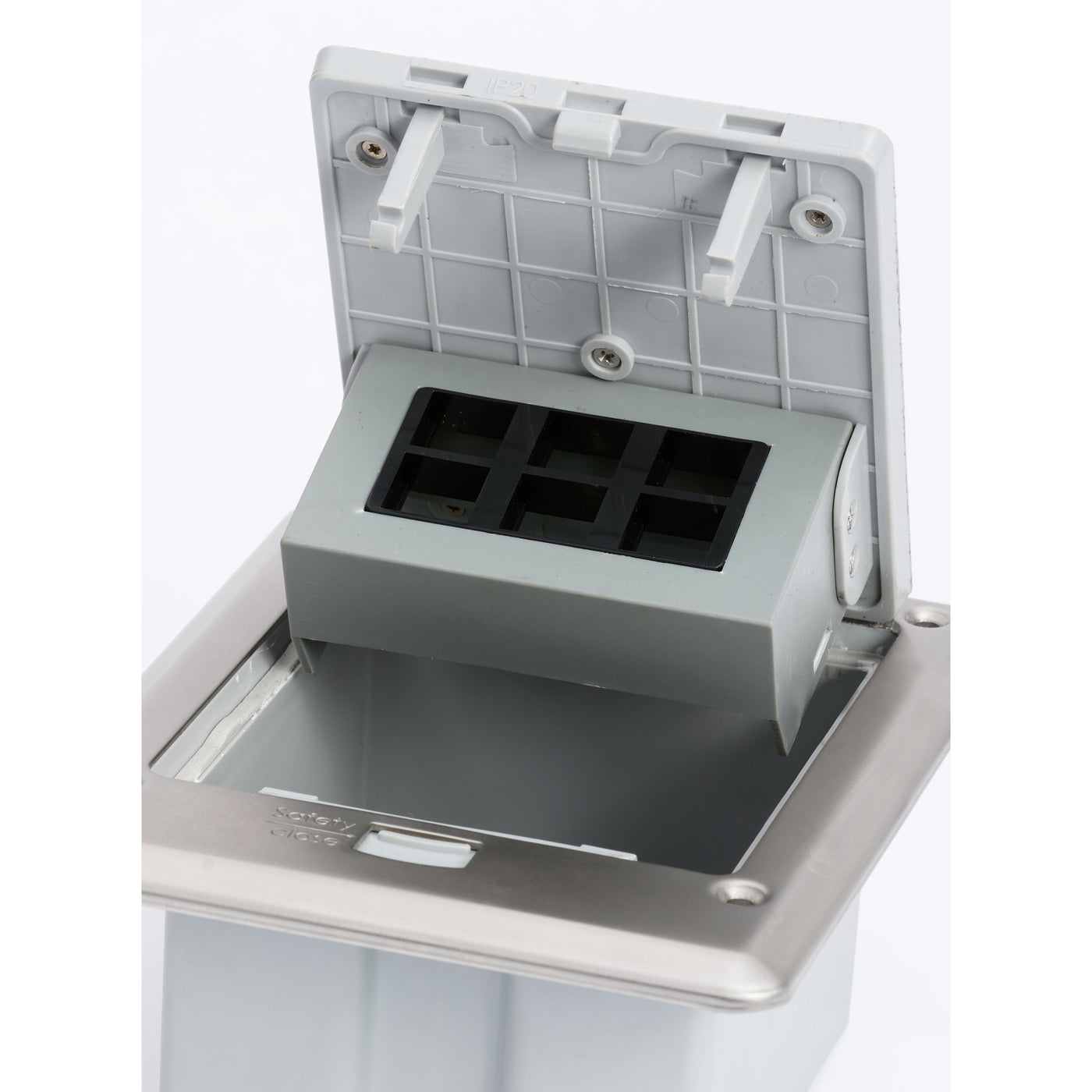

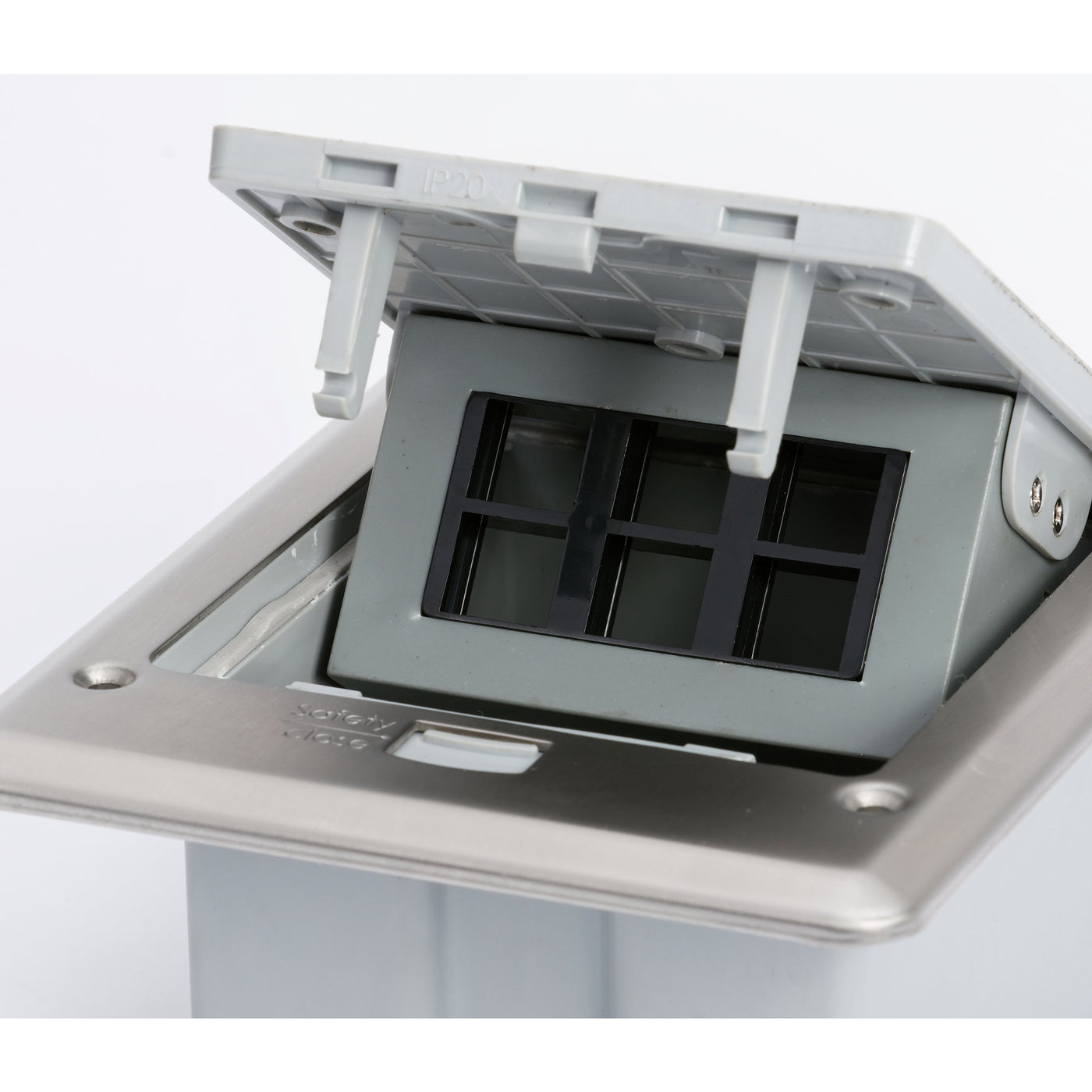

Inside the pop-up is an empty 6-port keystone plate. Use the plate to insert your own data, communication, audio, and video jacks.

Easy Push Button Opening for Pop Up Power

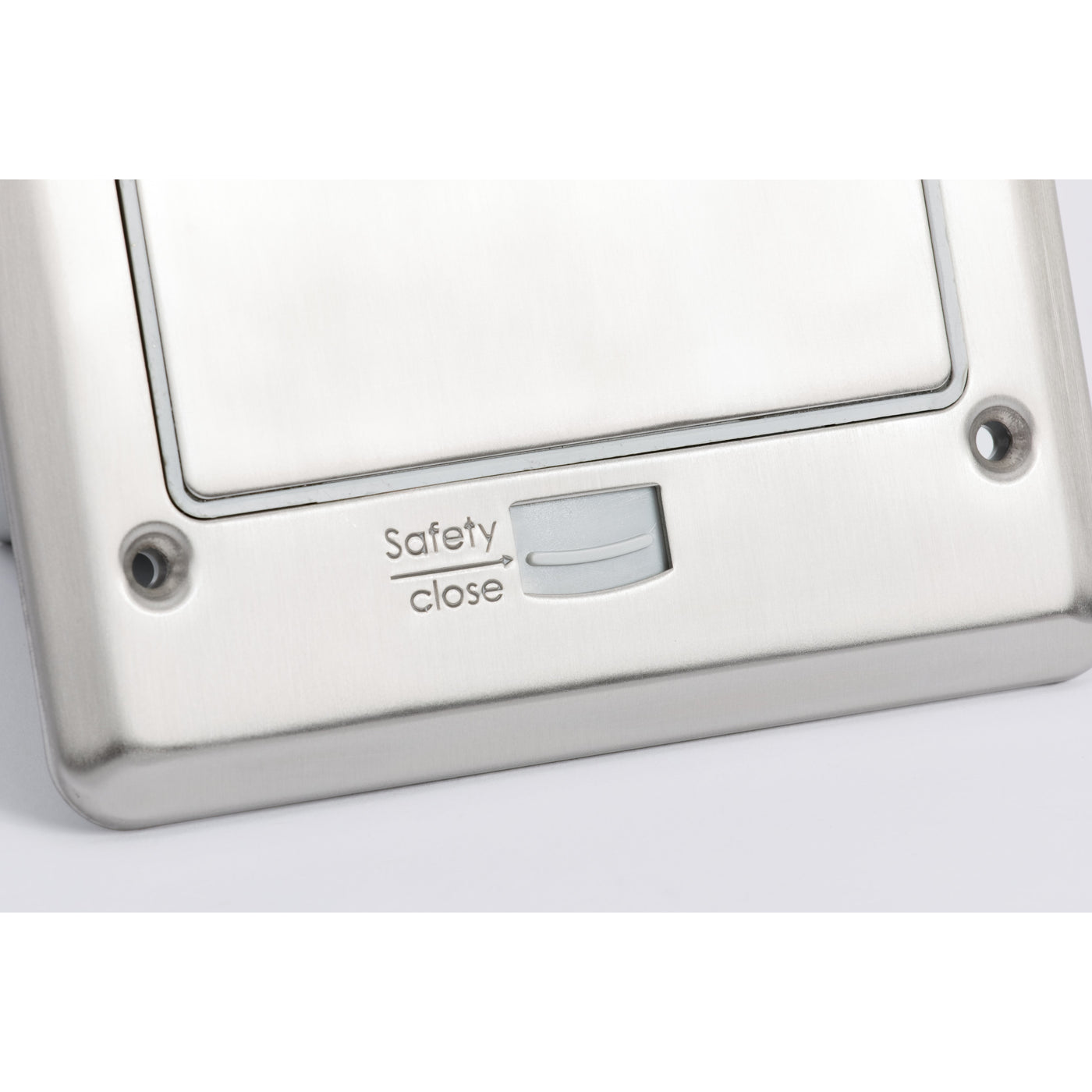

The top of this model features a quick and easy to use slide/push button for quick access. Simply push the button, and the top will pop up so you can plug in your connections. The top then stays open just over an inch, so the lid isn’t just sitting on any cords.  When you no longer need to connect, unplug your cords and close the lid shut.

Install in a Minimum of 4” of Concrete

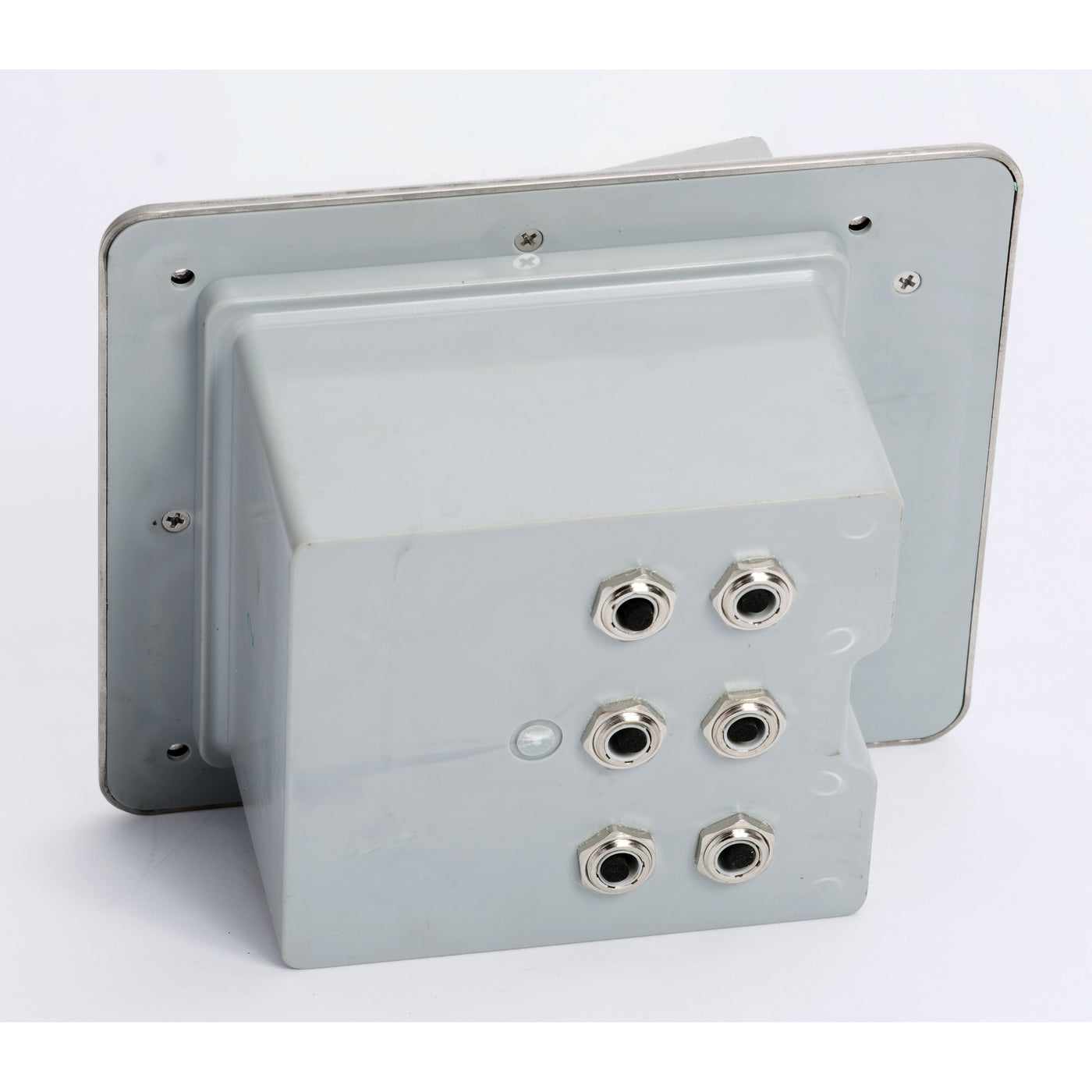

To meet code, and to obtain the waterproof rating, the pop up was designed to be installed in a minimum of 4" of concrete. While it needs to be installed in concrete, the top can sit on any outdoor material including pavers, tile, or just the concrete by itself. The unit is gangable so you can attach other units to it for increased connections. The overall height of the back box is 3 5/8", and the minimum depth can be adjusted upwards of 1 3/4". There are ten 1/2" knockouts in the back box giving you a multitude of choices to bring your wire into the box.

The Lew Electric OB-1-SP-6PORT is the only outdoor water proof floor box on the market that can supply your communication needs when installed correctly.

Must install in a minimum of 4” of concrete. Non-returnable once installed. Please watch installation video*

Specifications:

  • Material: Stainless Steel #316
  • Push button opening
  • 6 empty keystone ports
  • Insert your own keystone jacks
  • Top: 6 7/8" x 5 11/16"
  • Back box: 5 1/4" x 4 3/4"
  • For 4"+ concrete installations only
  • For outdoor or indoor use
  • Water protection: IP66 water & dust rated when closed
  • Gangable
  • Overall height of box is 3 5/8"
  • Minimum depth can be adjusted upwards of 1 3/4"
  • Ten 1/2" knockouts
  • Install in concrete, pavers, or tile
  • Perfect for patios, pools, decks, and outdoor kitchens
  • 1 year warranty

Lew Electric OB-1-SP-6PORT Install Instructions (PDF)


Material: Stainless Steel #316
Push button opening
6 empty keystone plate
Top: 6 7/8" x 5 11/16"
Back box: 5 1/4" x 4 3/4"
For 4"+ concrete installations only
For outdoor or indoor use
Water protection: IP66 water & dust rated when closed
Gangable
Overall height of box is 3 5/8"
Minimum depth can be adjusted upwards of 1 3/4"
Ten 1/2" knockouts
Install in concrete, pavers, or tile
Perfect for patios, pools, decks, and outdoor kitchens
1 year warranty

Questions & Answers

Ask a Question
  • Is there room to fit a plug into the opening?

    Yes, the lid lifts up all the way so you can plug in your power.  The lid then partially closes in place so the lid just isn't sitting on the cord.
