Waterproof Outdoor Electrical Floor Box Pop Up, Push Button - Stainless

  |   Q&A

$305.00

Free shipping on orders over $99

Part #: OB-1-SP
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

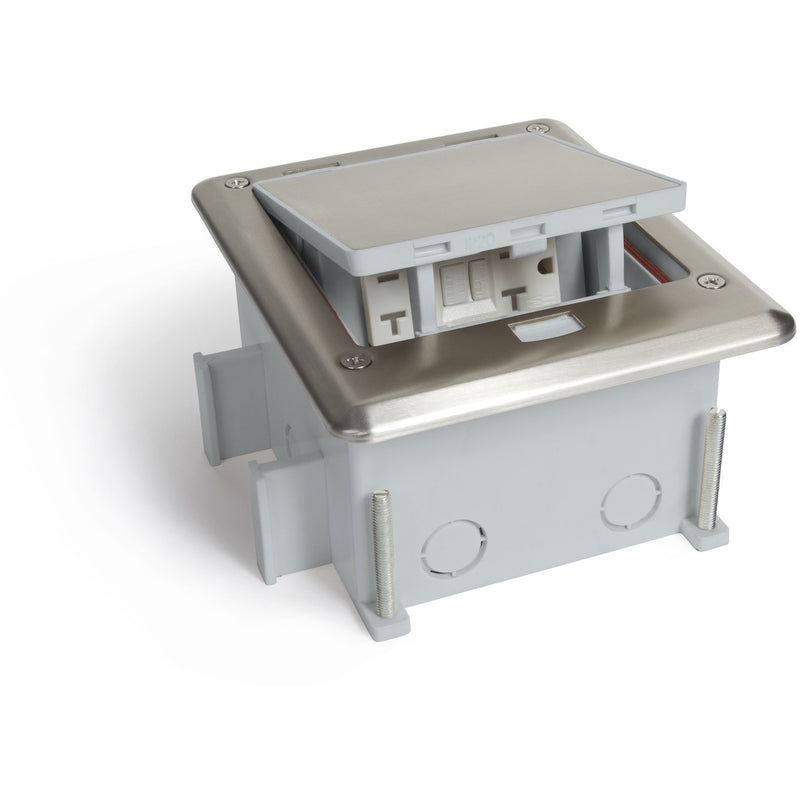

The Lew Electric OB-1-SP is an outside waterproof rated pop-up floor box, for outdoor ground installations. The design and installation make the box weatherproof against any type of climate, providing a safe exterior outlet.

Waterproof Stainless Steel Top

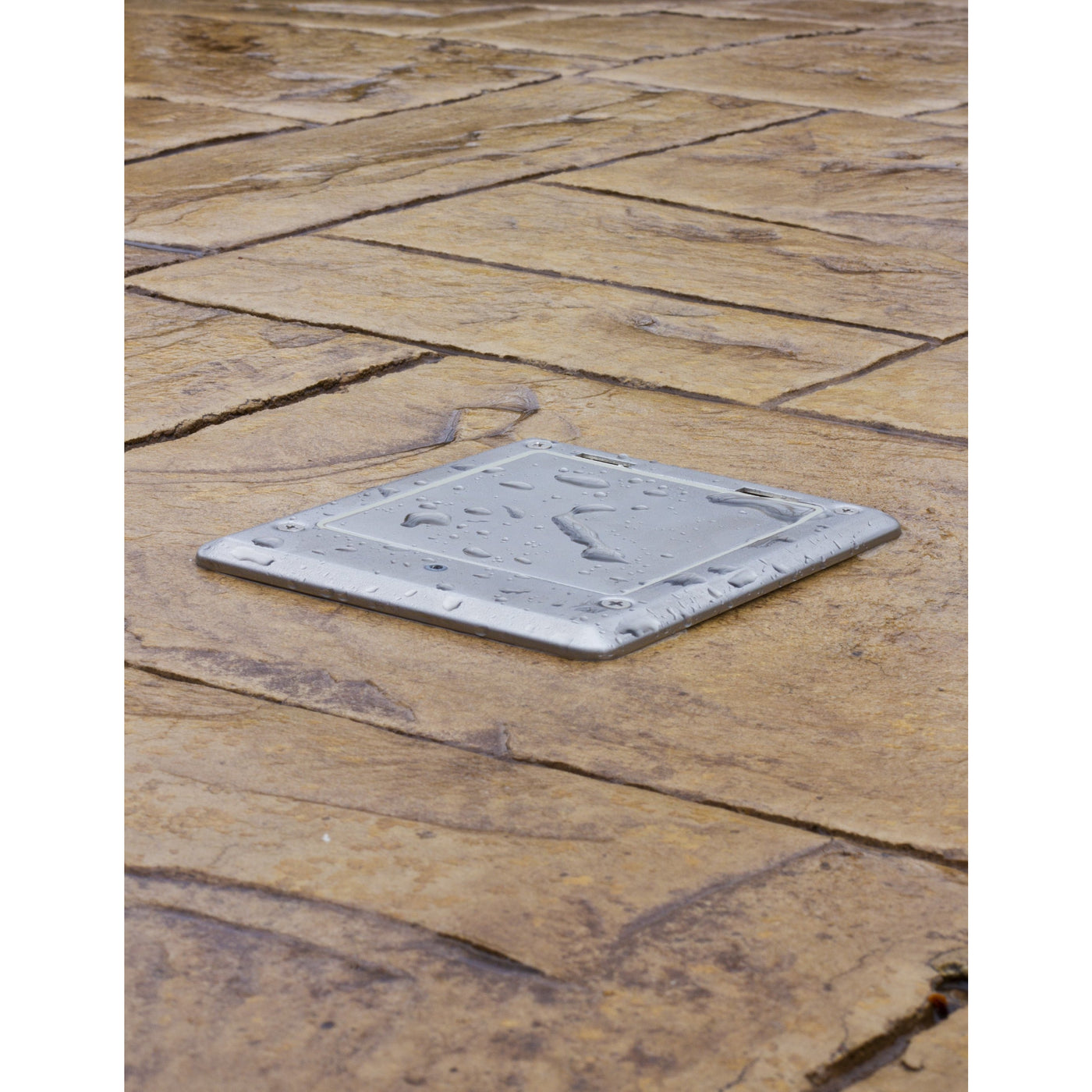

In the closed position the stainless steel top features an IP66 water protection level making it perfect for outdoor applications including; patios, yards, pools, and outdoor kitchens. The top is also made from marine grade #316 stainless steel giving it more strength, and allowing it to withstand corrosion, pitting, and anything the outdoors can throw at it.

20 Amp GFCI Weather Resistant Outlet with Tamper Resistant Plugs

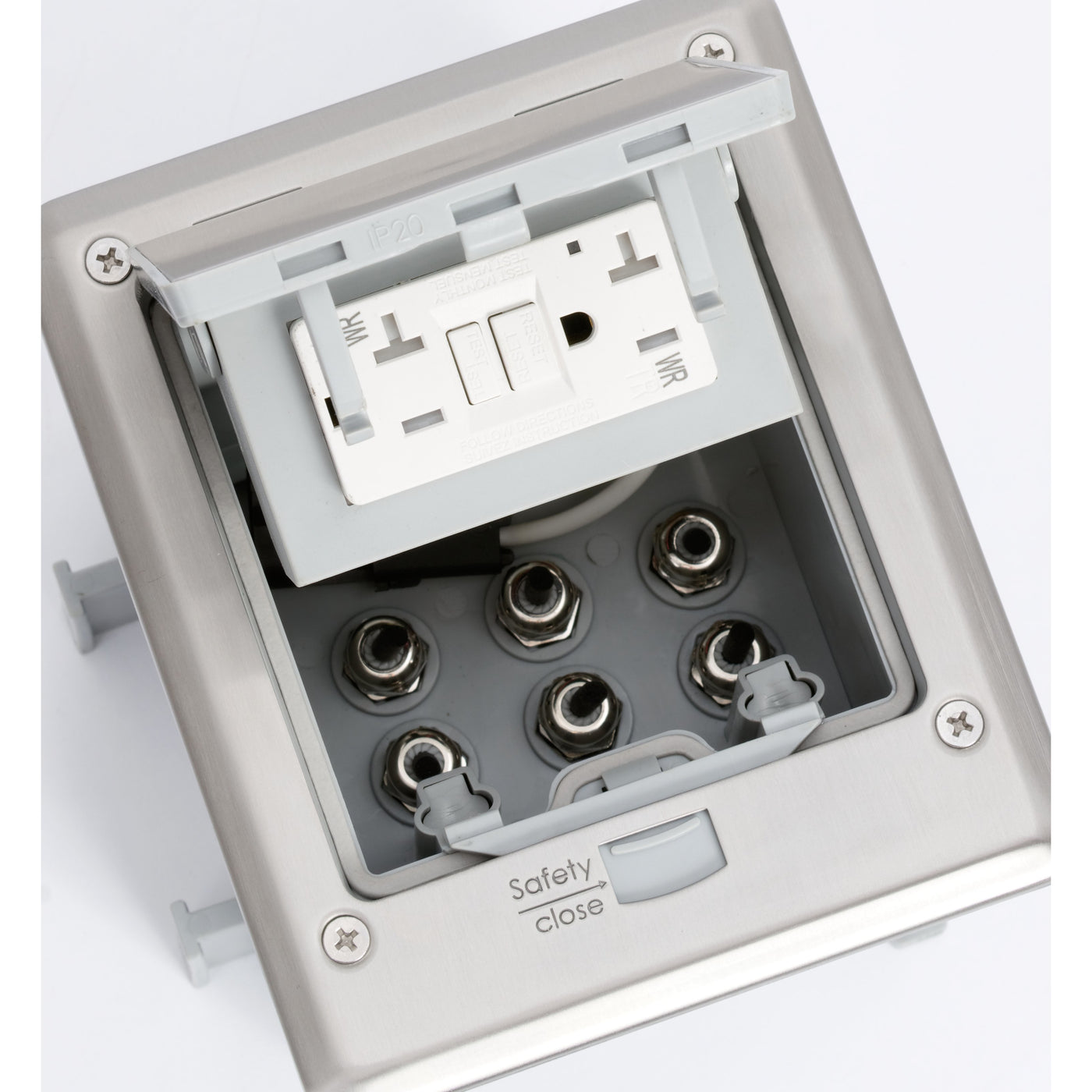

Inside the pop-up is a 20 Amp GFCI protected outlet, the 20 Amp rated outlet ensures there is enough amperage to plug in the most demanding appliances. The outlet is UL listed to meet code, and is weather resistant (WR) rated. The receptacle features tamper resistant (TR) plugs to meet code, so no harmful objects can be inserted into the plugs.

Easy Push Button Opening for Pop Up Power

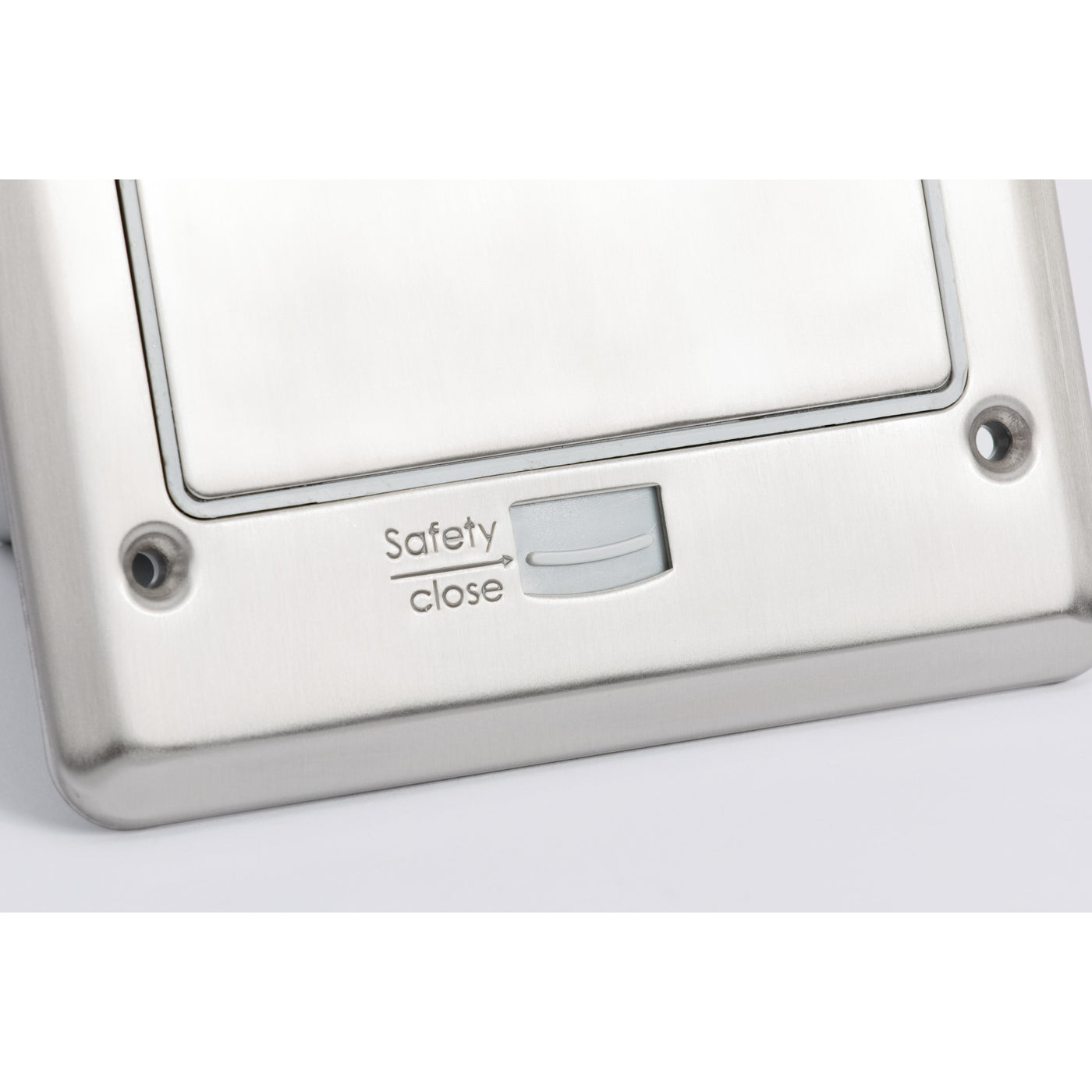

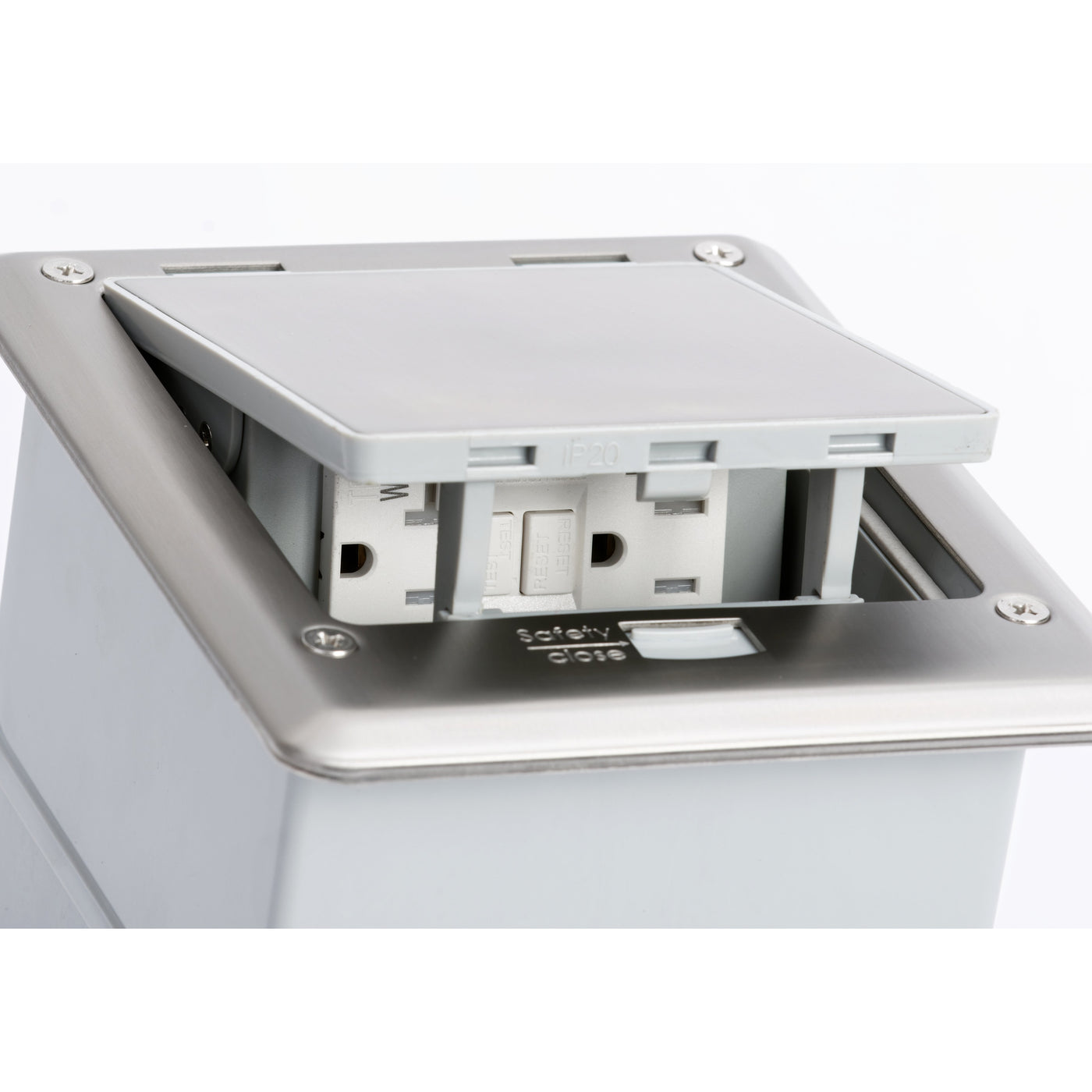

The top of this model features a quick and easy to use slide/push button for quick access. Simply push the button, and the top will pop up so you can plug in your cord. The top then stays open just over an inch, so the lid isn’t just sitting on the cord.  When you no longer need power, unplug your cord and close the lid shut.

Install in a Minimum of 4” of Concrete

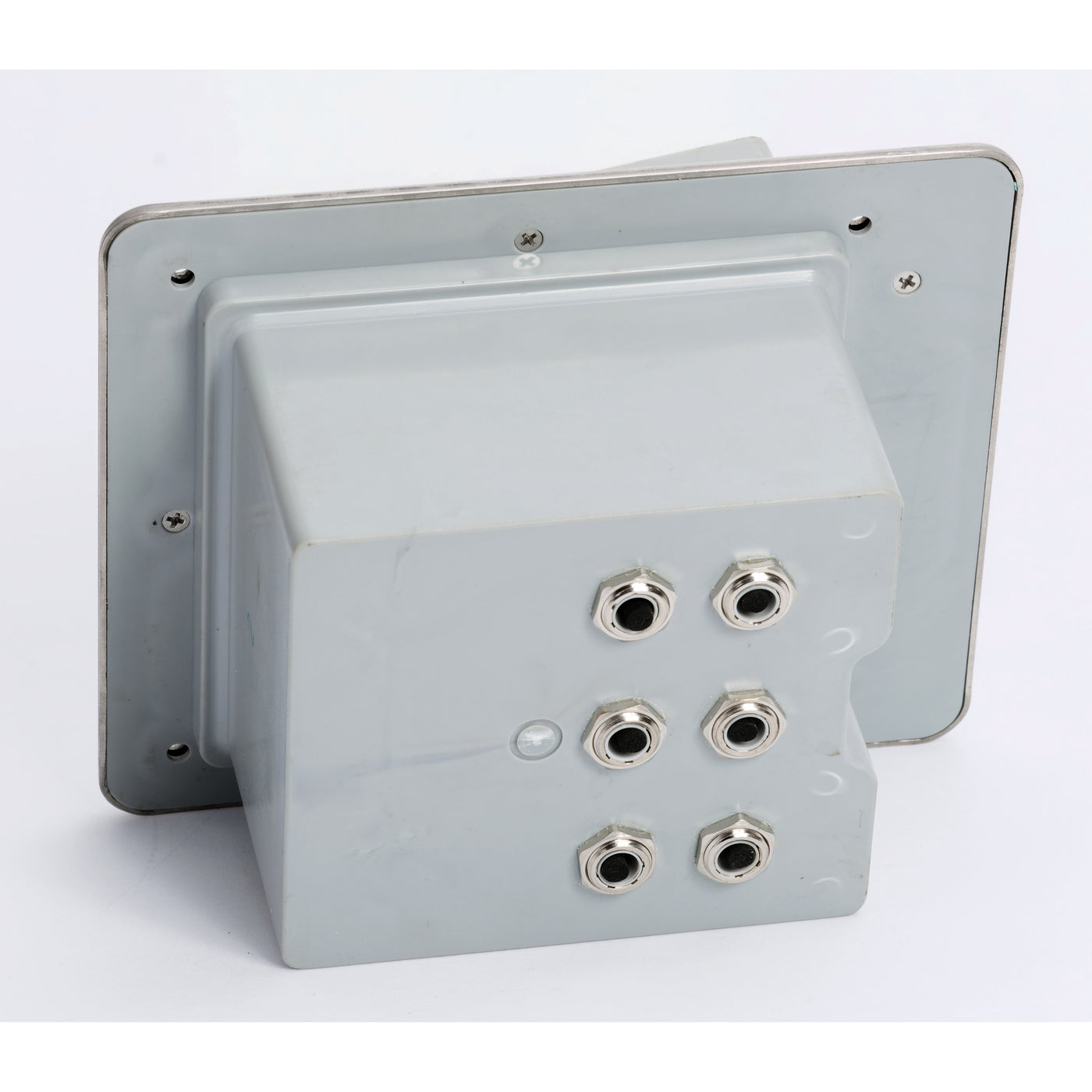

To meet code, and to obtain the waterproof rating, the pop up was designed to be installed in a minimum of 4" of concrete. While it needs to be installed in concrete, the top can sit on any outdoor material including pavers, tile, or just the concrete by itself. The unit is gangable so you can attach other units to it for increased power needs. The overall height of the back box is 3 5/8", and the minimum depth can be adjusted upwards of 1 3/4". There are ten 1/2" knockouts in the back box giving you a multitude of choices to bring your wire into the box.

The Lew Electric OB-1-SP is the only grade-level outdoor water tight floor box on the market that can apply safe and protected power when installed correctly.

*Must be wired to a dedicated GFCI breaker. Must install in a minimum of 4” of concrete. Non-returnable once installed. Please watch installation video*

Specifications

Material: Stainless Steel #316
Push button opening
Outlet: 20A GFCI water rated
Top: 6 7/8" x 5 11/16"
Back box: 5 1/4" x 4 3/4"
Tamper resistant (TR) plugs
For 4"+ concrete installations only
For outdoor or indoor use
UL listed receptacle
Water protection: IP66 water & dust rated when closed
MUST BE WIRED TO A DEDICATED GFI BREAKER
Gangable
Overall height of box is 3 5/8"
Minimum depth can be adjusted upwards of 1 3/4"
Install using a licensed electrician
Ten 1/2" knockouts
Install in concrete, pavers, or tile
Perfect for patios, pools, and outdoor kitchens
1 year warranty
Lew Electric OB-1-SP Drawing (PDF)
Lew Electric OB-1-SP Install Instructions (PDF)


Material: Stainless Steel #316
Push button opening
Outlet: 20A GFCI water rated
Top: 6 7/8" x 5 11/16"
Back box: 5 1/4" x 4 3/4"
Tamper resistant (TR) plugs
For 4"+ concrete installations only
For outdoor or indoor use
UL listed receptacle
Water protection: IP66 water & dust rated when closed
MUST BE WIRED TO A DEDICATED GFI BREAKER
Gangable
Overall height of box is 3 5/8"
Minimum depth can be adjusted upwards of 1 3/4"
Install using a licensed electrician
Ten 1/2" knockouts
Install in concrete, pavers, or tile
Perfect for patios, pools, and outdoor kitchens
1 year warranty

Questions & Answers

Ask a Question
  • Can the outlet be replaced within the housing?

    Yes, the outlet can be replaced.

  • Can this be installed in a outdoor kitchen granite countertop ?

    It can be if installed in 4" of concrete, it has to be installed in a countertop the same way as in-ground.

  • Can it come in White ?

    It only comes in the marine grade stainless steel, that material provides the most corrosion protection against the elements.

  • Is there room to fit a plug into the opening?

    Yes, the lid lifts up all the way so you can plug in your power.  The lid then partially closes in place so the lid just isn't sitting on the cord.
