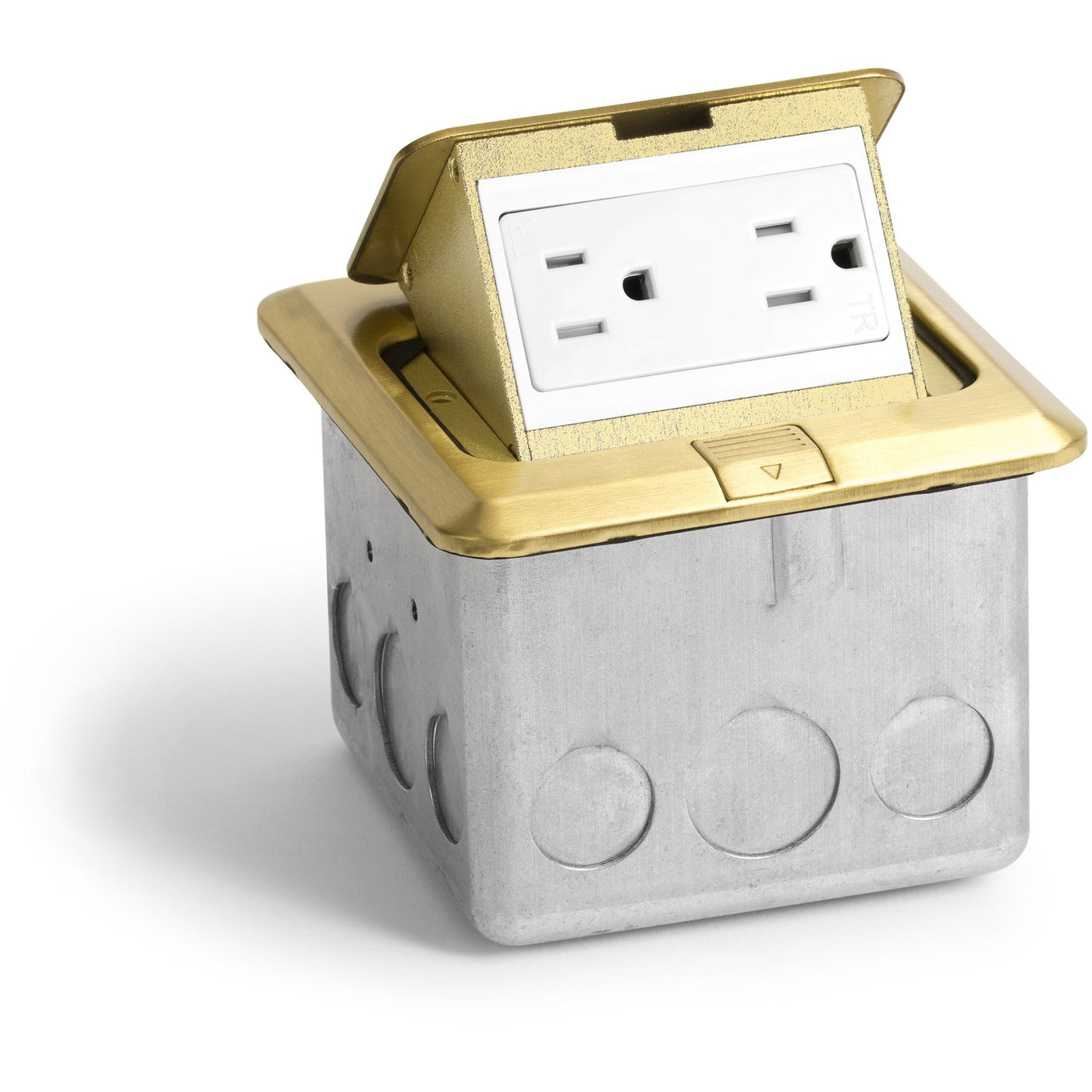

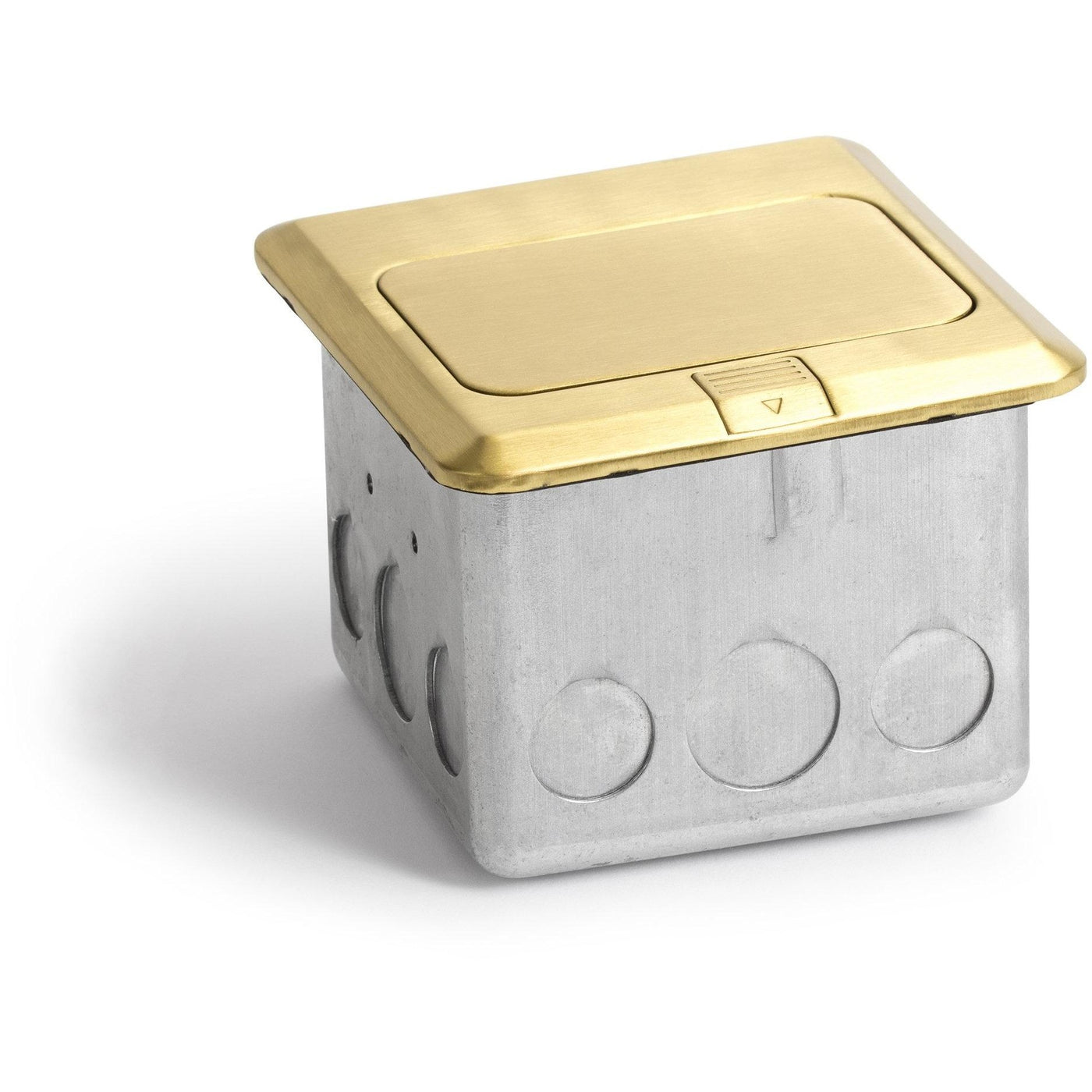

The Lew Electric PUFP-SQ-BR is an indoor floor box that provides duplex power in a hidden and attractive pop up. When closed the pop up is hidden in your floor, all you see is a stylish brass top. When you push the button the top tilts open revealing the power outlet. The outlet is 15 amps with tamper resistant plugs, and is UL listed.
Hidden Power Where You Need It
This pop up is perfect for any locations where you need hidden power, or locations where a wall outlet is not available. The pop up has been optimized to work perfectly in any indoor residential or commercial application with wood floors. The pop up can be installed in tile floors, the back box would need to be installed from under the floor. The unit as a whole is UL listed including the outlet, it is also cUL recognized for Canadian installations. In the closed position the top is UL compliant to keep out dust and scrub water, there is also a gasket under the bezel to keep out water from entering from the sides.
Hardwired Outlet with Back Box
The outlet needs to be hardwired through the included back box and to the outlet. The back box only takes up 3 1/8" of space under your floor allowing it to be installed almost anywhere. The hole that needs to be cut in your floor is 4 1/16" x 4 1/16", the top bezel is 4 3/4" x 4 3/4".
The box is an excellent choice for any commercial or residential application that needs affordable power supplied in a stylish pop up, it can be used in floors or even desks.
- Top: Brass
- UL rated for USA installations
- cUL and CSA approved for Canadian installations
- Meets NEC code 210.52(C)
- Outlet: 15 amps
- Top: 4 3/4" x 4 3/4"
- Cutout hole : 4 1/16" x 4 1/16"
- Depth under floor: 3 1/8"
- Tamper resistant (TR) plugs
- Install in wood floors
- Install in tile floors if access from below
- Indoor residential or commercial installations
- UL listed receptacle
- Scrub water rated
- Includes back box
- Install in floors or desks
- 1 year warranty
UL rated for USA installations
cUL and CSA approved for Canadian installations
Meets NEC code 210.52(C)
Outlet: 15 amps
Top: 4 3/4" x 4 3/4"
Cutout hole : 4 1/16" x 4 1/16"
Depth under floor: 3 1/8"
Tamper resistant (TR) plugs
Install in wood floors
Install in tile floors if access from below
Indoor residential or commercial installations
UL listed receptacle
Scrub water rated
Includes back box
Install in floors or desks
1 year warranty
