Pop Up Floor Box w/ 15A Duplex Power & 2 USB Charging Ports - Brass

  |   Q&A


Free shipping on orders over $99

Part #: PUFP-SQ-BR-USB
Vendor: Lew Electric
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

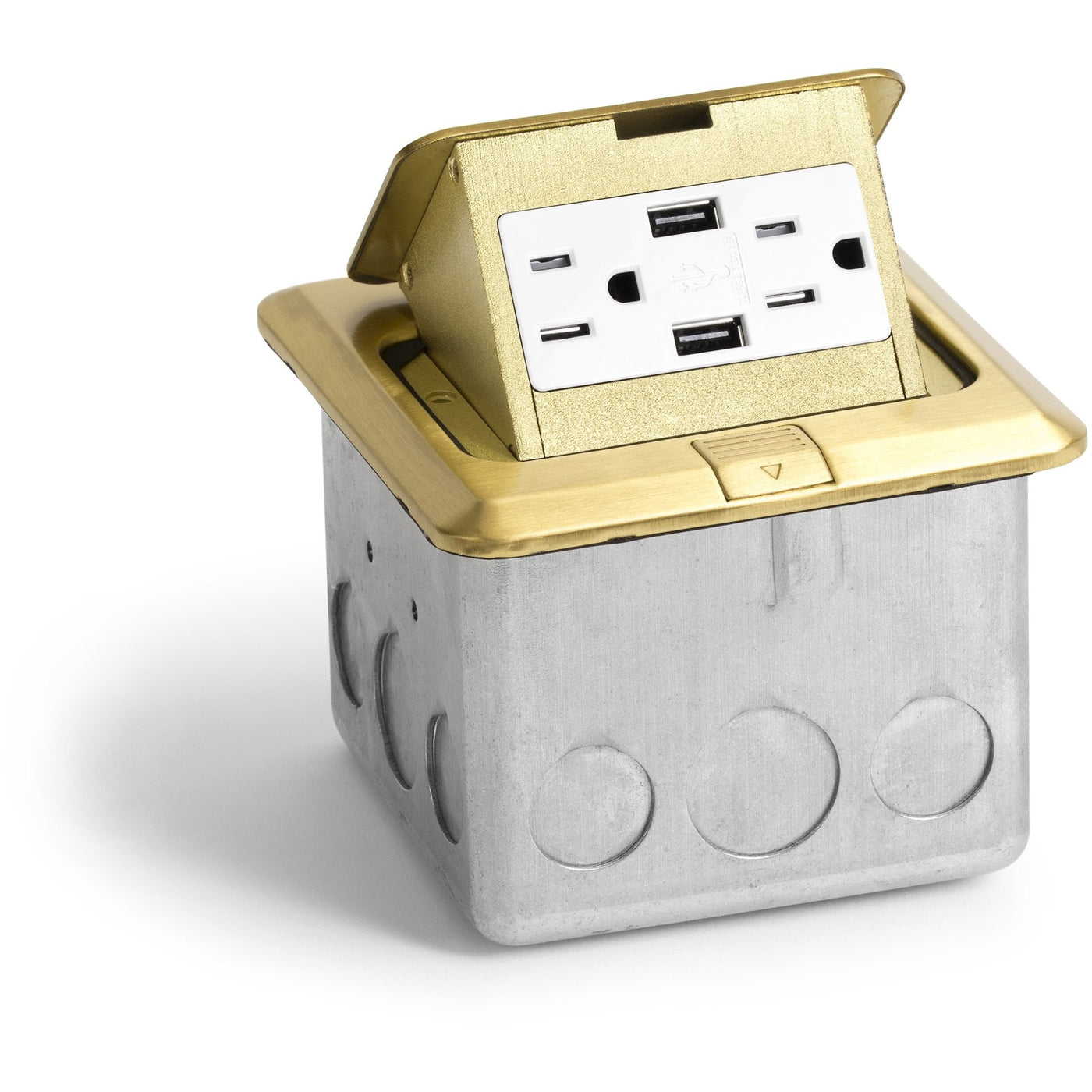

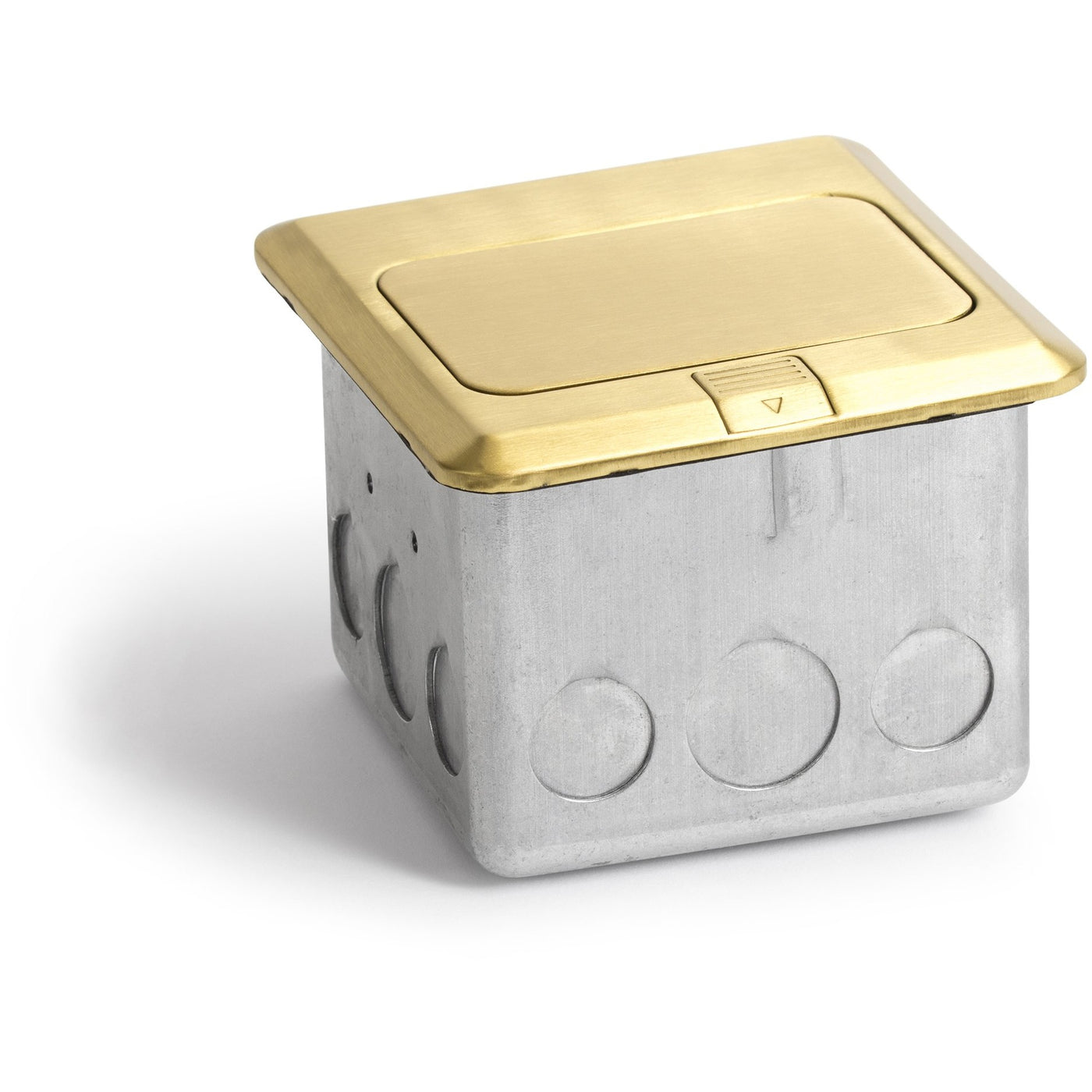

The Lew Electric PUFP-SQ-BR-USB is an indoor floor box that provides duplex power and USB charging ports in a hidden and attractive pop up. When closed the pop up is hidden in your floor, all you see is a stylish brass top. When you push the button the top tilts open revealing the power outlet. The outlet is 15 amps with tamper resistant plugs, and integrated 2 charging USB ports. The USB ports supply 3.6 amps of shared charging power. The USB ports are intelligent ports and will automatically adjust to the device being plugged in, this pop up will always supply the correct amount of power.

Any Location for Hidden Power

This pop up is perfect for any locations where you need hidden power, or locations where a wall outlet is not available. The pop up has been optimized to work perfectly in any indoor residential or commercial application with wood floors. It can also be installed in a tile floor if you have access from beneath the floor to install the back box. The unit as a whole is UL listed including the outlet, it is also cUL recognized for Canadian installations. In the closed position the top is UL compliant to keep out dust and scrub water, there is also a gasket under the bezel to keep out water from entering from the sides.

Included Back Box

The outlet needs to be hardwired through the included back box and to the outlet. The back box only takes up 3 1/8" of space under your floor allowing it to be installed almost anywhere. The hole that needs to be cut in your floor is 4 1/16" x 4 1/16", the top bezel is 4 3/4" x 4 3/4".

The box is an excellent choice for any commercial or residential application that needs affordable power supplied in a stylish pop up, it can be used in floors or even desks.

Specifications:

  • Top: Brass
  • UL rated for USA installations
  • cUL and CSA approved for Canadian installations
  • Meets NEC code 210.52(C)
  • Outlet: 15A, 2 charging USB
  • Charging USB is 3.6A shared
  • Top: 4 3/4" x 4 3/4"
  • Cutout hole : 4 1/16" x 4 1/16"
  • Depth under floor: 3 1/8"
  • Tamper resistant (TR) plugs
  • Install in wood floors
  • Install in tile if you have access from below
  • Indoor residential or commercial installations
  • UL listed receptacle
  • Scrub water rated
  • Includes back box
  • Install in floors or desks
  • 1 year warranty

Lew Electric PUFP-SQ-BR-USB Installation Instructions (PDF)

Top: Brass
UL rated for USA installations
cUL and CSA approved for Canadian installations
Meets NEC code 210.52(C)
Outlet: 15A, 2 charging USB
Charging USB is 3.6A shared
Top: 4 3/4" x 4 3/4"
Cutout hole : 4 1/16" x 4 1/16"
Depth under floor: 3 1/8"
Tamper resistant (TR) plugs
Install in wood floors
Install in tile if you have access from below
Indoor residential or commercial installations
UL listed receptacle
Scrub water rated
Includes back box
Install in floors or desks
1 year warranty

Questions & Answers

Ask a Question
  • What is the height of the door when in the open position? I only ask this because I want to put a wood desk over the top of the outlet and the bottom shelf is 4" above the floor.

    The top height is 2.222" above the surface when popped up.
