Wiremold by Legrand XB814 Empty Outdoor Ground Box

The Wiremold XB814 is a waterproof outdoor power box designed to be installed in the ground, the box is empty and requires a sold separately cover assembly to be inserted in the box for your power or data.

Outdoor Rated Design

The box is made out of a UV rated material that is designed to withstand any type of harsh weather.  The box maintains an air pocket protecting the devices and plugs in the box for year-round operation. The gasket seals have been tested to perform under six feet of water for over 24 hours. The box meets IP68 requirements even while in-use, now you can use your cables in any weather even when they are plugged in. The list of certifications include:

-UL50E Type 6P
-UL2996
-UL50E
-UL File E486738 Guide QCNL
-cUL listed, E486738
-IP68 water and dust rated
-ADA compliant
-ANSI.SCTE 77 Tier 5 (5,000lb load rating)
-RoHS conformant

Flush to Finished Ground Installation

The box blends in perfectly with any outdoor space including grass, mulch, concrete, brick, pavers, dirt, walkways, patios, and more. Install in any outdoor location that requires safe power including shopping centers, campuses, amusement parks, sports fields, transit, and hospitality locations.

Modular Design

The 2-gang box can be installed separately or ganged together for increased power and data in one location. The box can accept up to two 1.25" PVC conduit connections, one for the feed and the other to daisy chain.

Requires Sold Separately Cover Assembly

This is the empty box that the cover assembly installs into, sold separately cover options include:

XB814C520BN, brown cover with 4 power

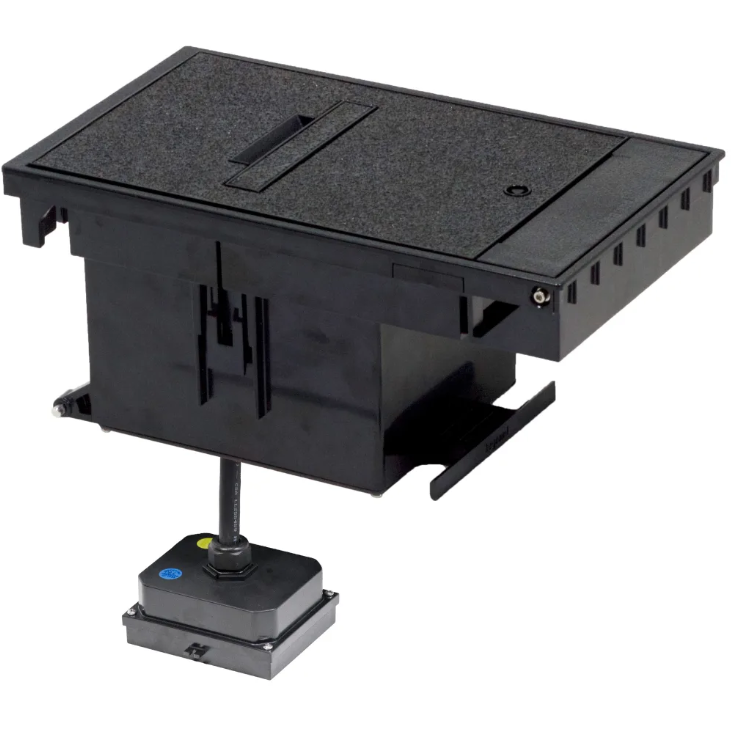

XB814C520BK, black cover with 4 power

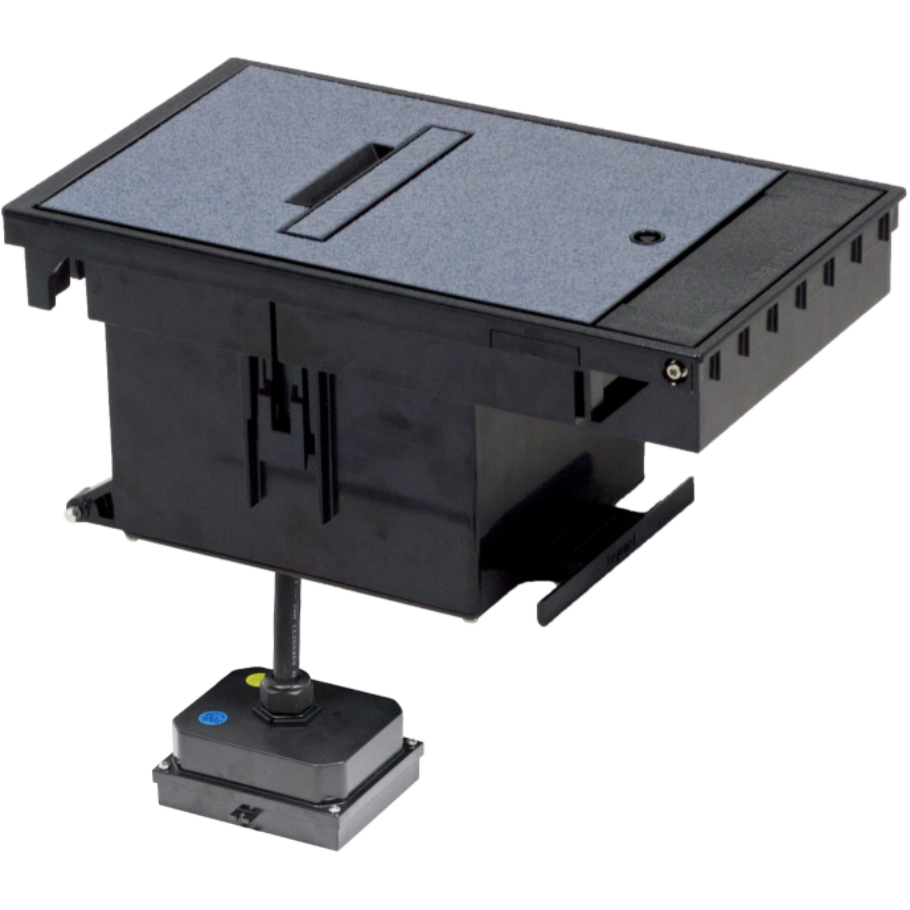

XB814C520GY, gray cover with 4 power

XB814CLVBN, brown cover with 12-port data plate

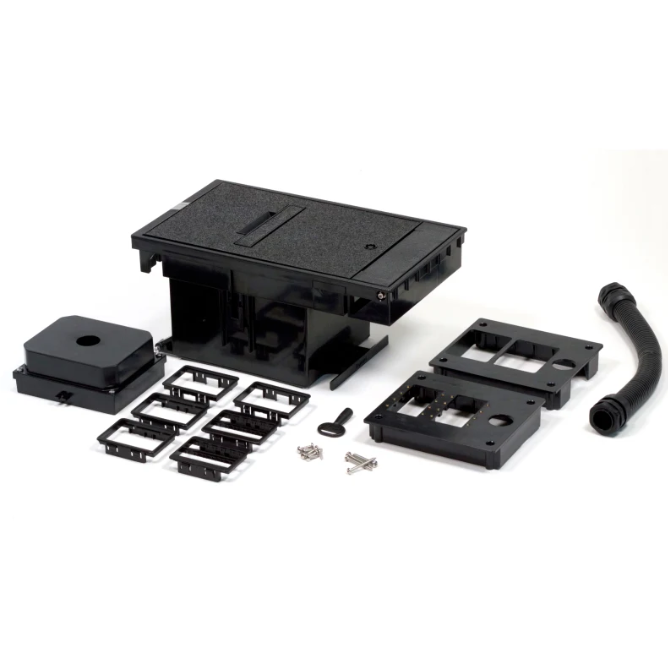

XB814CLVBK, black cover with 12-port data plate
XB814CLVGY, gray cover with 12-port data plate

The covers feature a tamper resistant key and lock opening that can be used if security is desired.

The lock nut tool XBLNT is sold separately and is used to tighten the conduit nut.

Installation and Usage Notes

This is the empty box only and requires a sold separately cover assembly.

The ground box electrical circuit must be protected by a ground fault circuit interrupter (GFCI) upstream from the ground box.

The cover must be closed while in use. Use only molded plugs and cords that are rated for outdoor use that are no larger than 6 gauge.

The maximum length of plug allowed at the end of the cord is 3".

The cover assembly can't have both power and data in one box, however 2 boxes can be ganged together to achieve power and data.

The box can be installed in concrete, but not fully encased. The bottom must remain open for drainage.

Specifications:

  • UV rated plastic
  • Lift up handle, optional key
  • Top: 16 1/8" x 8 1/8"
  • Height: 10 3/4"
  • 2-gang size, can be ganged
  • For outdoor or indoor use
  • In-use water protection: IP68 water and dust
  • Must be wired to a GFCI circuit
  • Install using a licensed electrician
  • Two 1.25" conduit connections
  • Requires sold separately cover assembly
  • 1 year warranty

Specifications (PDF)
Box Installation (PDF)
Cover Installation (PDF)
FAQ's (PDF)
Brochure (PDF)


UV rated plastic
Lift up handle, optional key
Top: 16 1/8" x 8 1/8"
Height: 10 3/4"
2-gang size, can be ganged
For outdoor or indoor use
In-use water protection: IP68 water and dust
Must be wired to a GFCI circuit
Install using a licensed electrician
Two 1.25" conduit connections
Requires sold separately cover assembly
1 year warranty
