Pop Up Floor Box w/ 15A Duplex Power & 2 USB Charging, Stainless Steel

4   |   Q&A

$78.00

Free shipping on orders over $99

Part #: PUFP-SQ-SS-USB
Vendor: Lew Electric
In stock! Ships same business day from Chicago if ordered by 1:30EST
Maximum quantity available reached.

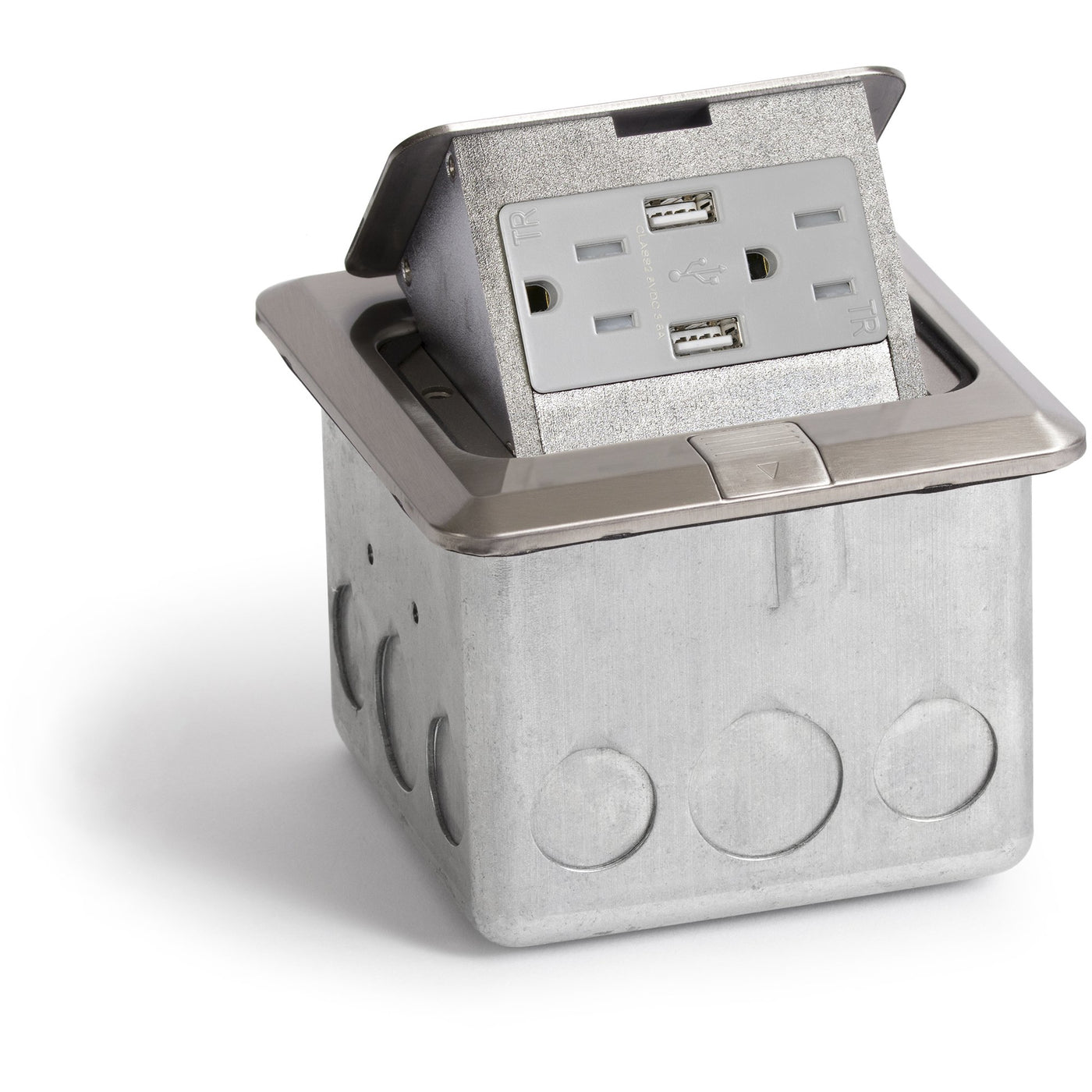

The Lew Electric PUFP-SQ-SS-USB is an indoor floor box that provides duplex power and USB charging ports in a hidden and attractive pop up. When closed the pop up is hidden in your floor, all you see is a stylish stainless steel top. When you push the button the top tilts open revealing the power outlet. The outlet is 15 amps with tamper resistant plugs, and integrated 2 charging USB ports. The USB ports supply 3.6 amps of shared charging power. The USB ports are intelligent ports and will automatically adjust to the device being plugged in, this pop up will always supply the correct amount of power.

This pop up is perfect for any locations where you need hidden power, or locations where a wall outlet is not available. The pop up has been optimized to work perfectly in any indoor residential or commercial application with wood floors. Additionally, it can be installed in a tile floor if you can install the back box from below. The unit as a whole is UL listed including the outlet, it is also cUL recognized for Canadian installations. In the closed position the top is UL compliant to keep out dust and scrub water, there is also a gasket under the bezel to keep out water from entering from the sides.

The outlet needs to be hardwired through the included back box and to the outlet. The back box only takes up 3 1/8" of space under your floor allowing it to be installed almost anywhere. The hole that needs to be cut in your floor is 4 1/16" x 4 1/16", the top bezel is 4 3/4" x 4 3/4".

The box is an excellent choice for any commercial or residential application that needs affordable power supplied in a stylish pop up, it can be used in floors or even desks.

Top: Stainless steel
UL rated for USA installations
cUL rated for Canadian installations
Meets NEC code 210.52(C)
Outlet: 15A, 2 charging USB
Charging USB is 3.6A shared
Top: 4 3/4" x 4 3/4"
Cutout hole : 4 1/16" x 4 1/16"
Depth under floor: 3 1/8"
Tamper resistant (TR) plugs
Install in wood floors
Install in tile if you can gain access from below
Indoor residential or commercial installations
UL listed receptacle
Scrub water rated
Includes back box
Install in floors or desks
1 year warranty

Top: Stainless steel
UL rated for USA installations
cUL rated for Canadian installations
Meets NEC code 210.52(C)
Outlet: 15A, 2 charging USB
Charging USB is 3.6A shared
Top: 4 3/4" x 4 3/4"
Cutout hole : 4 1/16" x 4 1/16"
Depth under floor: 3 1/8"
Tamper resistant (TR) plugs
Install in wood or floors
Indoor residential or commercial installations
Install in tile if you can gain access from below
UL listed receptacle
Scrub water rated
Includes back box
Install in floors or desks
1 year warranty
