Pop Up Floor Box w/ 20A GFI Protected Duplex Power - Stainless Steel

31 reviews   |   Q&A

$98.00

Free shipping on orders over $99

Part #: PUFP-SQ-SS-GFI
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

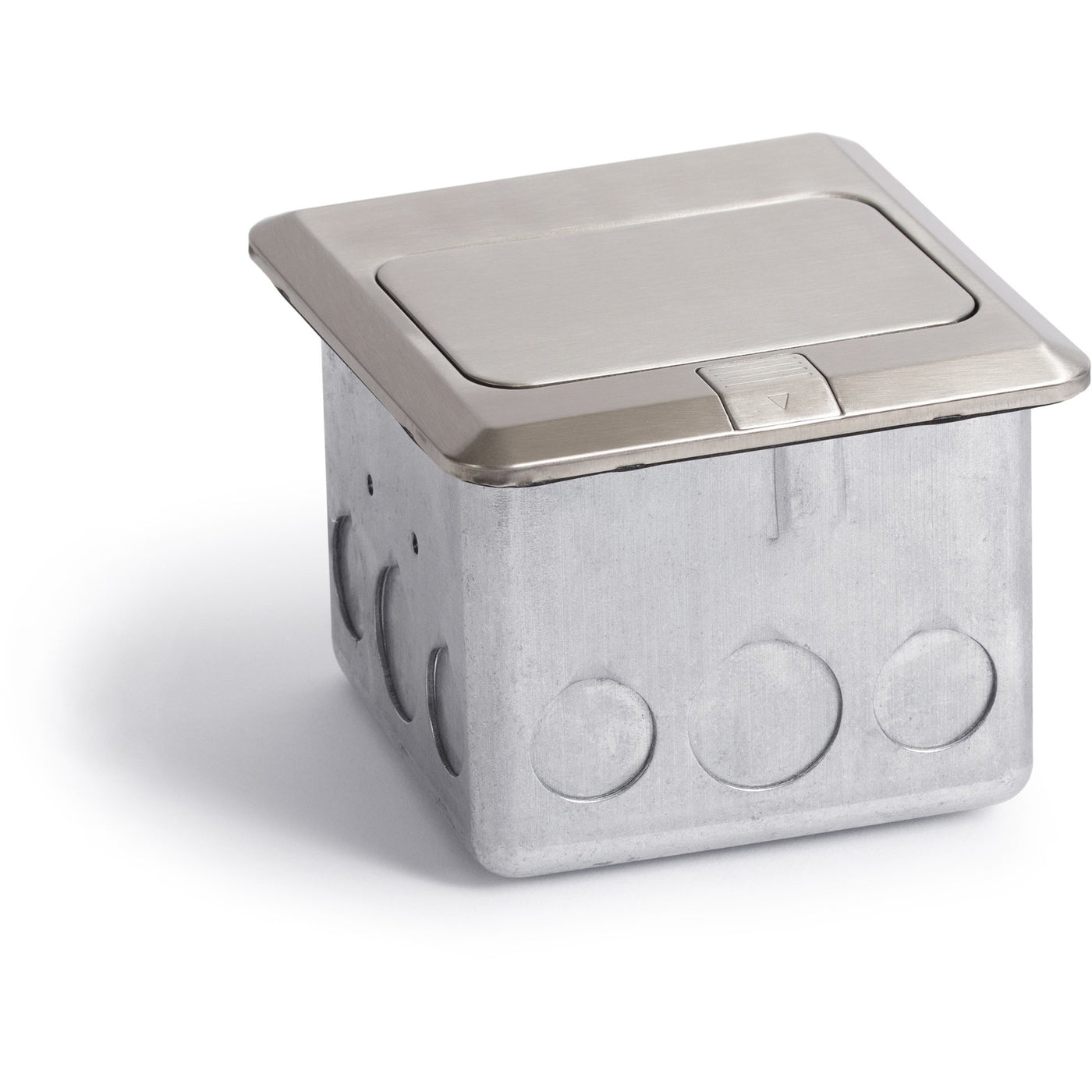

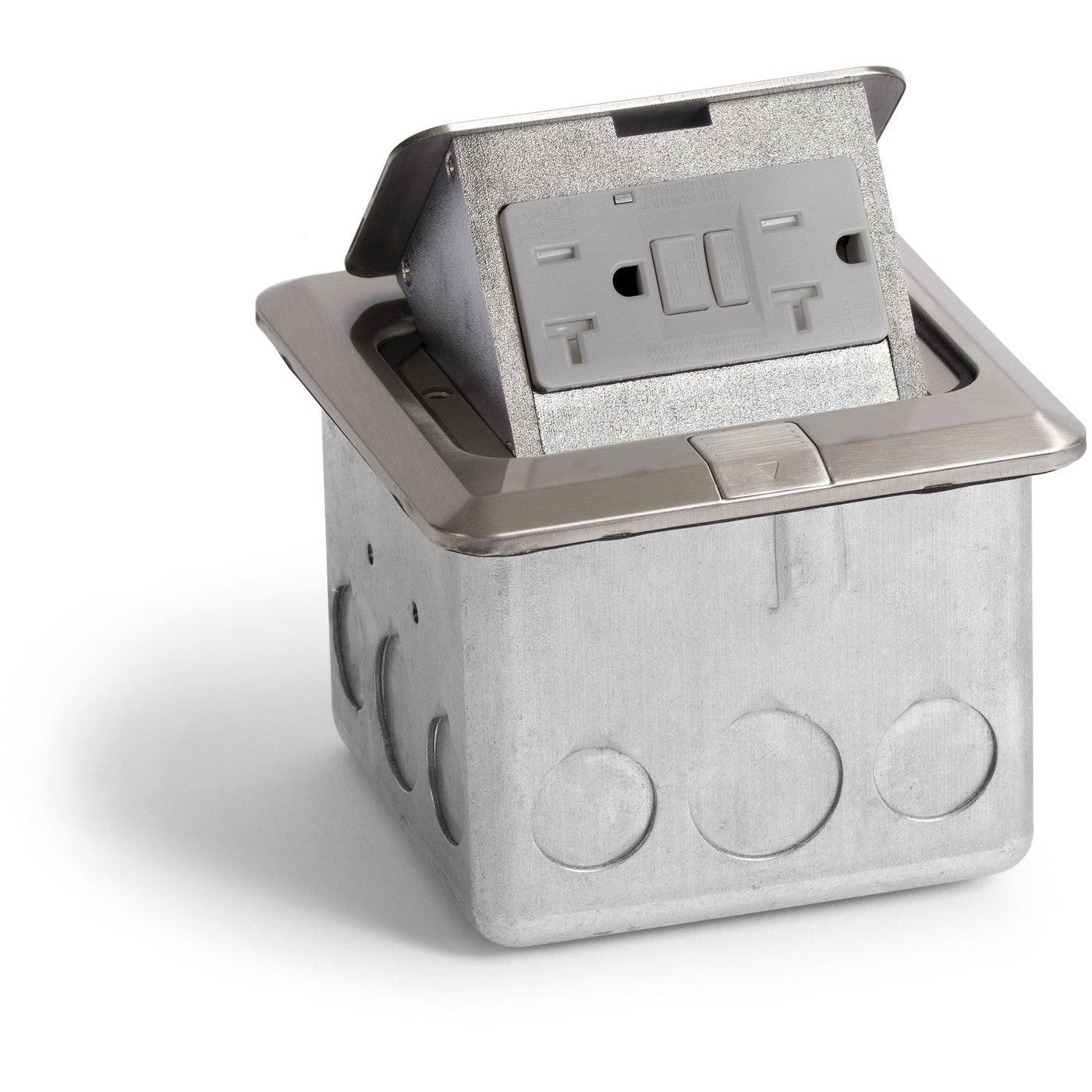

The Lew Electric PUFP-SQ-SS-GFI is an indoor floor box that provides 20A GFCI protected duplex power in a hidden and attractive pop up. When closed the pop up is hidden in your floor, all you see is a stylish stainless steel top. When you push the button the top tilts open revealing the power outlet. The outlet is 20 amps with tamper resistant plugs, and is UL listed and water rated.

Hidden Power, Available Where You Need It

This pop up is perfect for any locations where you need hidden power, or locations where a wall outlet is not available. The pop up has been optimized to work perfectly in any indoor residential or commercial application with wood floors. The box can also be installed in a tile floor, as long as you can install the back box from underneath the floor. The unit as a whole is UL listed including the outlet, it is also cUL recognized for Canadian installations. In the closed position the top is UL compliant to keep out dust and scrub water, there is also a gasket under the bezel to keep out water from entering from the sides.

Hardwired Solution with Back Box

The outlet needs to be hardwired through the included back box and to the outlet. The back box only takes up 3 1/8" of space under your floor allowing it to be installed almost anywhere. The hole that needs to be cut in your floor is 4 1/16" x 4 1/16", the top bezel is 4 3/4" x 4 3/4".

The box is an excellent choice for any commercial or residential application that needs affordable power supplied in a stylish pop up, it can be used in floors or even desks.

Specifications:

  • Top: Stainless steel
  • UL rated for USA installations
  • cUL and CSA approved for Canadian installations
  • Meets NEC code 210.52(C)
  • Outlet: 20A GFCI
  • Water rated outlet
  • Top: 4 3/4" x 4 3/4"
  • Cutout hole : 4 1/16" x 4 1/16"
  • Depth under floor: 3 1/8"
  • Tamper resistant (TR) plugs
  • Install in wood floors
  • Indoor residential or commercial installations
  • UL listed receptacle
  • Scrub water rated
  • Includes back box
  • Install in floors or desks
  • 1 year warranty

Lew Electric PUFP-SQ-SS-GFI Installation Instructions (PDF)

Top: Stainless steel
UL rated for USA installations
cUL and CSA approved for Canadian installations
Meets NEC code 210.52(C)
Outlet: 20A GFCI
Water rated outlet
Top: 4 3/4" x 4 3/4"
Cutout hole : 4 1/16" x 4 1/16"
Depth under floor: 3 1/8"
Tamper resistant (TR) plugs
Install in wood floors
Indoor residential or commercial installations
UL listed receptacle
Scrub water rated
Includes back box
Install in floors or desks
1 year warranty
