Concealed Power Recessed Floor Box, 1 Outlet, Hidden Plugs, Brass

  |   Q&A

$160.00

Free shipping on orders over $99

Part #: RCFB-1
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

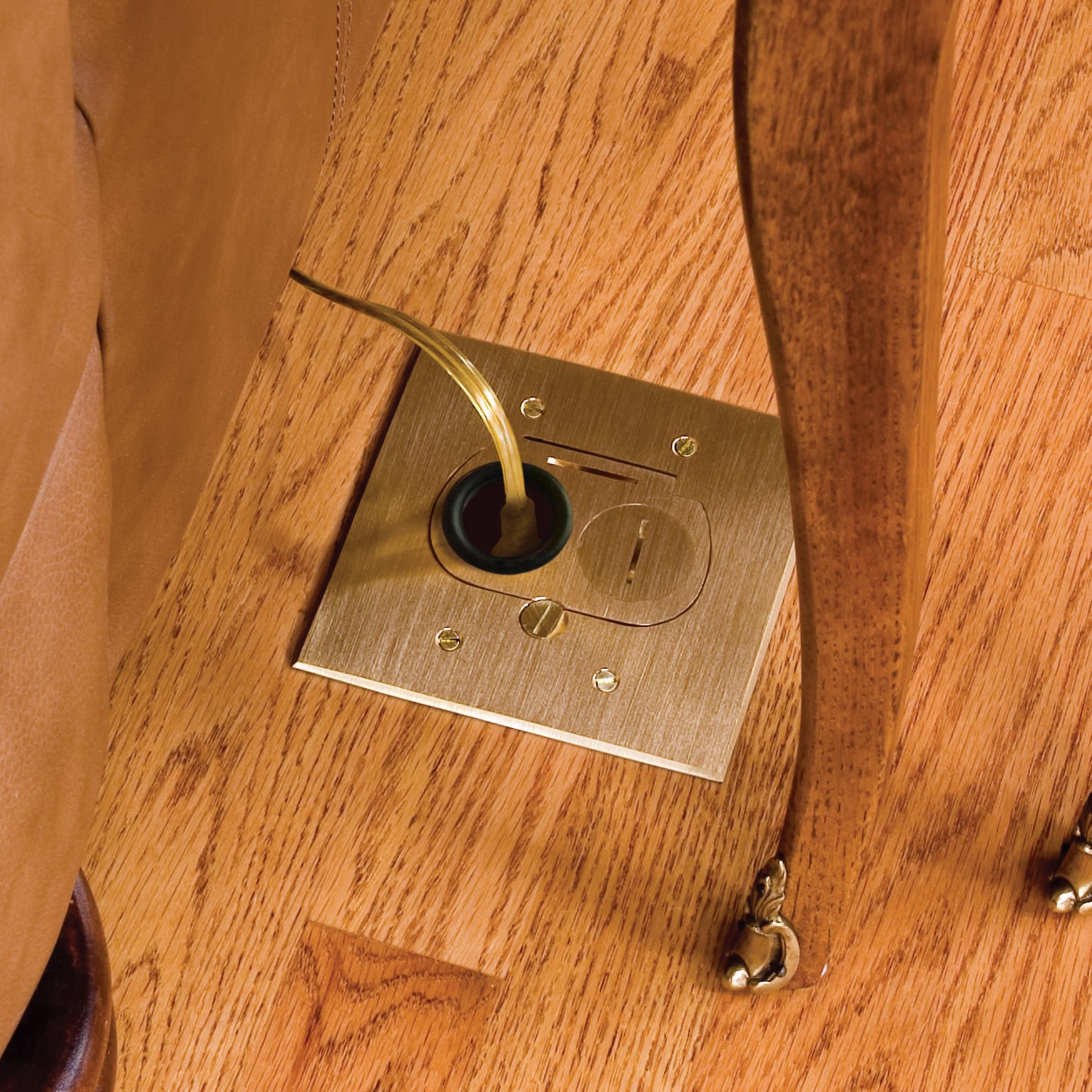

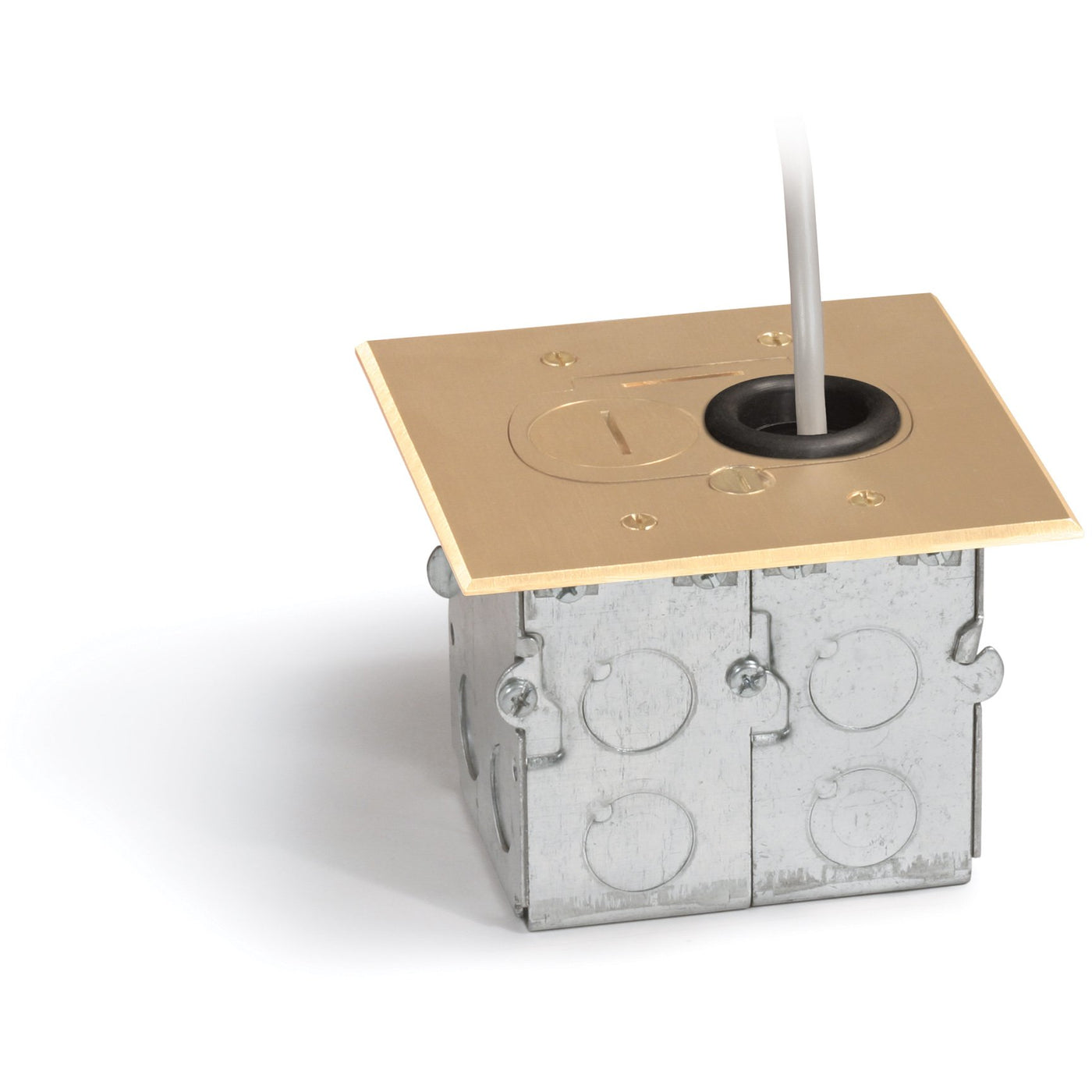

The Lew Electric RCFB-1 is a recessed floor box that allows the user to hide the plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground. The plate is real brass providing a durable cover for any floor.

Eliminate Tripping Hazards with a Concealed Plug Floor Box

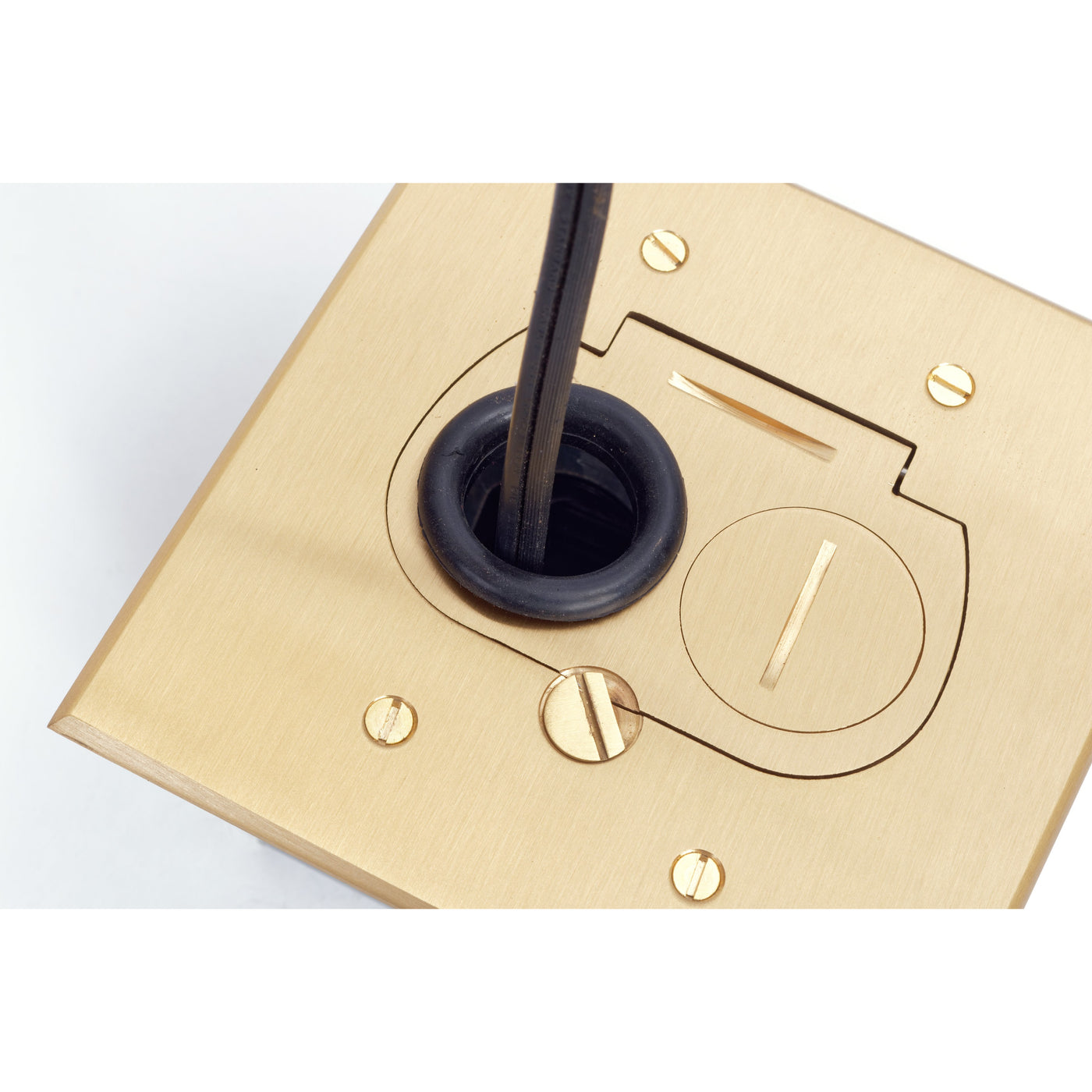

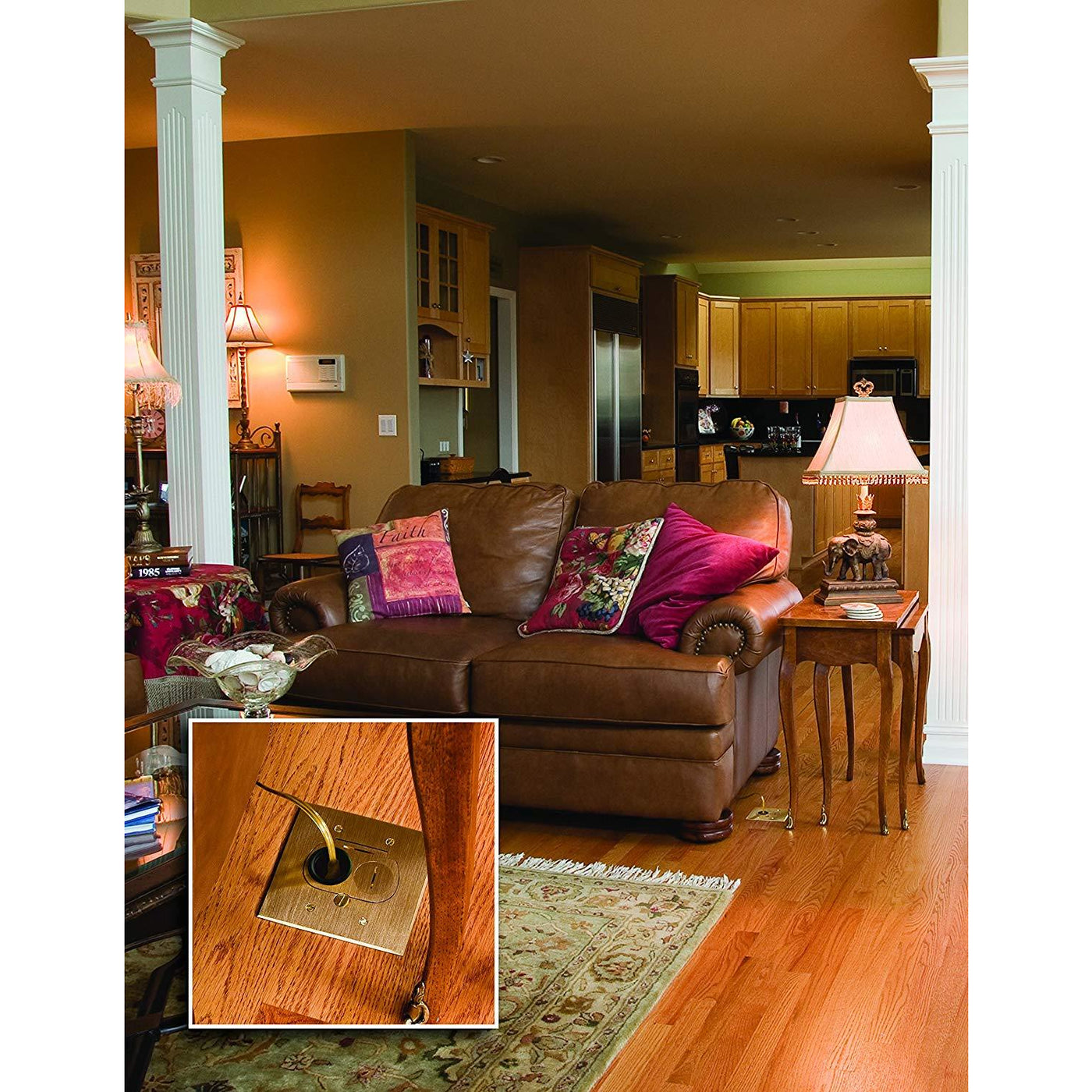

Now you can safely eliminate dangerous plugs from being above ground with no tripping hazards. Since they can’t be kicked by feet anymore, you don’t have to worry about breaking the cord plug, or the outlet that the cord was plugged into. Since the plugs are set deep down in the box, there is no more cluttered mess to look at.  This box is perfect for hiding under a rug, since the plugs won’t be in the way.  Use for permanently plugged in devices through the grommet holes, or use the lid or screw plugs to access power.

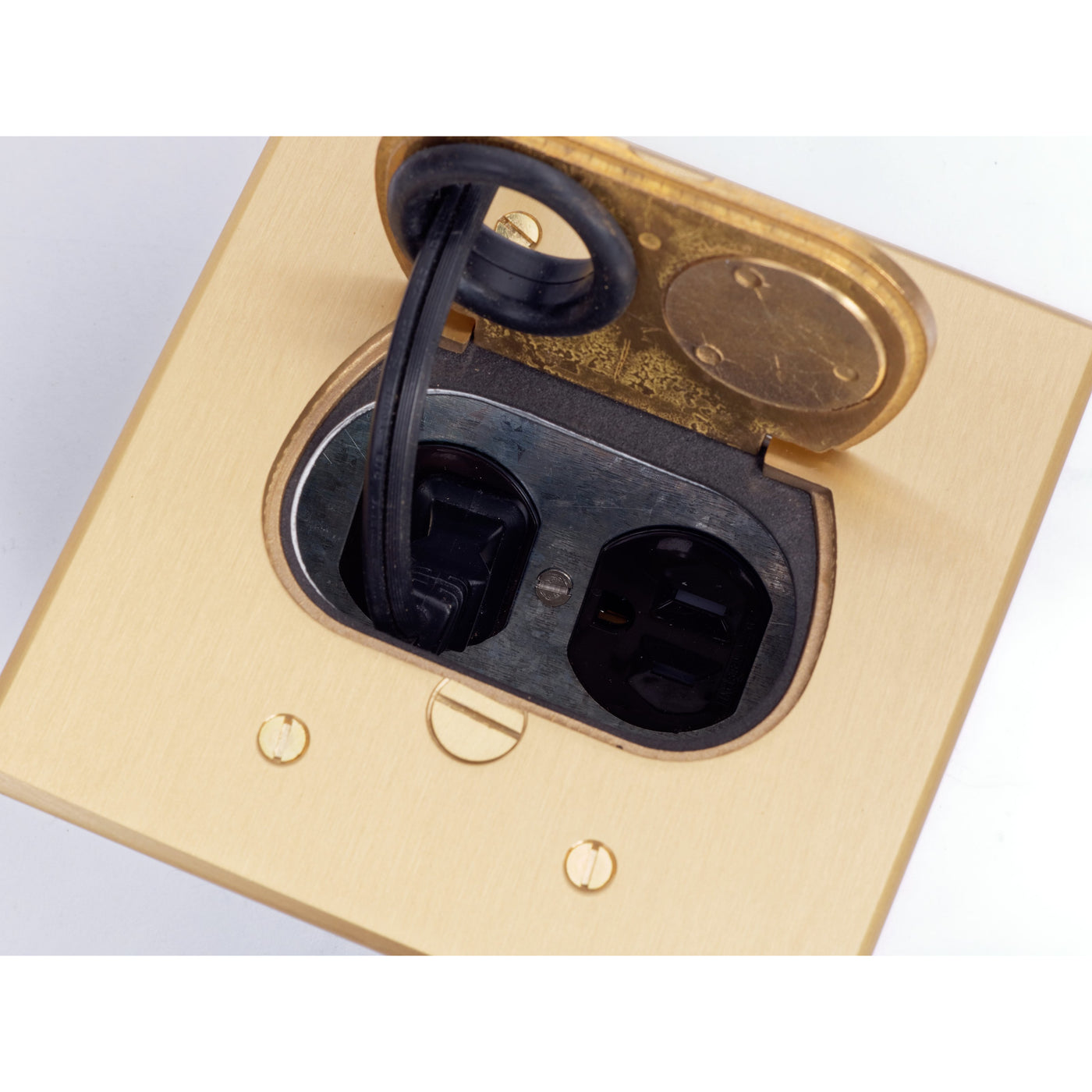

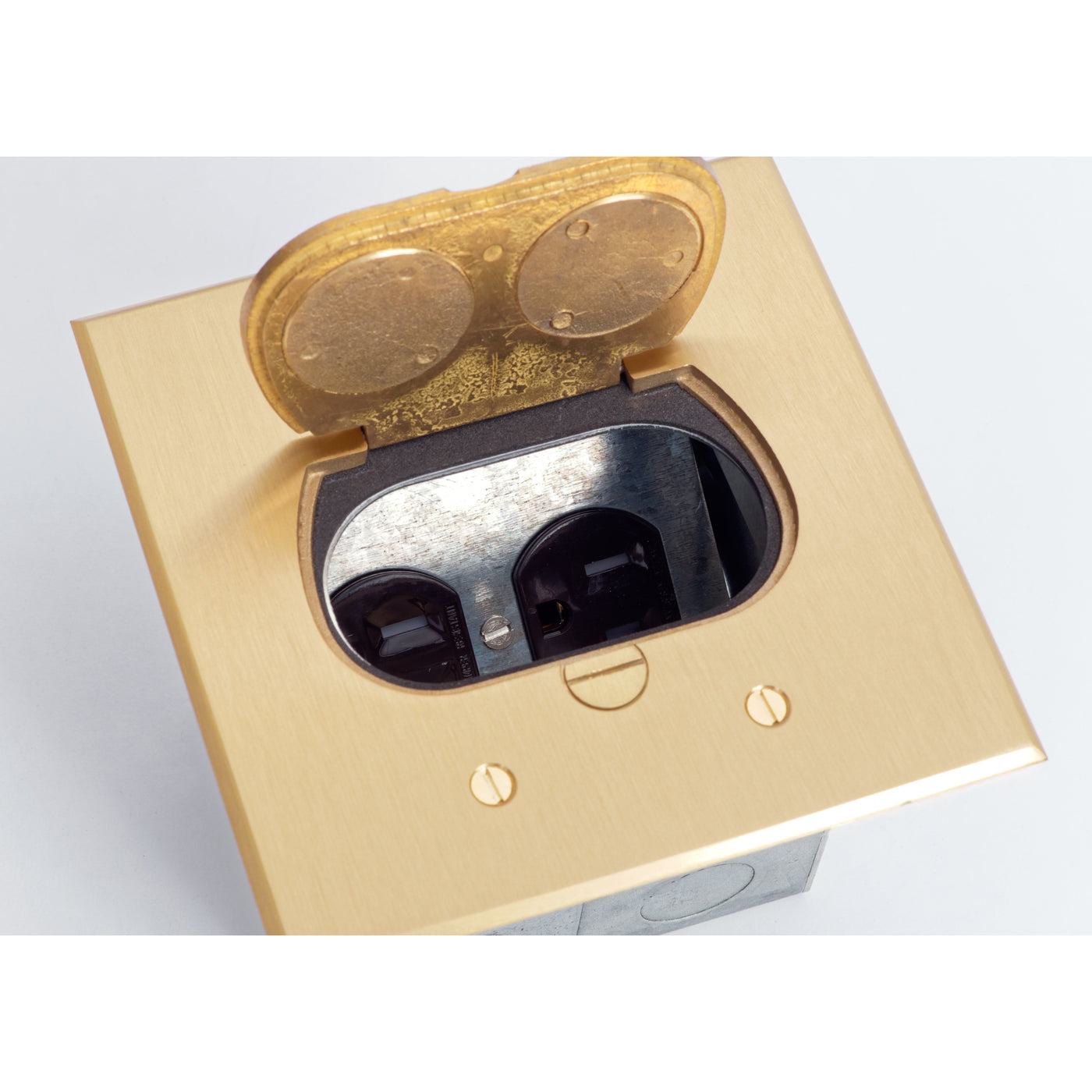

Two 15A Tamper Resistant Plugs

Plug one or two cord ends into a single duplex outlet, the receptacle is rated at 15 Amps and has tamper proof plugs for safety to meet code. The box is UL listed, and the outlet is UL listed to meet heavy duty requirements for display receptacles.

Compact Size and Easy Installation

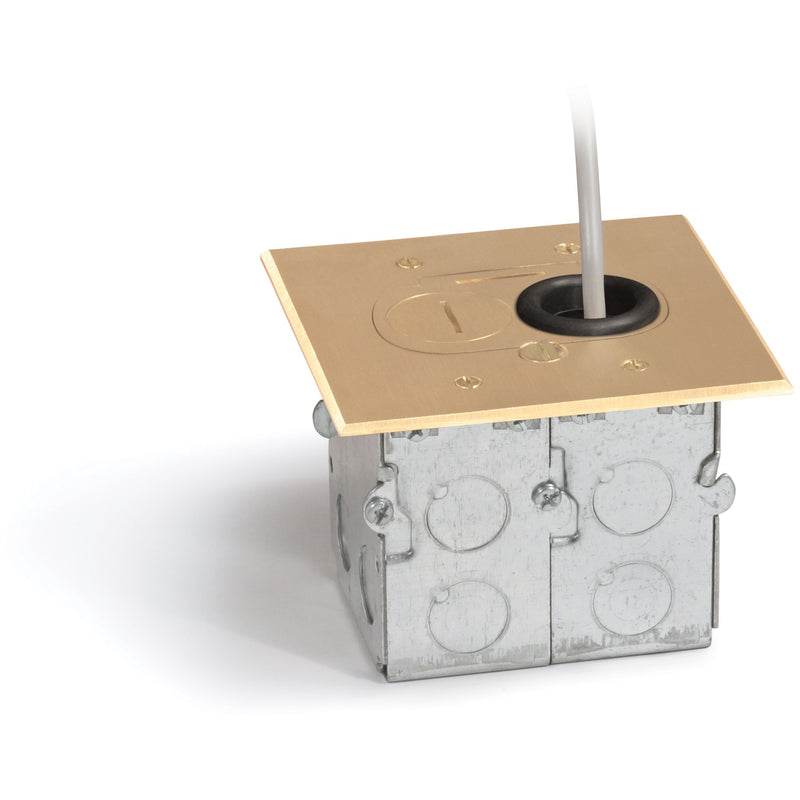

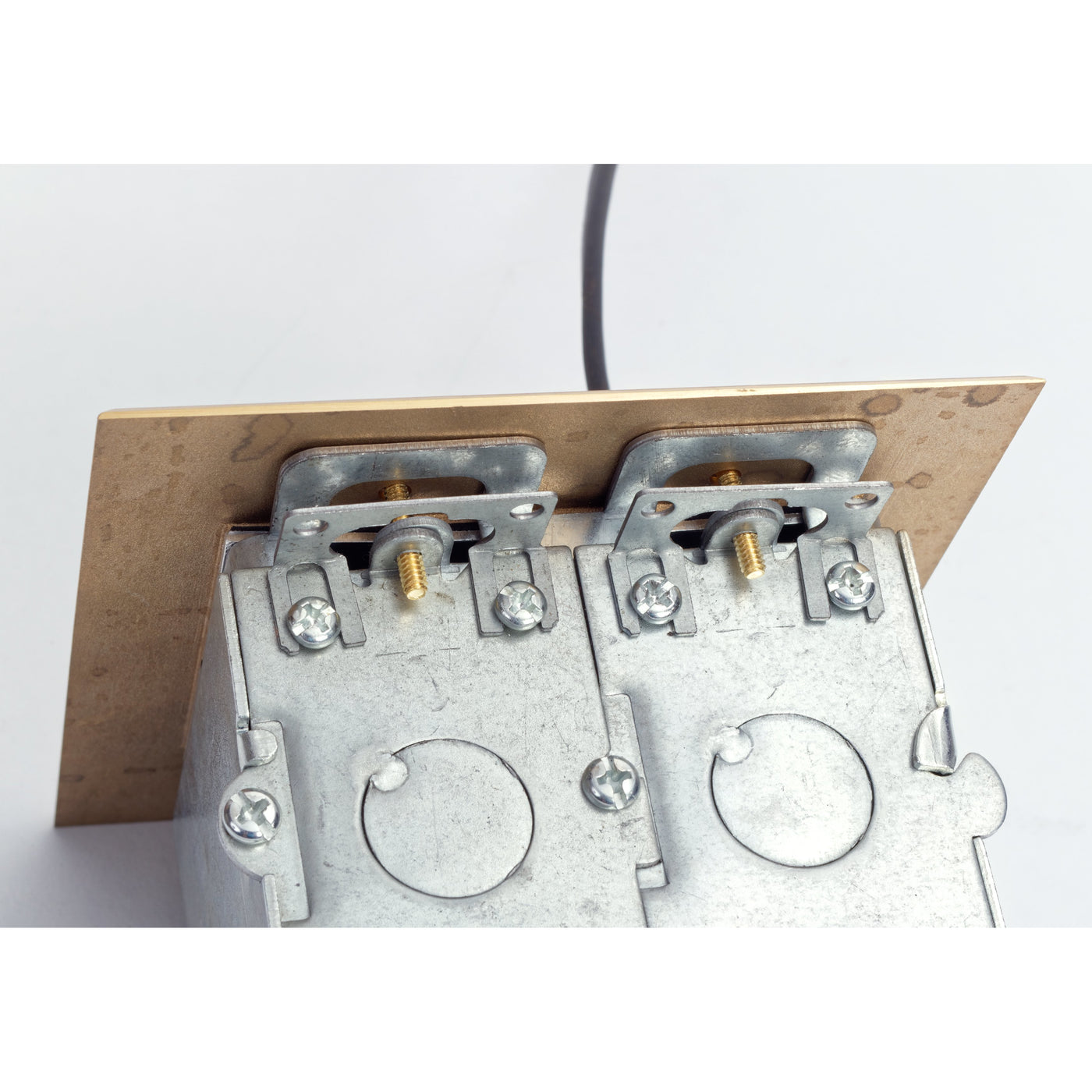

The box cover measures only 5” x 5” in size, and the real metal brass cover plate is only 1/8” thick. The box can be installed directly to the subfloor or routed into a finished floor such as a hardwood floor. The box has several knockouts to run your wire into, each long side has four ¾” knockouts, each short side has two ¾” knockouts, the bottom has two ¾” knockouts.

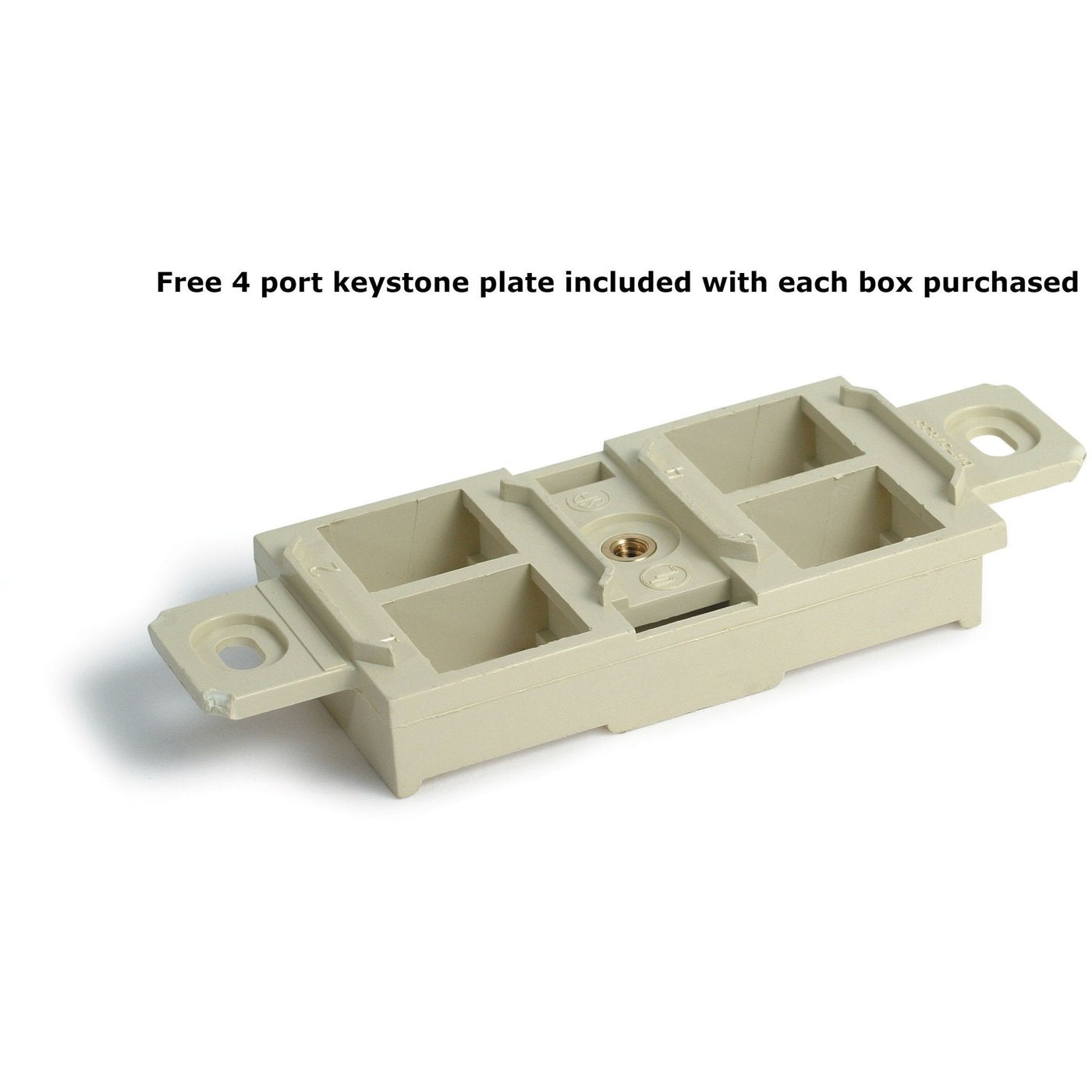

The floor box kit with everything you need including the back box, brass cover, receptacle, grommets, gaskets, and plate screws. The box also includes a 4-port keystone plate if you need to have data in the box instead of power.

This floor box is a simple and economical solution to provide your power below the surface of your floor with an attractive thin plate, and no unsightly plugs showing.

Specifications:

  • Plate: 1/8" brass
  • Outlet: 1 duplex 15A tamper proof

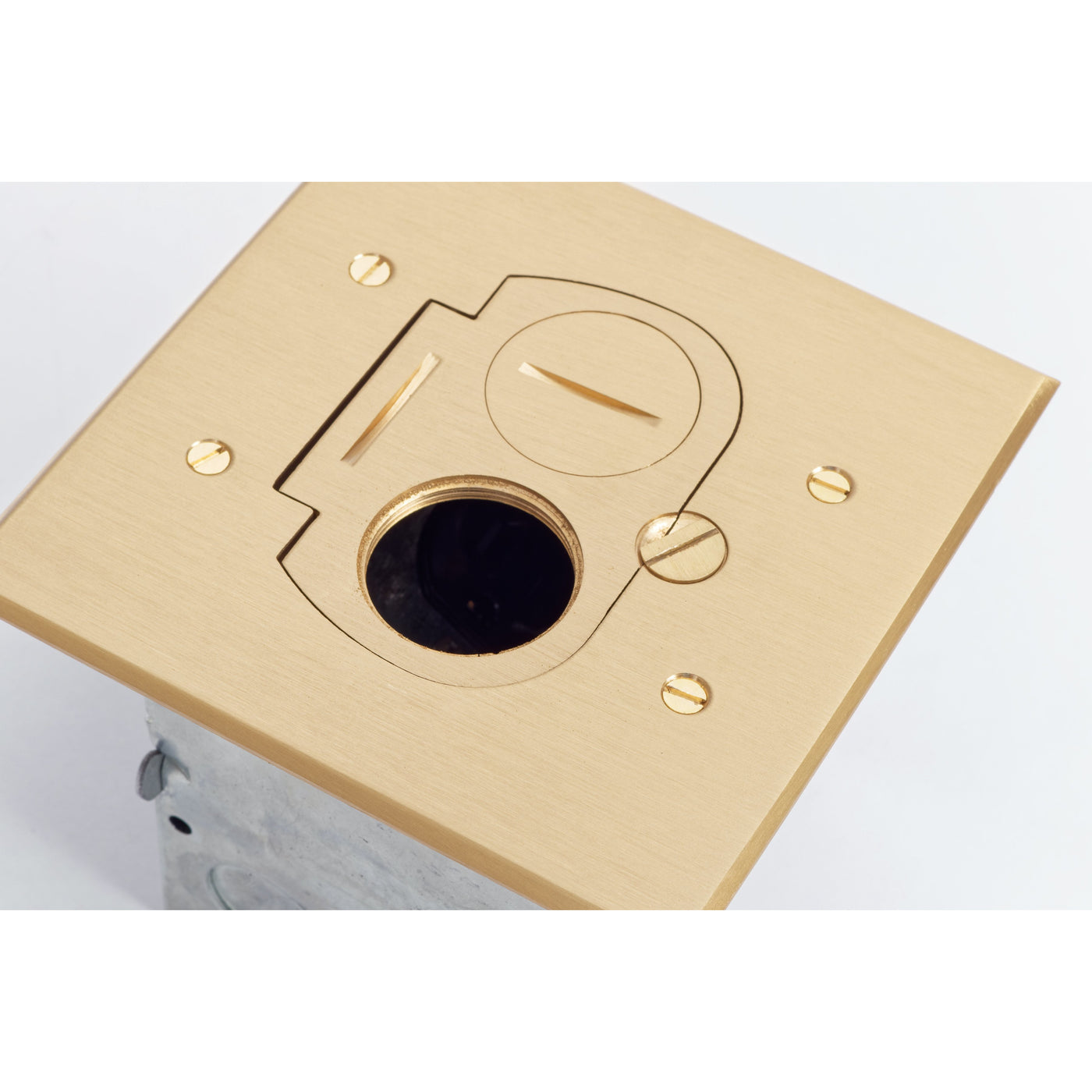

  • 2 screw plugs for access, 1.25"
  • Connect low in the box to hide your plugs
  • Attach to floor or route into finished floor
  • Box UL # E345966
  • Outlet UL # E333616
  • Meets NEMA WD1-1983 requirement
  • Several knockouts for conduit
  • Includes plate screws
  • Cover size:  5" x 5"
  • Back box size:  4"L x 3"W x 3.5"H
  • Cutout size: Can't exceed 4 1/8" x 3 1/2"
  • Size:  1 gang
  • Warranty:  1 year

Lew Electric RCFB-1 Installation Instructions (PDF)

Plate: 1/8" brass
Outlet: 1 duplex 15A tamper proof
2 screw plugs for access, 1.25"
Connect low in the box to hide your plugs
Attach to floor or route into finished floor
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  5" x 5"
Back box size:  4"L x 3"W x 3.5"H
Cutout size: Can't exceed 4 1/8" x 3 1/2"
Size:  1 gang
Warranty:  1 year

Questions & Answers

Ask a Question
  • What is the total height above finished floor?

    The cover plate thickness that sits on the floor is 1/8".

  • Can both sides be Ethernet Cat 6 connections?

    The unit ships with a 4 port keystone plate. So you can take out the power and then have up to 4 Cat6 connections.

  • What are the hole opening sizes?

    They are 1.25"
