Concealed Plug Recessed Floor Box, One Duplex, Screw Plugs, Aluminum

3   |   Q&A

$113.06

Free shipping on orders over $99

Part #: RCFB-1-A
Vendor: Lew Electric
In stock! Ships same business day from Chicago if ordered by 1:30EST
Maximum quantity available reached.

The Lew Electric RCFB-1-A is the only recessed floor box on the market that allows the user to hide the plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground.

Eliminate Tripping Hazards with a Concealed Plug Floor Box

Now you can safely eliminate dangerous plugs from being above ground with no tripping hazards. Since they can’t be kicked by feet anymore, you don’t have to worry about breaking the cord plug, or the outlet that the cord was plugged into. Since the plugs are hidden down in the box, there is no more cluttered mess to look at.  This box is perfect for hiding under a rug, since the plugs won’t be in the way.  Use for permanently plugged in devices through the grommet holes, or use the lid or screw plugs to access the power.

UL Listed Watertight Box with Two 15A Tamper Resistant Plugs

Plug one or two cord ends into a single duplex outlet, the receptacle is rated at 15 Amps and has tamper proof plugs for safety to meet code. The box is UL listed, and the outlet is UL listed to meet heavy duty requirements for display receptacles. The box has achieved a watertight rating, there is a 1/16” neoprene rubber gasket between the receptacle and plate.

Compact Size and Easy Installation

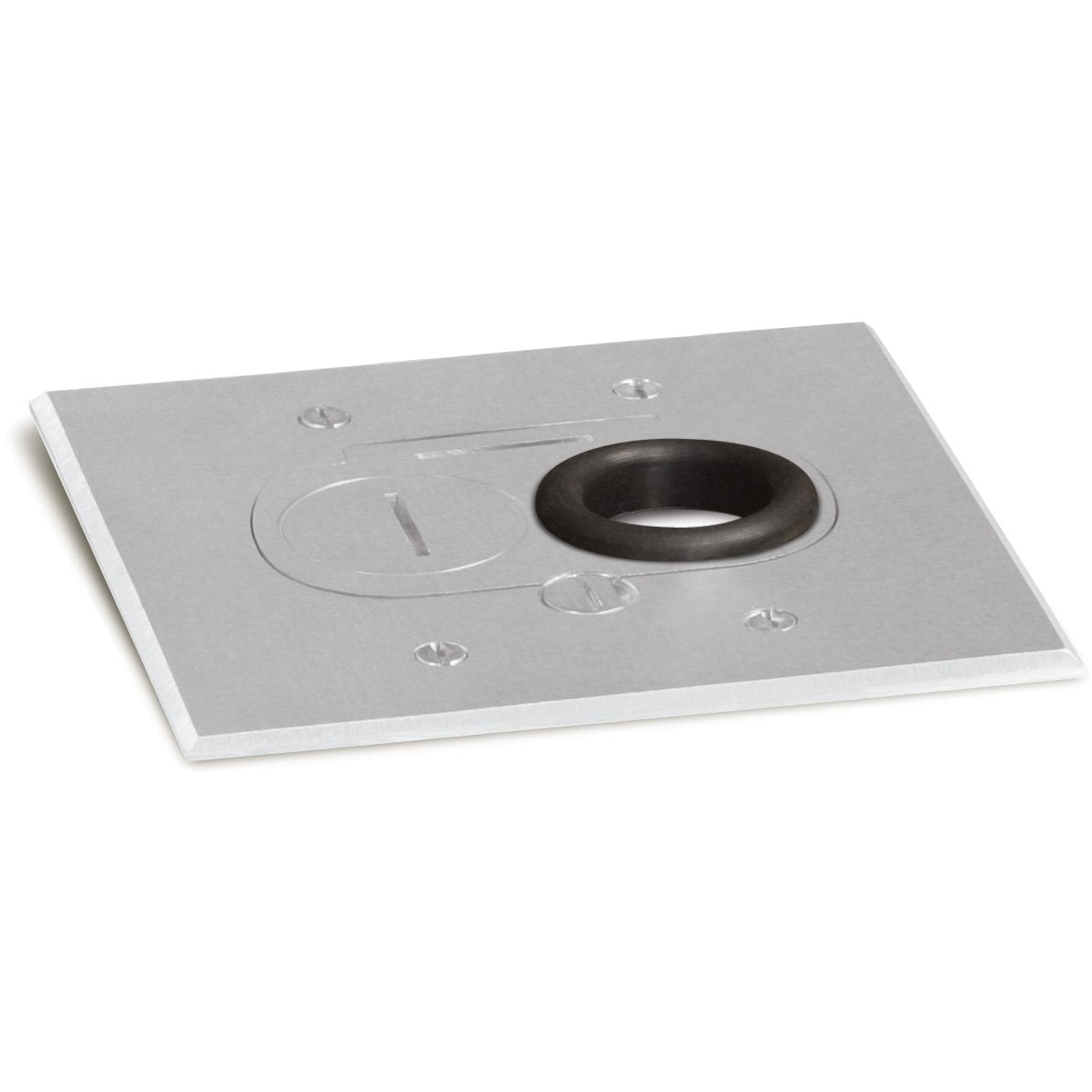

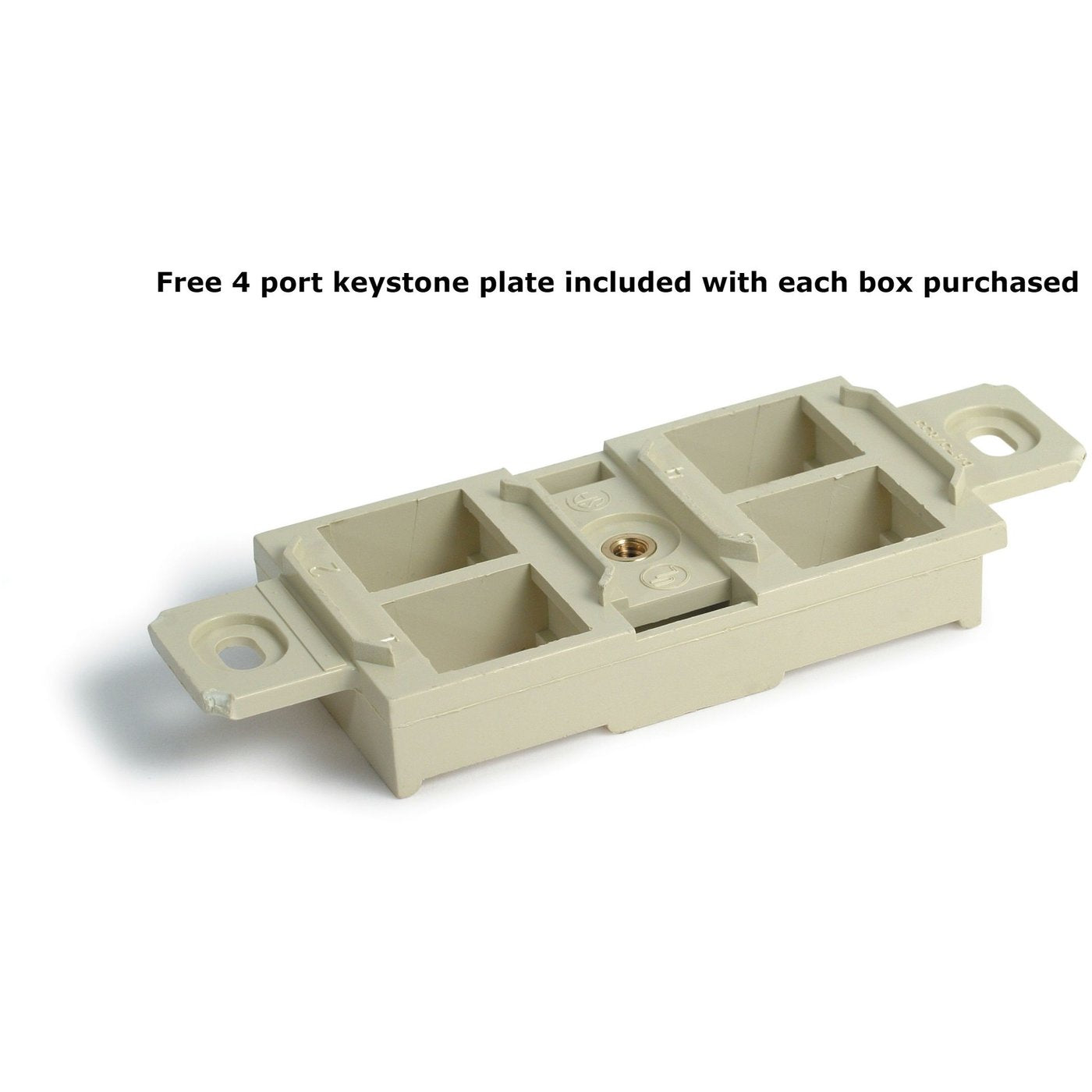

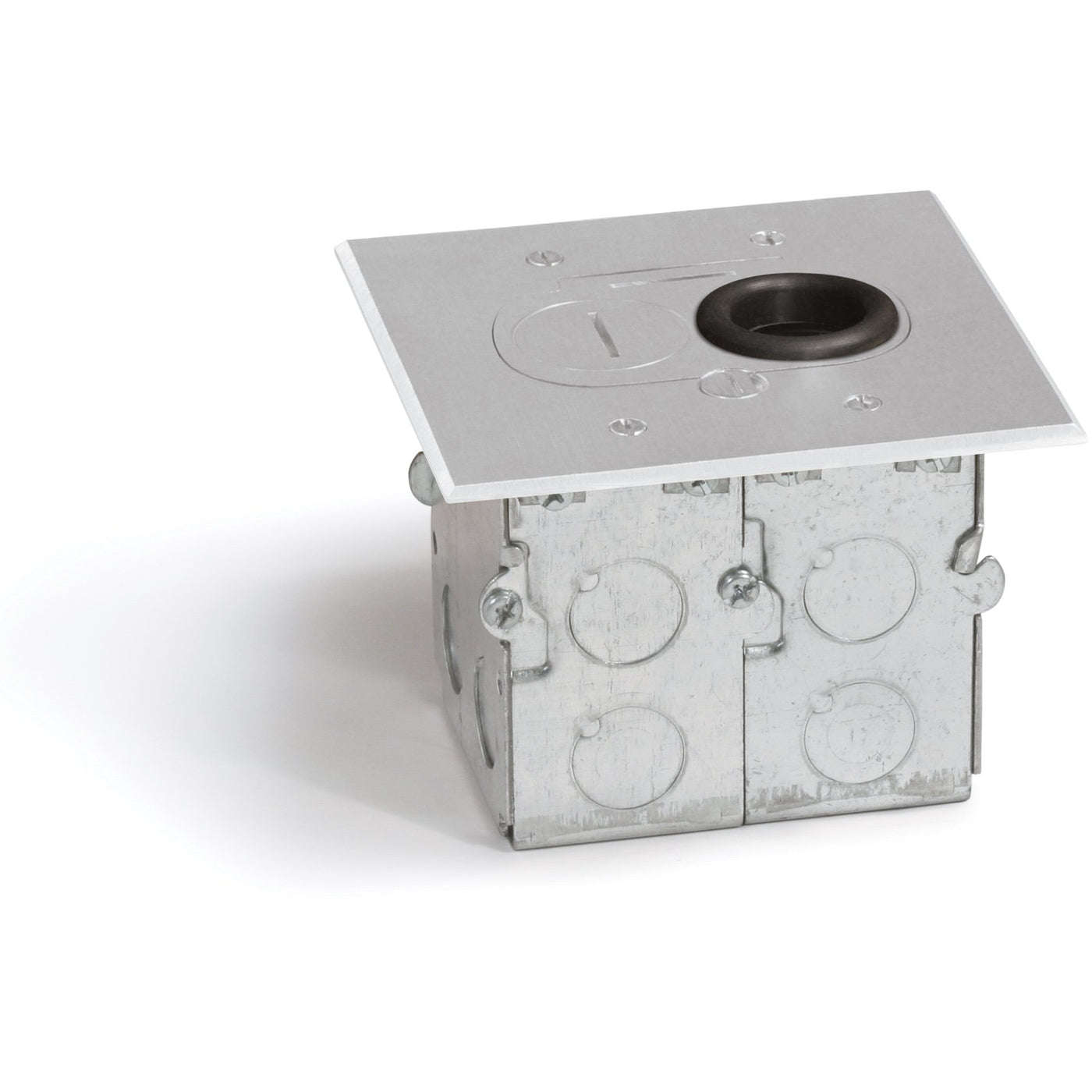

The box cover measures only 5” x 5” in size, and the real metal aluminum cover plate is only 1/8” thick. The box can be installed directly to the subfloor or routed into a finished floor. The box has several knockouts to run your wire into, each long side has four ¾” knockouts, each short side has two ¾” knockouts, the bottom has two ¾” knockouts. The kit includes the back box, aluminum cover, receptacle, gaskets, and plate screws. The box also includes a 4-port keystone plate if you wish to have data in the box instead of power.

This floor box is a simple and economical solution to provide your power below the surface of your floor with an attractive thin plate, and no unsightly plugs showing.

Plate: 1/8" aluminum
Outlet: 1 duplex 15A tamper proof
2 screw plugs for access, 1.25"
Connect low in the box to hide your plugs
Watertight assembly
Attach to floor or route into finished floor
Includes 1/16" neoprene rubber gasket
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  5" x 5"
Back box size:  4"L x 3"W x 3.5"H
Cutout size: Can't exceed 4 1/8" x 3 1/2"
Size:  1 gang
Warranty:  1 year

Plate: 1/8" aluminum
Outlet: 1 duplex 15A tamper proof
2 screw plugs for access, 1.25"
Connect low in the box to hide your plugs
Watertight assembly
Attach to floor or route into finished floor
Includes 1/16" neoprene rubber gasket
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  5" x 5"
Back box size:  4"L x 3"W x 3.5"H
Cutout size: Can't exceed 4 1/8" x 3 1/2"
Size:  1 gang
Warranty:  1 year
