Arlington FLBR5420BL Recessed Power and Data Round Floor Box, Black

  |   Q&A

$80.99

Free shipping on orders over $99

Part #: FLBR5420BL
Vendor: Arlington
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

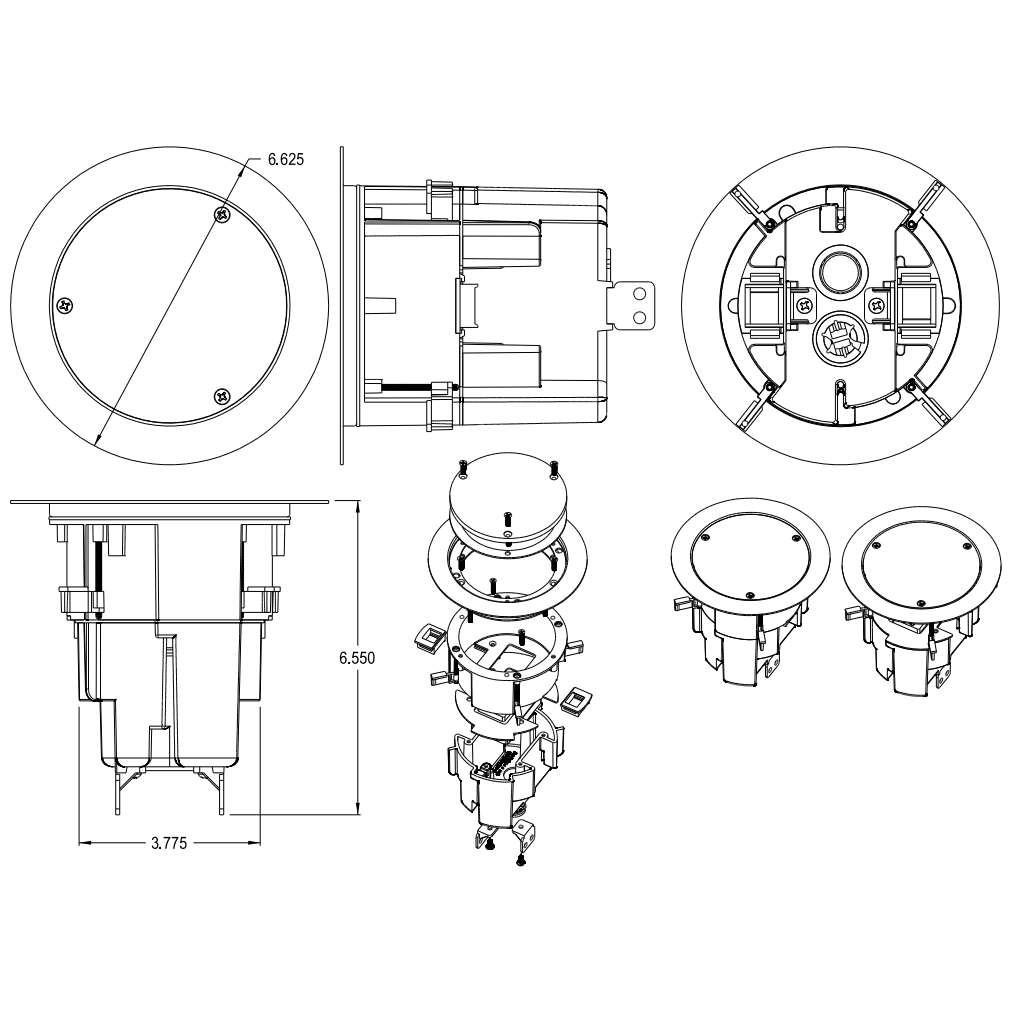

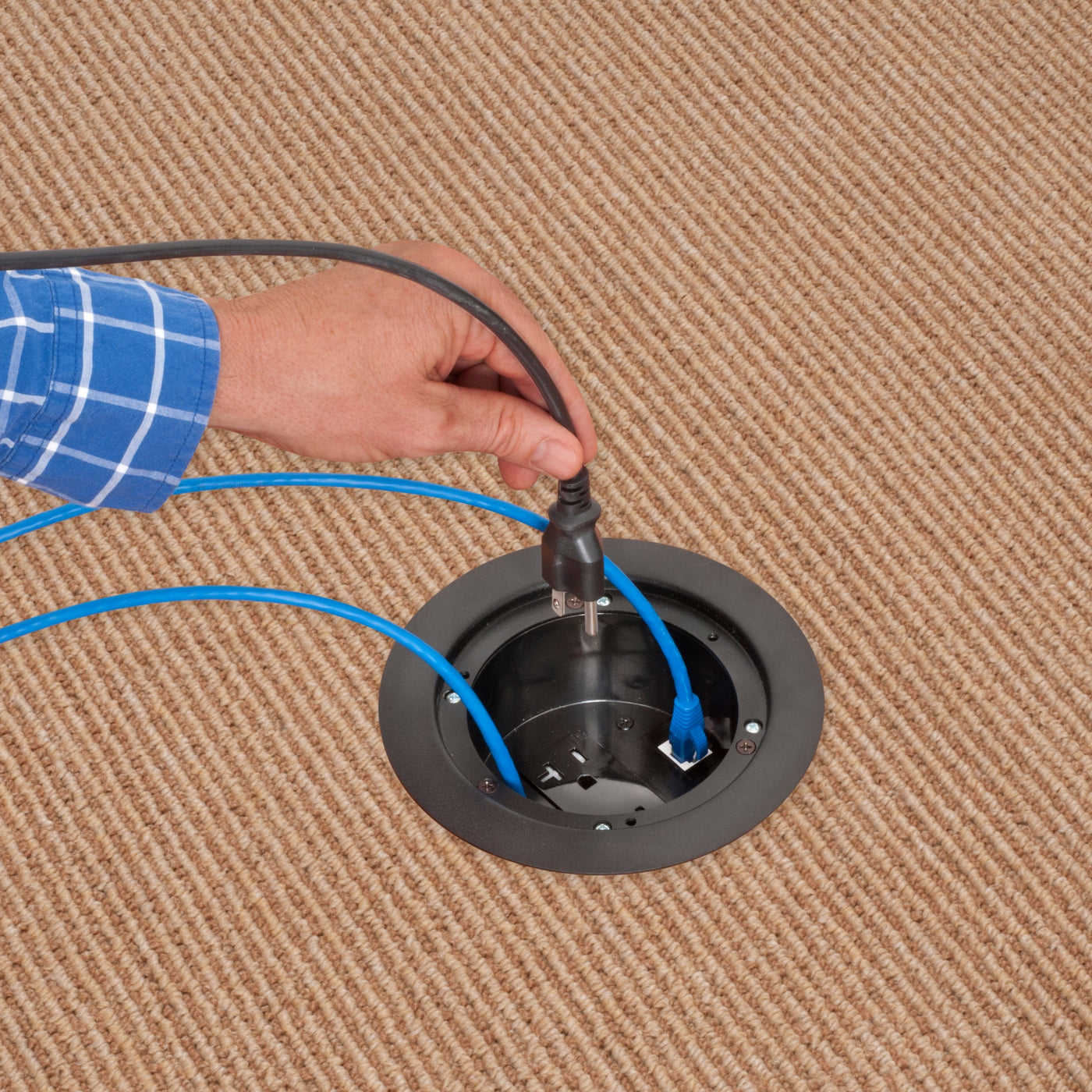

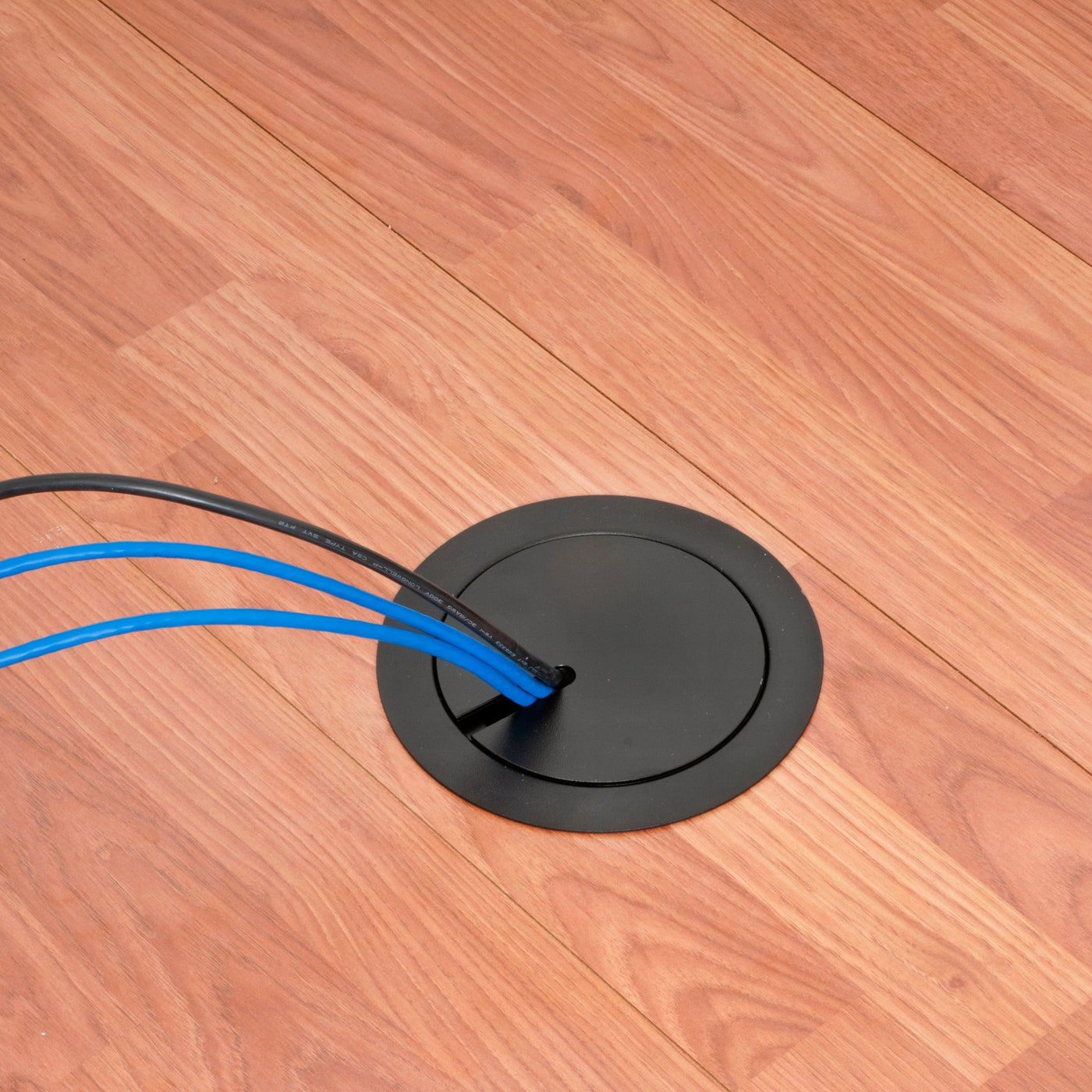

The Arlington FLBR5420BL is a round electrical floor box that features a duplex outlet, and 2 keystone openings. There is an integrated divider for the power and data so a divider doesn't need to be added. The 24.5 cubic inch back box is plastic and the cover is metal powder-coated in a durable black finish, there is a slot in the cover that allows cables to pass through with the cover installed. The power and low voltage connections are recessed in the box so the plugs remain low in the box, only the cables will stick out. The cover size is 6.625", and the depth of the box is 6.55". The top cover is incredibly thin at only .067" thick.

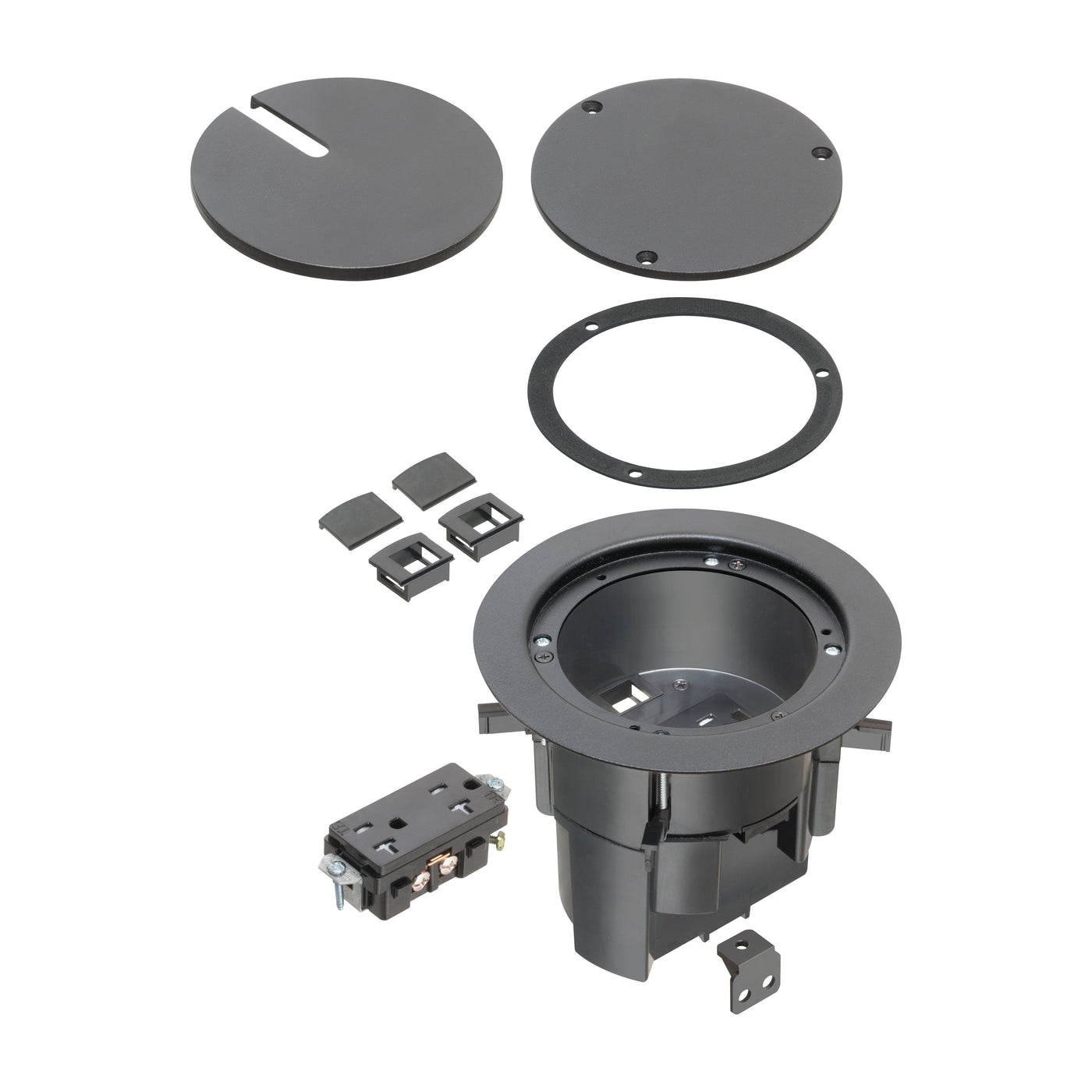

The box is installed in a finished floor with a 5" hole, installation is completed with the four mounting wing screws that secure the box to the floor. The kit includes the box, cover gasket, 20 Amp TR receptacle, two keystone holders with blanks, a solid cover, and a slotted cover.

Specifications:

  • Round metal cover: Black powder-coated
  • Slotted cover for cable pass-through
  • Outlet:  One duplex 20A, TR
  • Two keystone openings
  • Built-in divider
  • UL listed
  • Interior capacity:  24.5 cubic inches
  • Cover dimensions:  6.25" round
  • Cutout dimensions:  5" round
  • Depth:  6.55"
  • Cover thickness: .067"
  • Box material: Polymer
  • Made in the USA
  • Indoor installations only
  • 4 wing clamps secure box to sub floor
  • Warranty:  1 year

Brochure (PDF)
Installation Instructions (PDF)


Round metal cover: Black powder-coated
Slotted cover for cable pass-through
Outlet:  One duplex 20A, TR
Two keystone openings
Built-in divider
UL listed
Interior capacity:  24.5 cubic inches
Cover dimensions:  6.25" round
Cutout dimensions:  5" round
Depth:  6.55"
Cover thickness: .067"
Box material: Polymer
Made in the USA
Indoor installations only
Warranty:  1 year
