FL-1200 Raised Access Floor Box, Single Gang, Hinged Lid, Black| Q&A
Free shipping on orders over $99

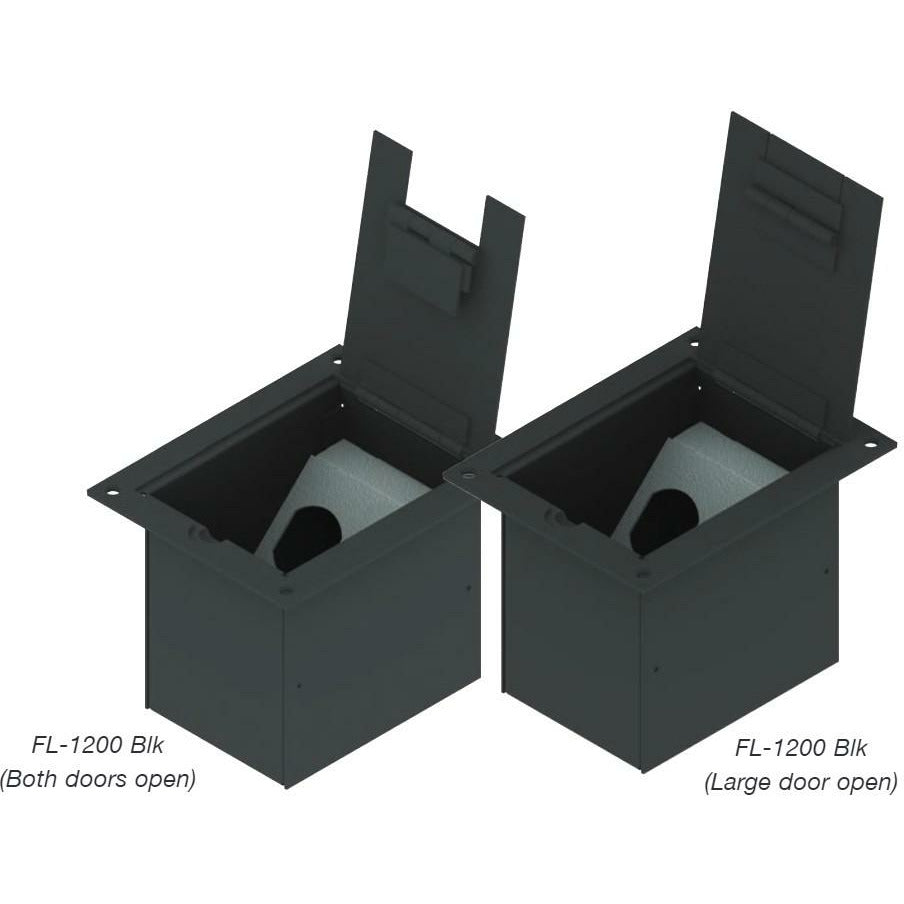

The FSR FL-1200 is a raised access floor box designed for wooden stages or computer floors. The hinged lid provides quick access to the inside of the box. On the lid is an additional hinged door that allows cables to pass through with the door closed. The cover is painted with a durable black sandtex paint that is skid proof.

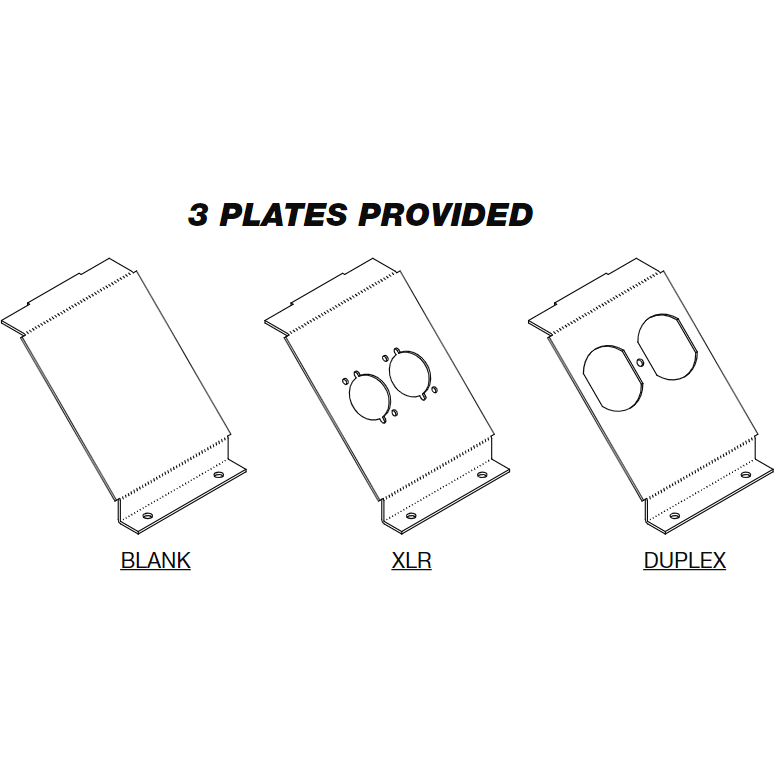

Inside the box you will find two knockout plates, on in the rear and one on the bottom that can accept 1/2" or 3/4" knockouts. The box is shipped with 3 different plates to get the perfect configuration inside the box. The internal plates can be changed at any time by simply removing two screws.
Plate #1. Has openings for two Switchcraft D XLR male of female connectors.
Plate #2. Has openings for one duplex receptacle
Plate #3. Is a blank plate that allows the user to punch out the opening that they need.
Small in Size and Easy to Install

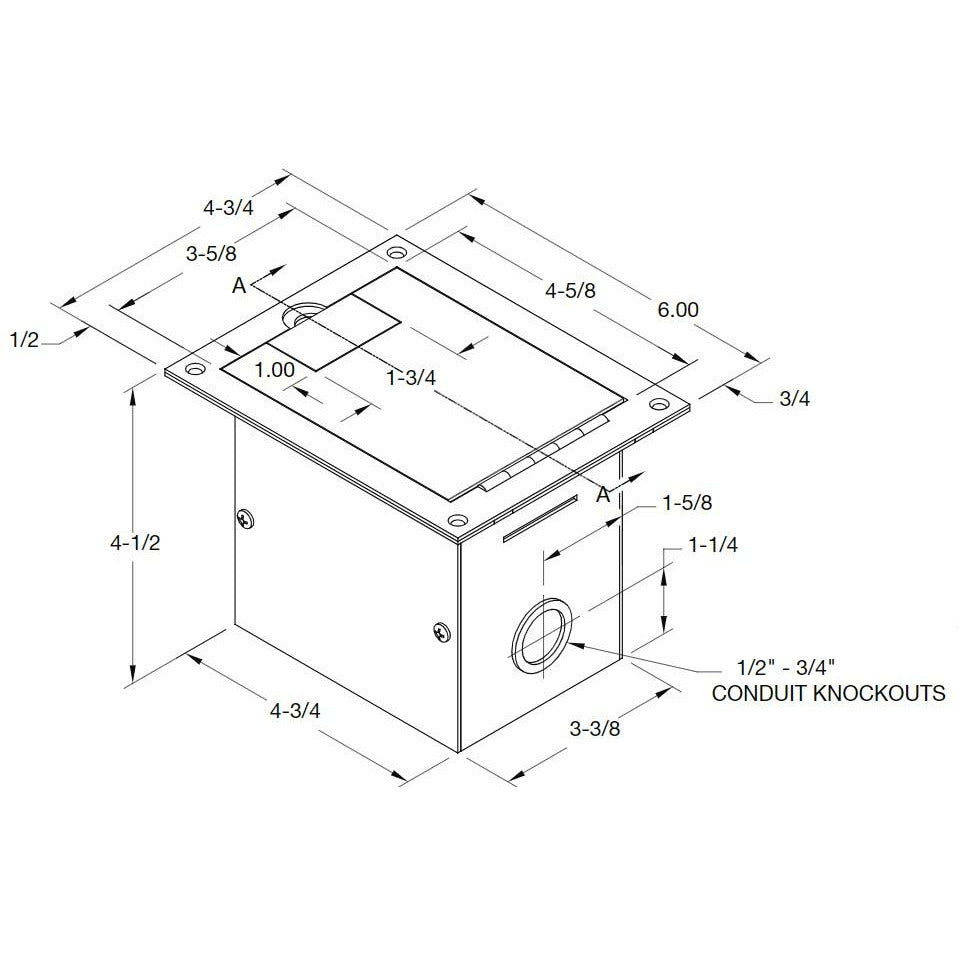

The box is extremely sturdy since it is a one piece all welded design. The box is extremely small, the top cover is 6" x 4.75" and is 1/8" thick. To install cut a hole that is 4.75" x 3.5", then use four screws to secure to the floor.
- Top: Black 1/8" thick cover
- Room for 1 internal plate
- Comes with 3 different internal plates
- Hinged lid cover, with hinged lid opening in cover
- Depth: 4.5"
- 2 knockouts on rear and bottom, 1/2" or 3/4"
- One piece all welded design
- Box size: 4 5/8" L x 3 3/8" W x 4 1/2" H
- Cover size: 6" L x 4 3/4" W
- Cutout size: 4.75" x 3.5"
- 1 year warranty
- FSR part # 10087
- Not UL listed
- Made in the USA
Top: Black 1/8" thick cover
Room for 1 internal plate
Comes with 3 different internal plates
Hinged lid cover, with hinged lid opening in cover
2 knockouts on rear and bottom, 1/2" or 3/4"
One piece all welded design
Box size: 4 5/8" L x 3 3/8" W x 4 1/2" H
Cover size: 6" L x 4 3/4" W
Not UL listed
Made in the USA
