Concealed Plug Recessed Floor Box, 2 Outlets, Hidden Plugs, Dark Bronze
59 | Q&A$319.00
Free shipping on orders over $99
The Lew Electric RCFB-2-DB is the only recessed floor box on the market that allows the user to hide 4 plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground. The cover is real metal and is a dark bronze color that is perfect for blending into dark floors.
Eliminate Tripping Hazards with a Concealed Plug Floor Box
Now you can safely eliminate dangerous plugs from being above ground with no tripping hazards. Since they can’t be kicked by feet anymore, you don’t have to worry about breaking the cord plug, or the outlet that the cord was plugged into. Since the plugs are hidden down in the box, there is no more cluttered mess to look at. This box is perfect for hiding under a rug, since the plugs won’t be in the way. Use for permanently plugged in devices through the grommet holes, or use the lid or screw plugs to access the power.
Four 15A Tamper Resistant Plugs
Plug one to four cord ends into two duplex outlets, the receptacles are rated at 15 Amps and has tamper proof plugs for safety to meet code. The box is UL listed, and the outlet is UL listed to meet heavy duty requirements for display receptacles.
Compact Size and Easy Installation
The box cover measures only 8.5” x 5” in size, and the real metal dark bronze cover plate is only 1/8” thick. The box can be installed directly to the subfloor or routed into a finished floor. The box has several knockouts to run your wire into, each long side has eight ¾” knockouts, each short side has four ¾” knockouts, and the bottom has four ¾” knockouts.

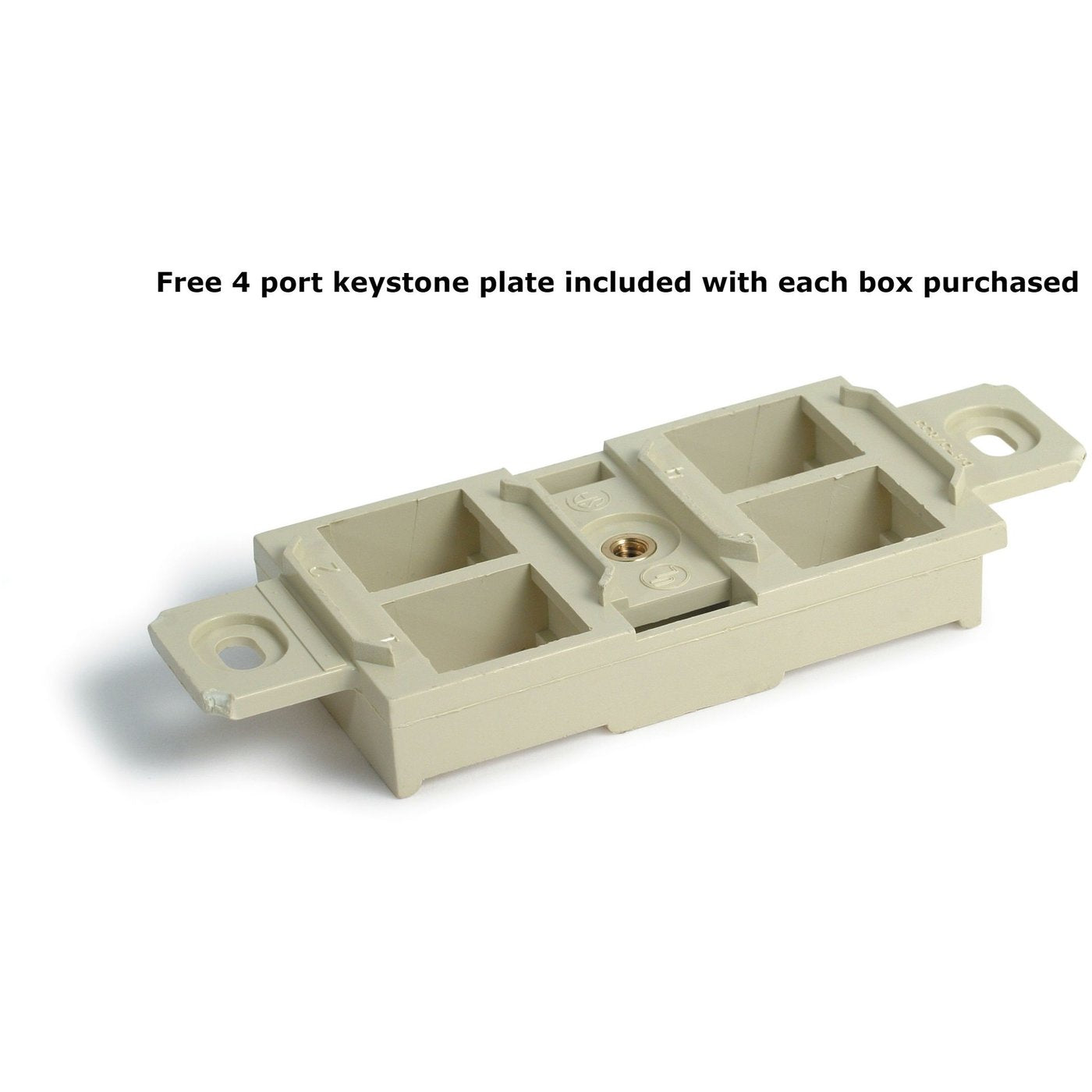

The floor box kit with everything you need including the back boxes, dark bronze cover, receptacles, grommets, gaskets, and plate screws. The box also includes a 4-port keystone plate if you need to have data in the box instead of power.
This floor box is a simple and economical solution to provide your power below the surface of your floor with an attractive thin plate, and no unsightly plugs showing.
Specifications:

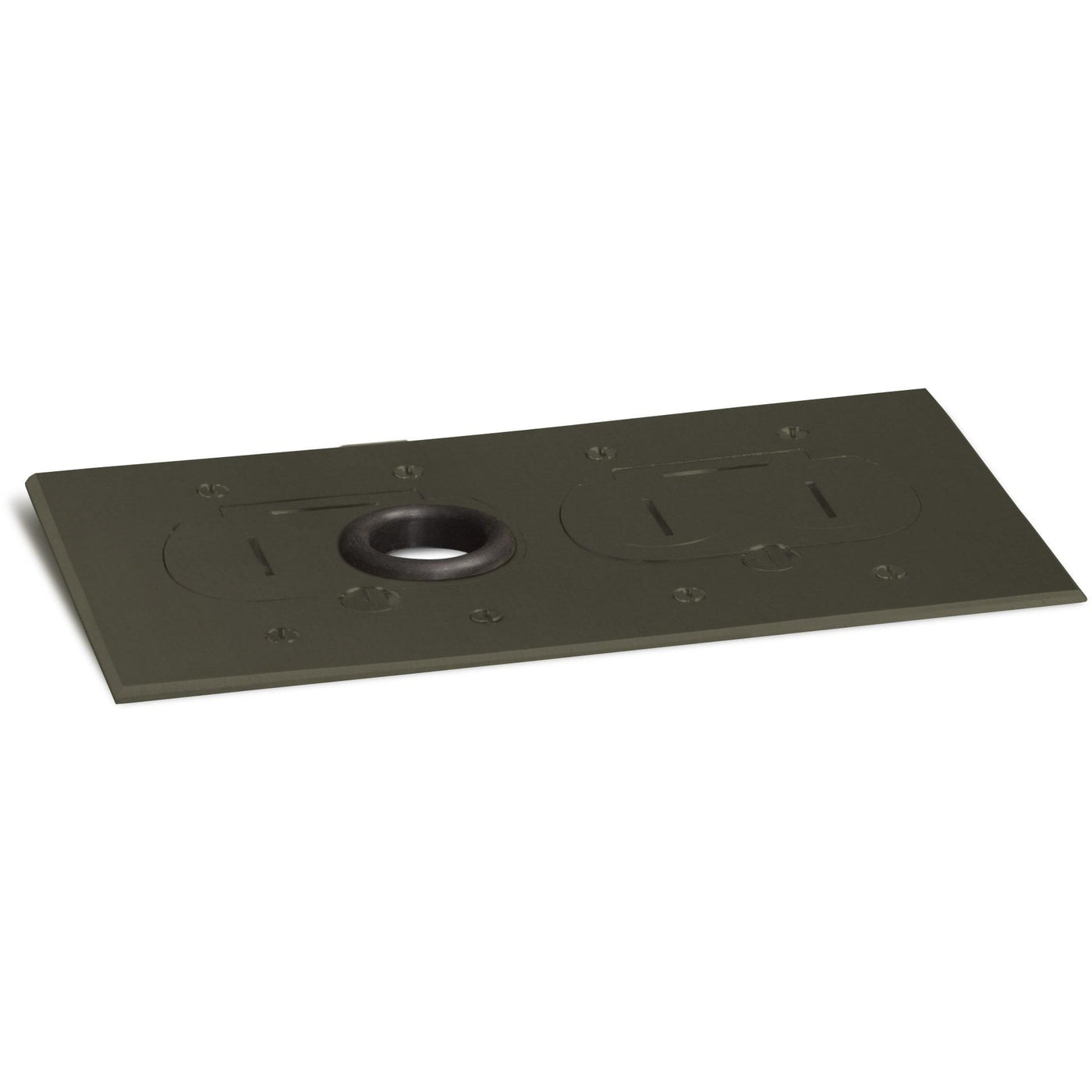

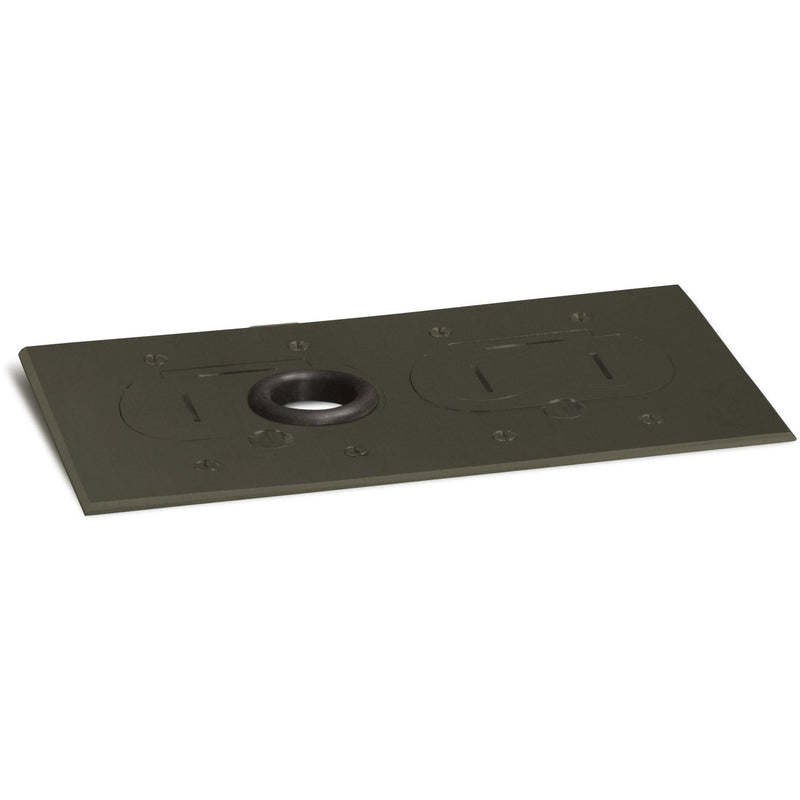

Plate: 1/8" dark bronze
Outlet: 2 duplexes, 15A tamper proof
4 screw plugs for access, 1.25"
Connect low in the box to hide your plugs
Attach to floor or route into finished floor
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size: 8.5" x 5"
Back box size: 7.5"L x 3"W x 3.5"H
Cutout size can't exceed: 7 7/8" x 3 3/8"
Size: 2 gang, dividers included
Warranty: 1 year
Lew Electric RCFB-2-DB Drawing (PDF)
Lew Electric RCFB-2-DB Installation Guide (PDF)
Plate: 1/8" dark bronze
Outlet: 2 duplexes, 15A tamper proof
4 screw plugs for access, 1.25"
Connect low in the box to hide your plugs
Attach to floor or route into finished floor
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size: 8.5" x 5"
Back box size: 7.5"L x 3"W x 3.5"H
Cutout size can't exceed: 7 7/8" x 3 3/8"
Size: 2 gang, dividers included
Warranty: 1 year
Lew Electric RCFB-2-DB Drawing (PDF)
Lew Electric RCFB-2-DB Installation Guide (PDF)
Shipping Policy
Orders totaling $99 or more ship for free via UPS ground to the Contiguous USA "lower 48". Orders in stock are shipped same day from Boise, ID if ordered by 5pm EST.
Return Policy
If you are not completely satisfied with your purchase you may return this item for a full refund of the merchandise total within 30 days of delivery, non-returnable if installed; Please note that you are responsible for all return shipping charges unless the item is defective or damaged. Return credits are issued within 10 business days to your original method of payment once the item is received and inspected.
Return Eligibility
Items must be in new condition and in the original packaging to qualify for a full refund (please do not modify the product in any way). If these conditions are not met then the return could be subject to a restocking fee or the product sent back to sender.
Questions & Answers
Ask a Question-
We are ordering 2 of these but need to rough in now ... are these standard deep gangable boxes I can install now ? Or is there something special about them
These do have special installation instructions. You can find those by clicking on this link:
RCFB-2 INSTALLATION INSTRUCTIONS
Thanks!
