Flush Mounted Round Floor Box, One 15A Duplex, Flip Lids - Dark Bronze| Q&A
Free shipping on orders over $99
The Lew Electric 812-DFB-LR-DB is a flush mount cast iron floor box with a round dark bronze cover with two flips lids, and included power.
Flush to the Floor Power Box That is Small in Size

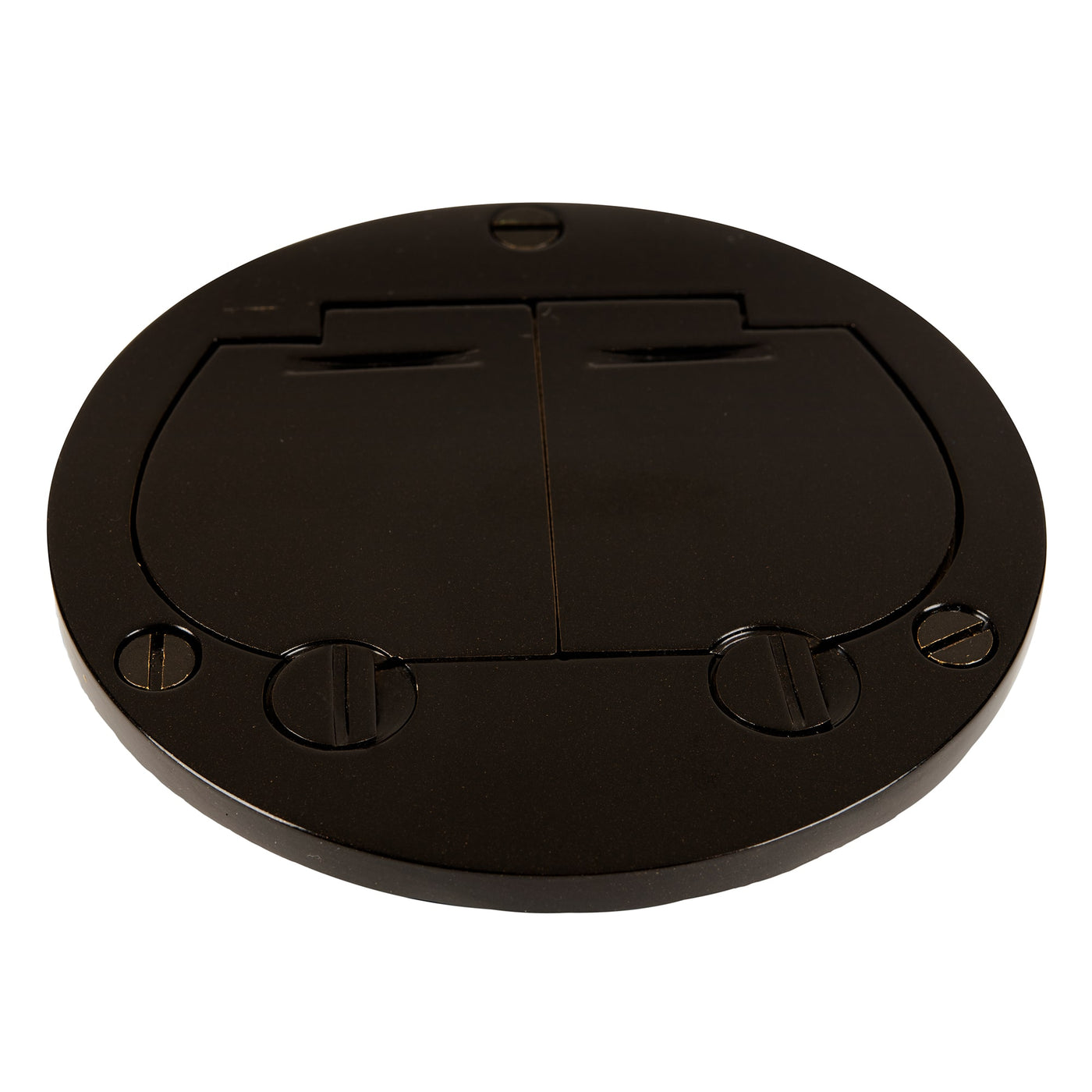

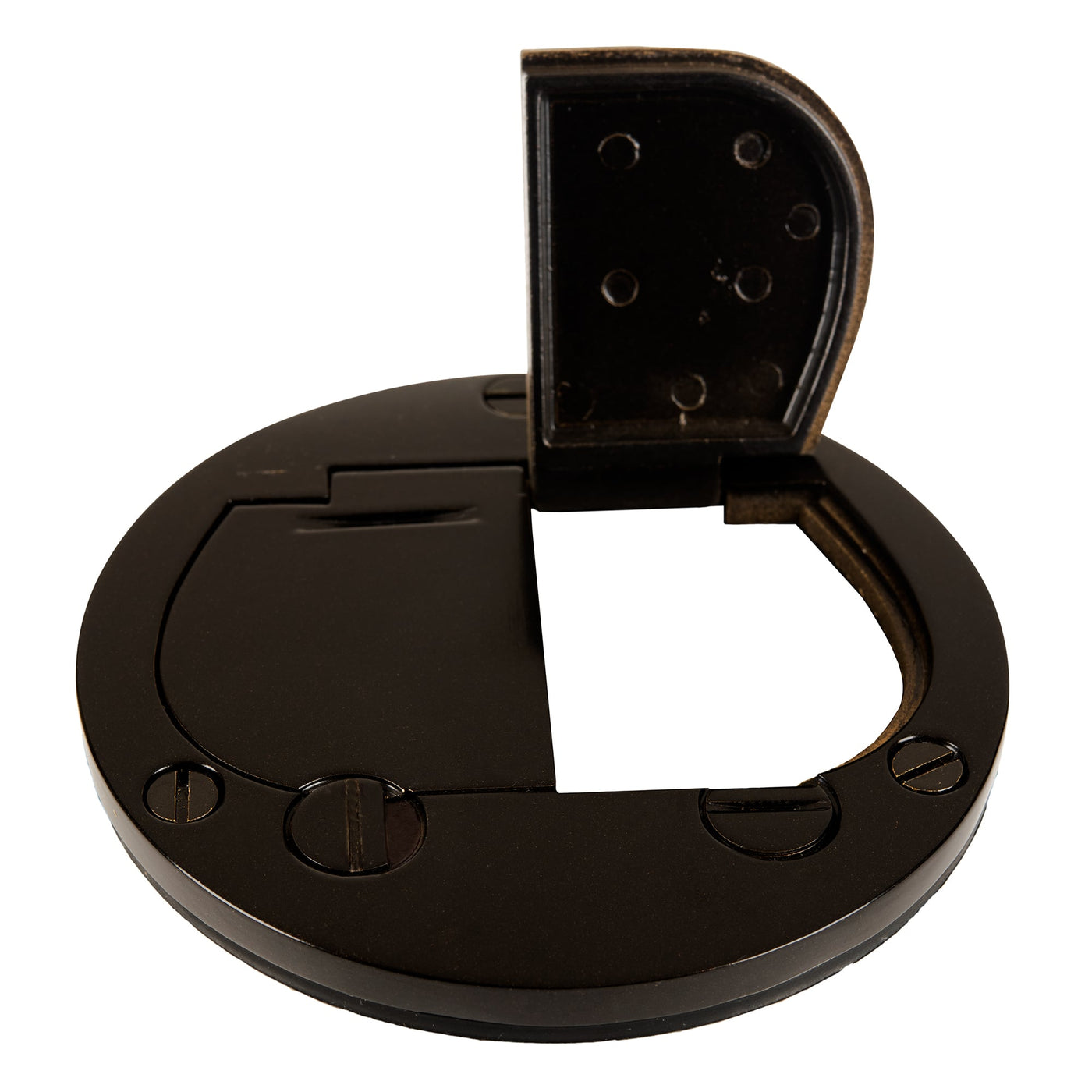

The box is designed to install flush in your floor creating a level surface for a nice clean look. The box recesses in the floor so it is perfectly even and seamless with the floor. This box eliminates tripping hazards since no part of the cover sticks up above the floor. The cover is a metal dark bronze color, the cover is metal and not plastic. The cover is extremely small measuring only 4” round. The top features two flip lids to gain access to each plug in the outlet.

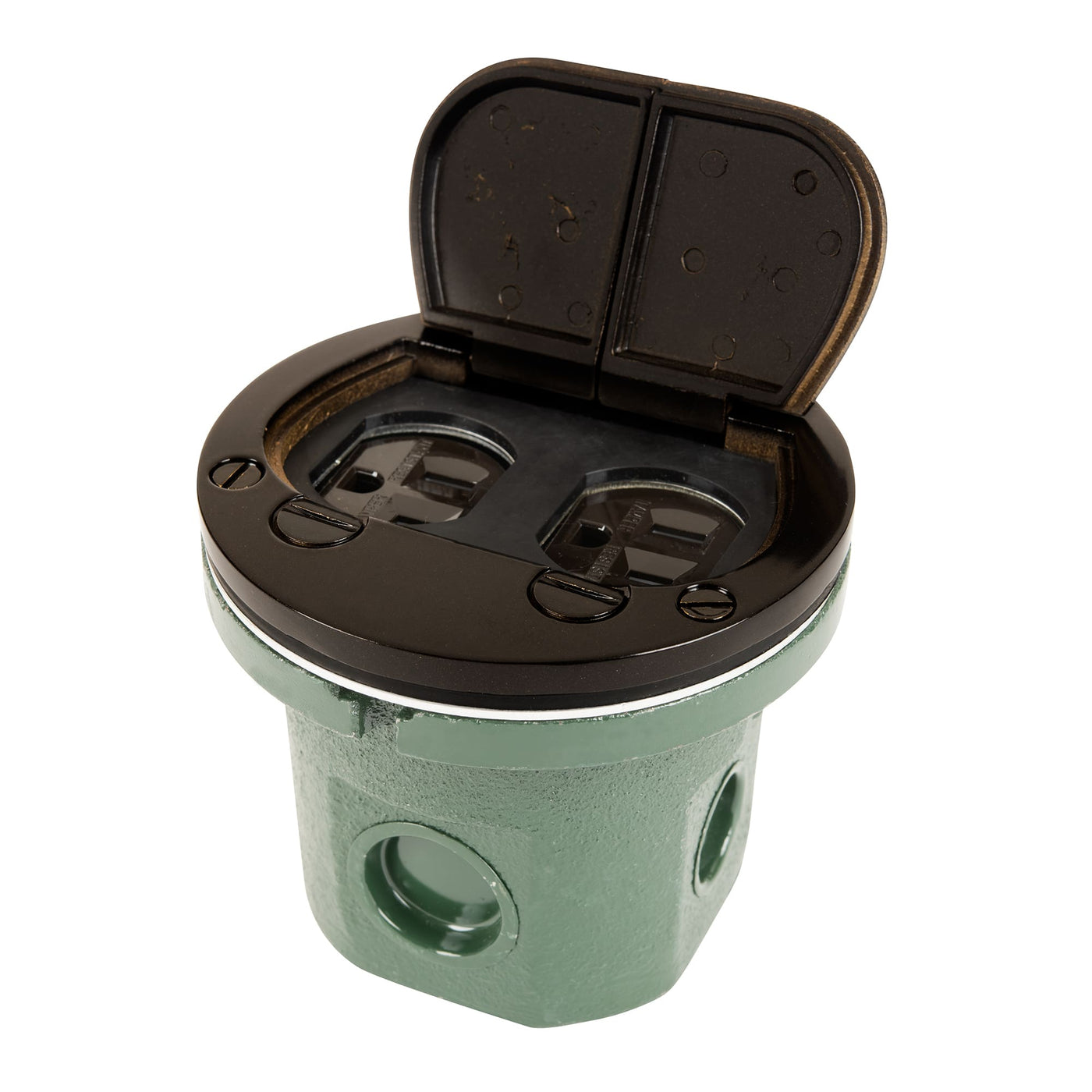

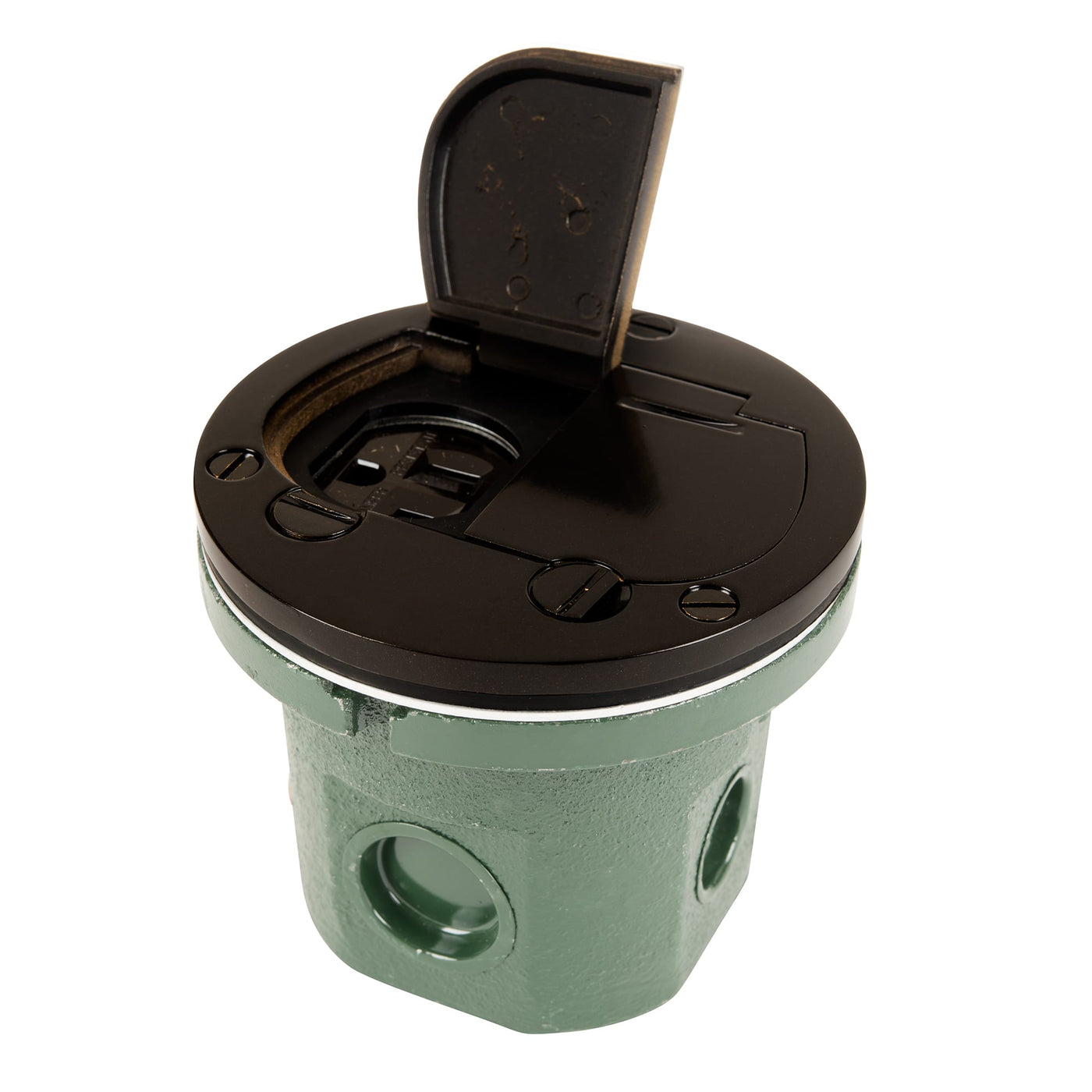

UL Listed Flush Floor Box and OutletInside the floor box is a single 15A duplex outlet with tamper proof plugs. You access the outlet through the 2 flip lids in the cover. The box is UL listed for the USA and cUL listed for Canada, the receptacle is UL listed making the entire box meet code. The box has two 3/4" knockouts, and two 1/2" knockouts to connect your wiring. The box was designed for wood floors, it can also be used with carpet by purchasing the sold separately SCF-1 carpet flange. The box can also be used in post construction concrete floors by coring out a 4.25" hole, and backfilling with concrete.
The floor box assembly is ready to install and includes the box, cover, receptacle, gasket, and cover screws. The floor box was designed to provide a flush and seamless look in your floor with power, use in residential or commercial installations.
- Cover: Dark bronze
- Outlet: 1 duplex 15A tamper proof
- 2 flip lids
- Flush mount into floor
- Box UL # 514A, cUL 22.2 #18.1-04
- Outlet UL # E333616
- Several knockouts for conduit
- Includes plate screws
- Cover size: 4" round
- Hole size: 3.5" round
- Depth: 3.14" deep
- Capacity: 14.5 cubic inches
- Warranty: 1 year
Cover: Dark bronze
Outlet: 1 duplex 15A tamper proof
2 flip lids
Flush mount into floor
Box UL # 514A, cUL 22.2 #18.1-04
Outlet UL # E333616
Several knockouts for conduit
Includes plate screws
Cover size: 4" round
Hole size: 3.5" round
Depth: 3.14" deep
Capacity: 14.5 cubic inches
Warranty: 1 year
