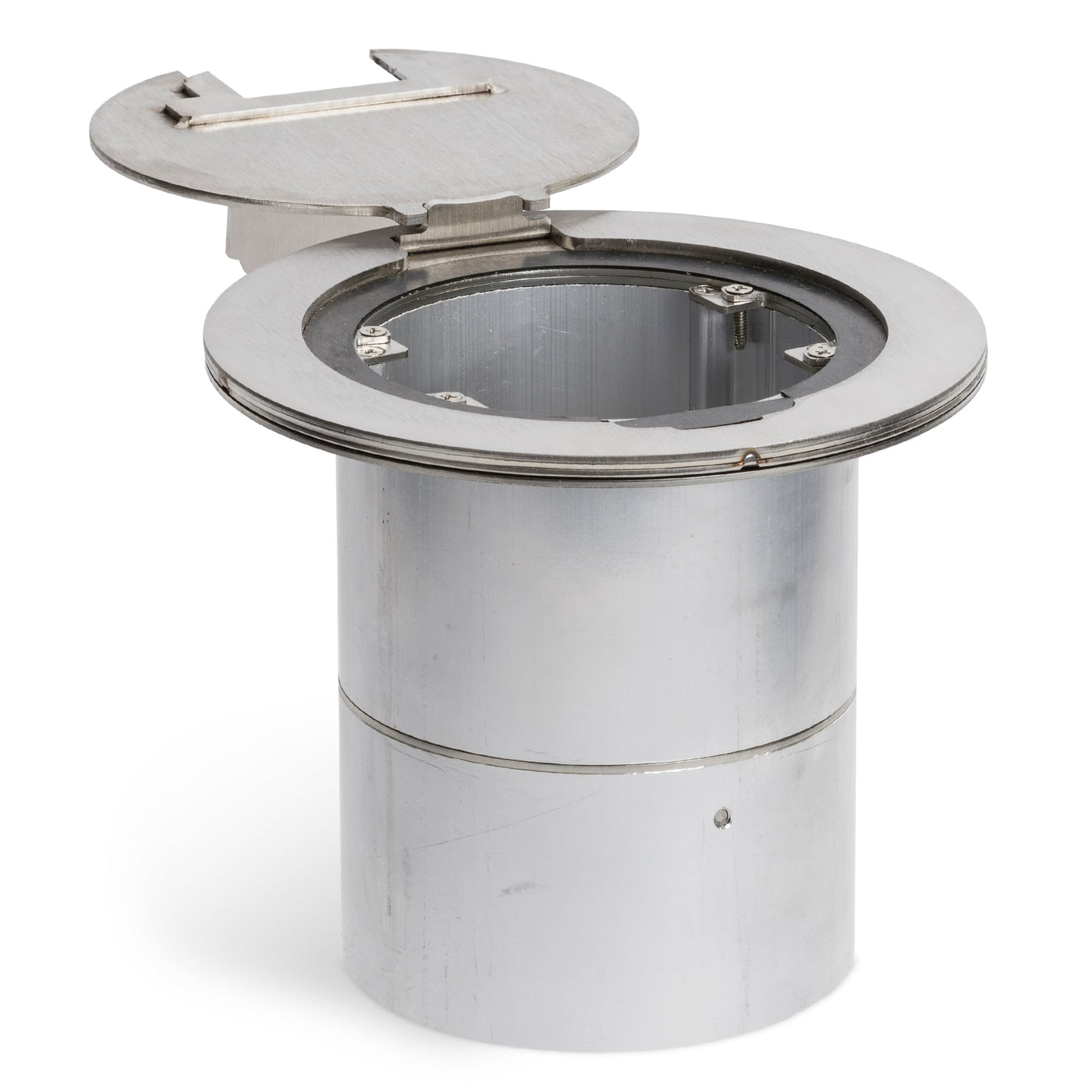

Round Poke Through Floor Box with Recessed Connections
The MOI-RES-PWR2-COMM6-SS is a poke-through style floor box that provides easy access to electrical power, voice, and data connections. The attractive appearance and innovative design create optional flexibility and functionality. The box is completely enclosed with partitioned compartments for power and data.

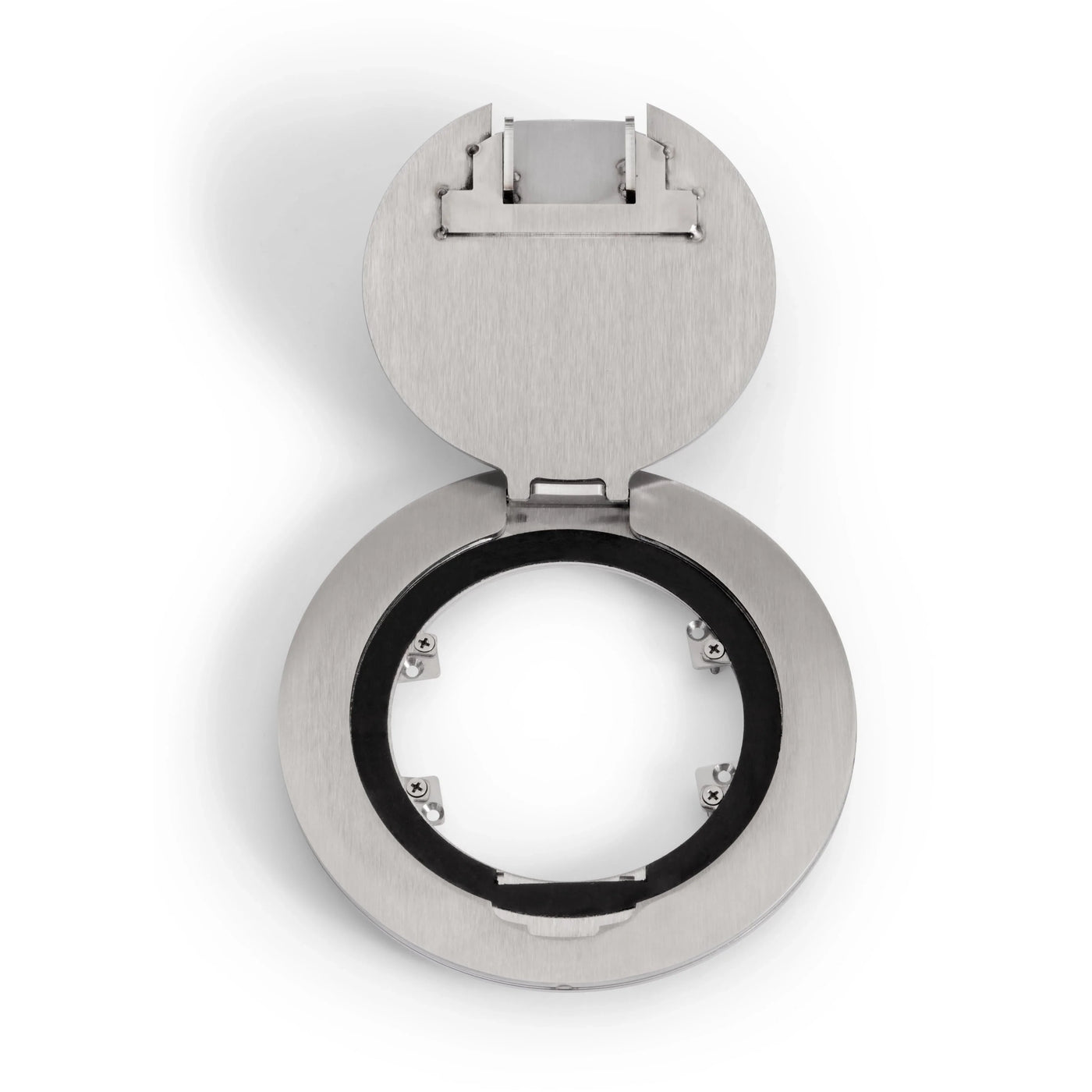

Recessed Connections and 180 Degree Lid with Trapdoor Cable Pass-Thru
The connections are down low in the box (2.75") so the cables can be plugged in and the lid closed. This eliminates tripping hazards because there are no plugs sticking above the surface of the ground. It also allows rugs to lay over the floor box with only the cable thickness above the box. The hinged lid also opens 180 degrees, it can be folded back flat against the ground if desired.
***The box comes with 2 power and 6 keystone openings (keystones not included)***
There is a small trap door in the stainless steel cover allowing cables to pass through the cover while the lid is closed.
Quick and Easy Installation
The box installs easily by creating a 4" opening with a hole saw, and then securing to the floor with the included wood screws. The box is 5" in depth and the cover is 6" in diameter and 1/4" thick. The cover is perfect for 1/4" carpet or another flooring to create a flush look. Alternatively the box can be installed completely flush by creating a 6" counterbore cut to the thickness of the cover. On the bottom of the box are one 1.25" knockout, and one .75" knockout.
- Recessed connections eliminate tripping hazards

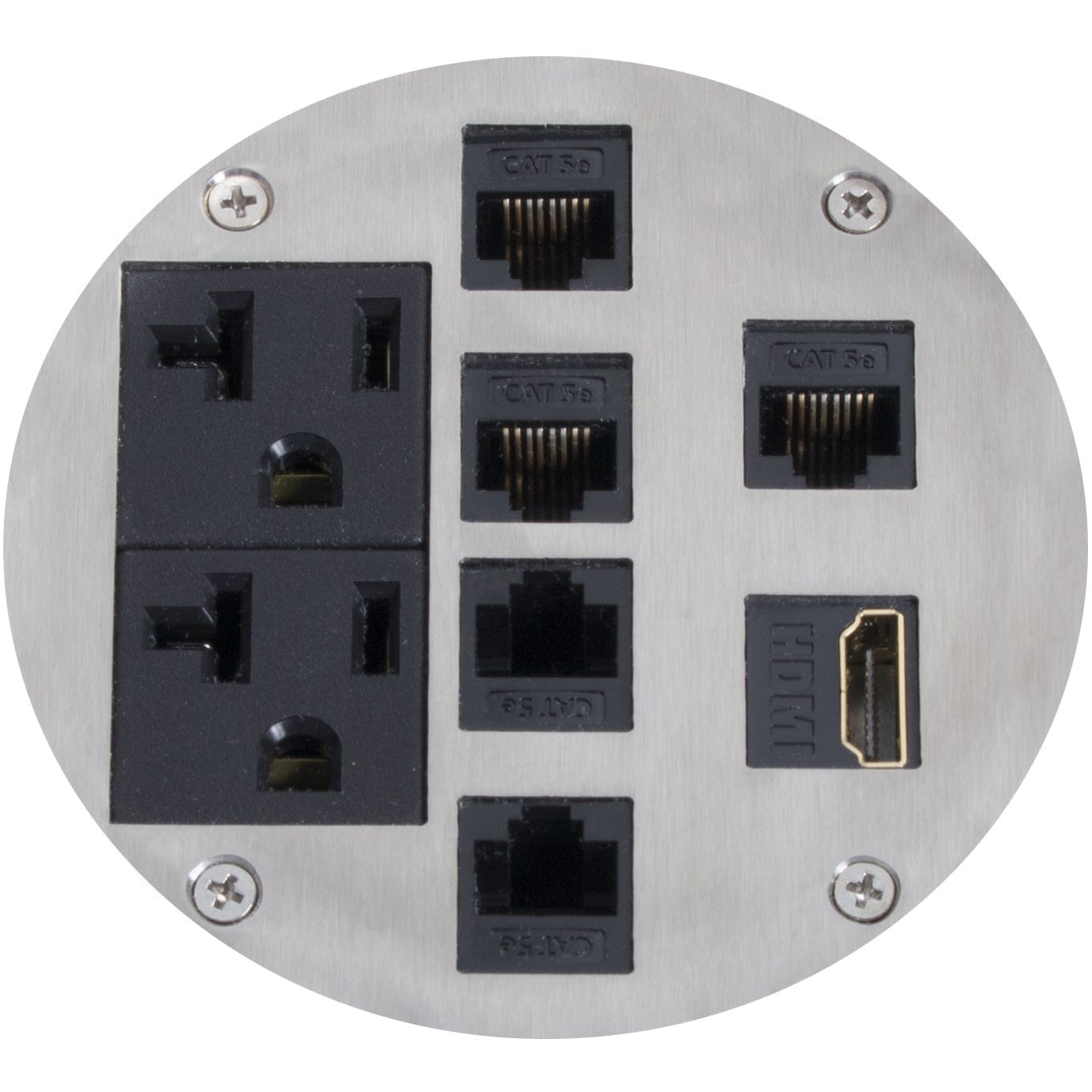

- Connections: 2 power, 6 keystone openings
- Cover: Stainless steel
- Cable pass-through door in cover
- Lid hinges 180 degrees
- Partitioned compartments for power and data models
- UL listed for USA and Canada
- Depth: 5 inches
- Installs in 4" round hole
- 6" cover size, 1/4" thick
- Completely flush with 1/4 inch carpet or other flooring
- Fast, simple installation with included wood screws
- Can be installed through floor before or after carpet installation
- CSA approved for Canada, # 212271
- Warranty: 1 year
Connections: 2 power, 6 keystone openings
Cover: Stainless steel
Cable pass-through door in cover
Lid hinges 180 degrees
Partitioned compartments for power and data models
UL listed for USA and Canada
Depth: 5 inches
Installs in 4" round hole
6" cover size, 1/4" thick
Completely flush with 1/4 inch carpet or other flooring
Fast, simple installation with included wood screws
Can be installed through floor before or after carpet installation
CSA approved for Canada, # 212271
Warranty: 1 year
