Four Inch Core Drill Fire Rated Poke Through Floor Box
The MOI4-REC-COMM10-SS-AHC-CED-10 is a 4" core drill poke-through floor box that provides easy access to power, voice, and data connections. The attractive appearance and innovative design create optional flexibility and functionality. The box is completely enclosed with partitioned compartments for power and data.
Recessed Connections and 180 Degree Lid with Trapdoor Cable Pass-Thru
The connections are down low in the box (2.75") so the cables can be plugged in and the lid closed. This eliminates tripping hazards because there are no plugs sticking above the surface of the ground. The hinged lid also opens 180 degrees, it can be folded back flat against the ground if desired.
***The box comes with 10 keystone openings (keystones not included)***

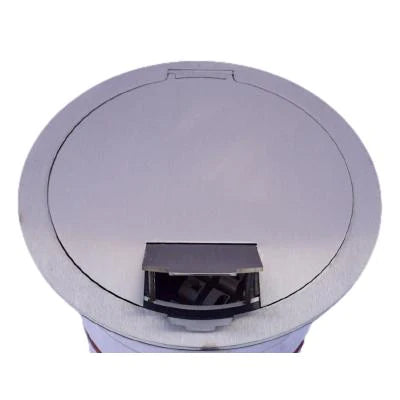

There is a small trap door in the stainless steel cover allowing cables to pass through the cover while the lid is closed.
UL 2 Hour Fire Rating and Scrub Water Rated
The box features a 2-hour fire rating and is UL listed for the USA, and cUL listed for Canada. The cover is also UL 514C scrub water rated.
Quick and Easy Installation
The box installs snuggly in a 4" hole, but can install in up to a 4.25" hole. The box seals to ensure fire separation and structural integrity. Simply use the included locknut to sure to the floor. The box is 10" in depth and the cover is 6mm thick. The 6mm thick cover is perfect for 1/4" carpet or another flooring to create a flush look.
- Recessed connections eliminate tripping hazards
- Connections: 10 keystone openings
- Cover: Stainless steel
- Cable pass-through door in cover
- Lid hinges 180 degrees
- Partitioned compartments for power and data models
- UL 2 hour fire rating for USA and Canada
- Depth: 10 inches
- Installs in 4" to 4.25" round hole
- 6" cover size, 6mm thick
- Completely flush with 1/4 inch carpet or other flooring
- Fast, simple installation with included locknut
- Can be installed through floor before or after carpet installation
- CSA approved for Canada, # 212271
- Warranty: 1 year
Connections: 10 keystone openings
Cover: Stainless steel
Cable pass-through door in cover
Lid hinges 180 degrees
Partitioned compartments for power and data models
UL 2 hour fire rating for USA and Canada
Depth: 10 inches
Installs in 4" to 4.25" round hole
6" cover size, 6mm thick
Completely flush with 1/4 inch carpet or other flooring
Fast, simple installation with included locknut
Can be installed through floor before or after carpet installation
CSA approved for Canada, # 212271
Warranty: 1 year
