Waterproof Outdoor Electrical Box - Top Piece Replacement for OB-1, Push Button

  |   Q&A

$240.00

Free shipping on orders over $99

Part #: OBPTO
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

The Lew Electric OBPTO is a replacement part for the top piece of OB-1 series outdoor floor boxes. It is an outside waterproof rated pop-up floor box, for outdoor ground installations. The design and installation make the box weatherproof against any type of climate, providing a safe exterior outlet. This box includes the top piece only. **Excludes male connector, back box, and extension ring for installation**

Waterproof Stainless Steel Top

In the closed position the stainless steel top features an IP66 water protection level making it perfect for outdoor applications including; patios, yards, pools, and outdoor kitchens. The top is also made from marine grade #316 stainless steel giving it more strength, and allowing it to withstand corrosion, pitting, and anything the outdoors can throw at it.

20 Amp GFCI Weather Resistant Outlet with Tamper Resistant Plugs

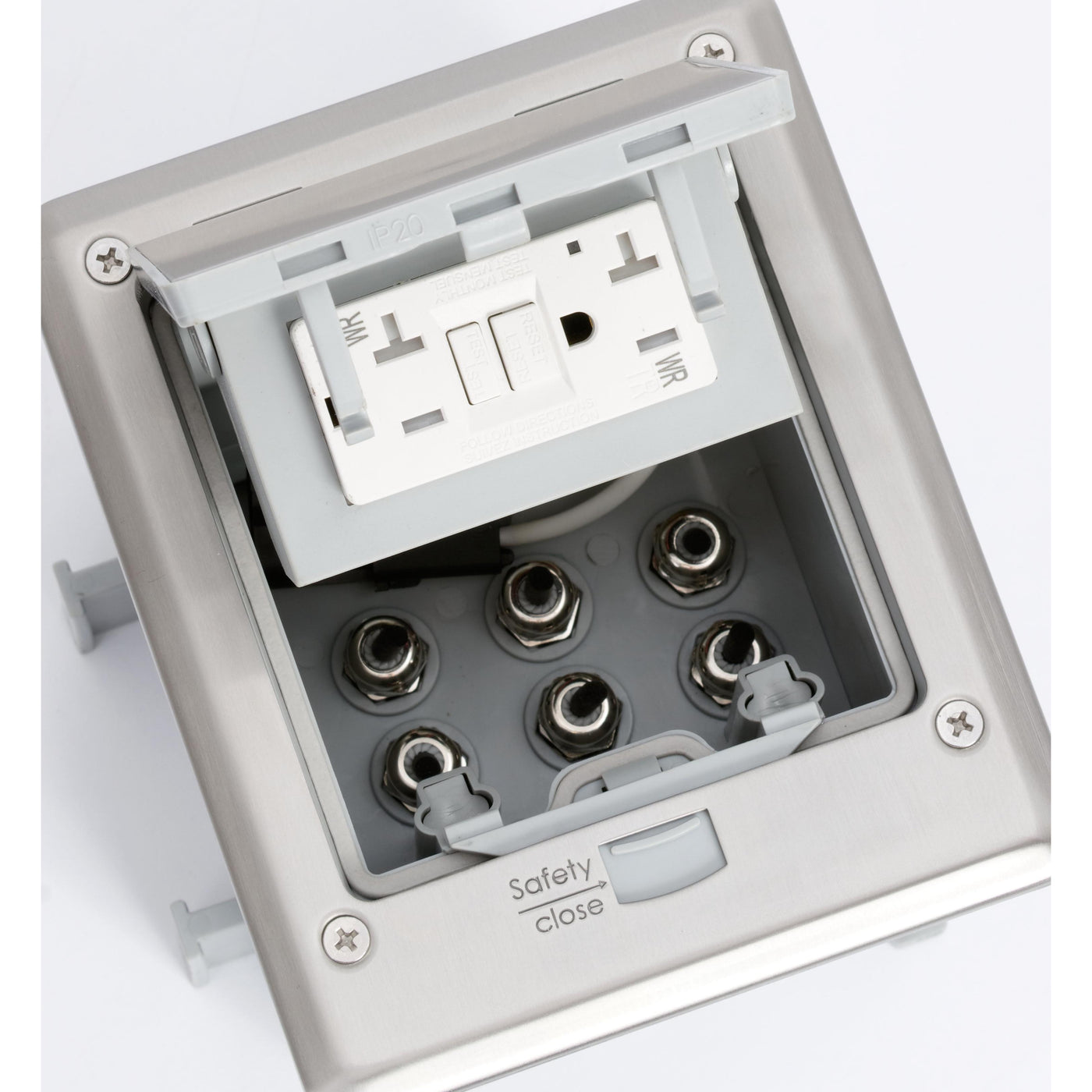

Inside the pop-up is a 20 Amp GFCI protected outlet, the 20 Amp rated outlet ensures there is enough amperage to plug in the most demanding appliances. The outlet is UL listed to meet code, and is weather resistant (WR) rated. The receptacle features tamper resistant (TR) plugs to meet code, so no harmful objects can be inserted into the plugs.

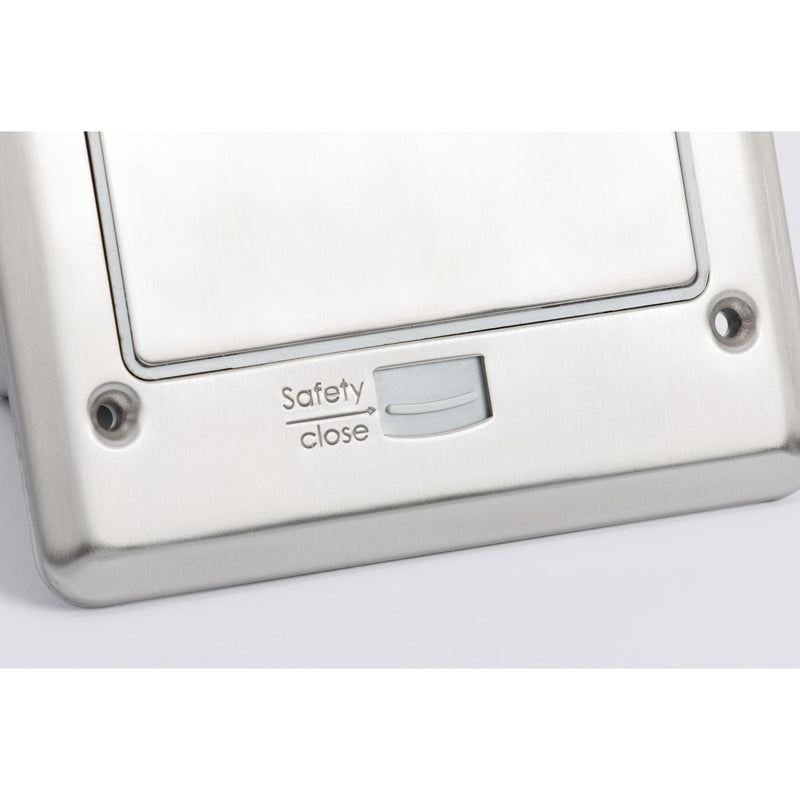

Easy Push Button Opening for Pop Up Power

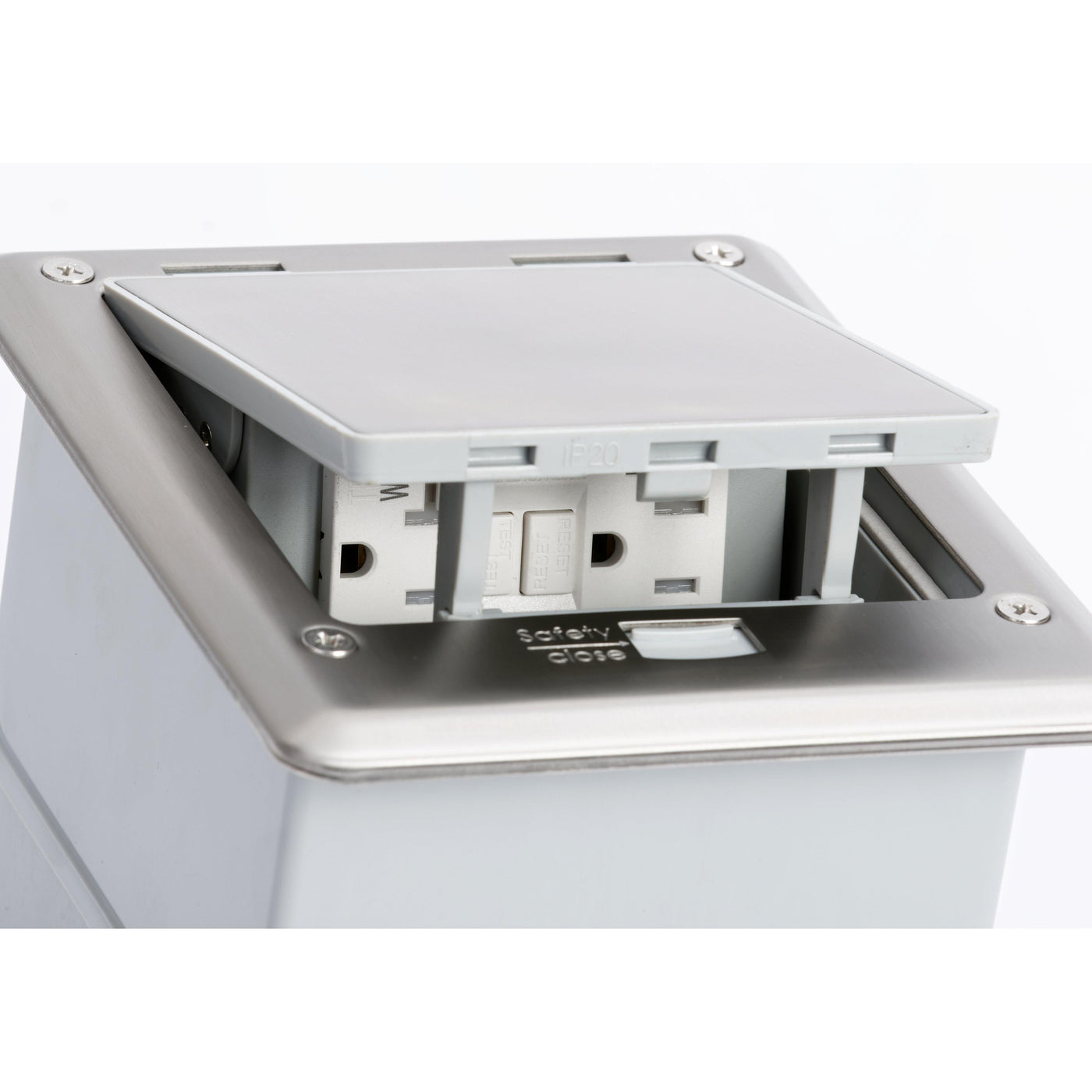

The top of this model features a quick and easy to use slide/push button for quick access. Simply push the button, and the top will pop up so you can plug in your cord. The top then stays open just over an inch, so the lid isn’t just sitting on the cord.

Note: This box does NOT include male connector, back box, or extension ring. It is designed to replace the top part only of an existing/installed Lew OB-1-SP.

The Lew Electric OB-1-SP is the only outdoor water tight floor box on the market that can apply safe and protected power when installed correctly.

*Must be wired to a dedicated GFCI breaker. Must install in a minimum of 4” of concrete. Non-returnable once installed. Please watch installation video*

Specifications:

  • Material: Stainless Steel #316
  • Push button opening
  • Outlet: 20A GFCI water rated
  • Top: 6 7/8" x 5 11/16"
  • Tamper resistant (TR) plugs
  • For 4"+ concrete installations only
  • For outdoor or indoor use
  • UL listed receptacle
  • Water protection: IP66 water & dust rated when closed
  • MUST BE WIRED TO A DEDICATED GFI BREAKER
  • Gangable
  • Install using a licensed electrician
  • Install in concrete, pavers, or tile
  • Perfect for patios, pools, and outdoor kitchens
  • 1 year warranty

Lew Electric OB-1-SP Install Instructions (PDF)


Material: Stainless Steel #316
Push button opening
Outlet: 20A GFCI water rated
Top: 6 7/8" x 5 11/16"
Tamper resistant (TR) plugs
For 4"+ concrete installations only
For outdoor or indoor use
UL listed receptacle
Water protection: IP66 water & dust rated when closed
MUST BE WIRED TO A DEDICATED GFI BREAKER
Gangable
Install using a licensed electrician
Install in concrete, pavers, or tile
Perfect for patios, pools, and outdoor kitchens
1 year warranty
