Single Gang Deep Concrete Floor Box, Adjustable, Aluminum

2   |   Q&A

$110.62

Free shipping on orders over $99

Part #: 1101-58-A
Vendor: Lew Electric
In stock! Ships same business day from Chicago if ordered by 1:30EST
Maximum quantity available reached.

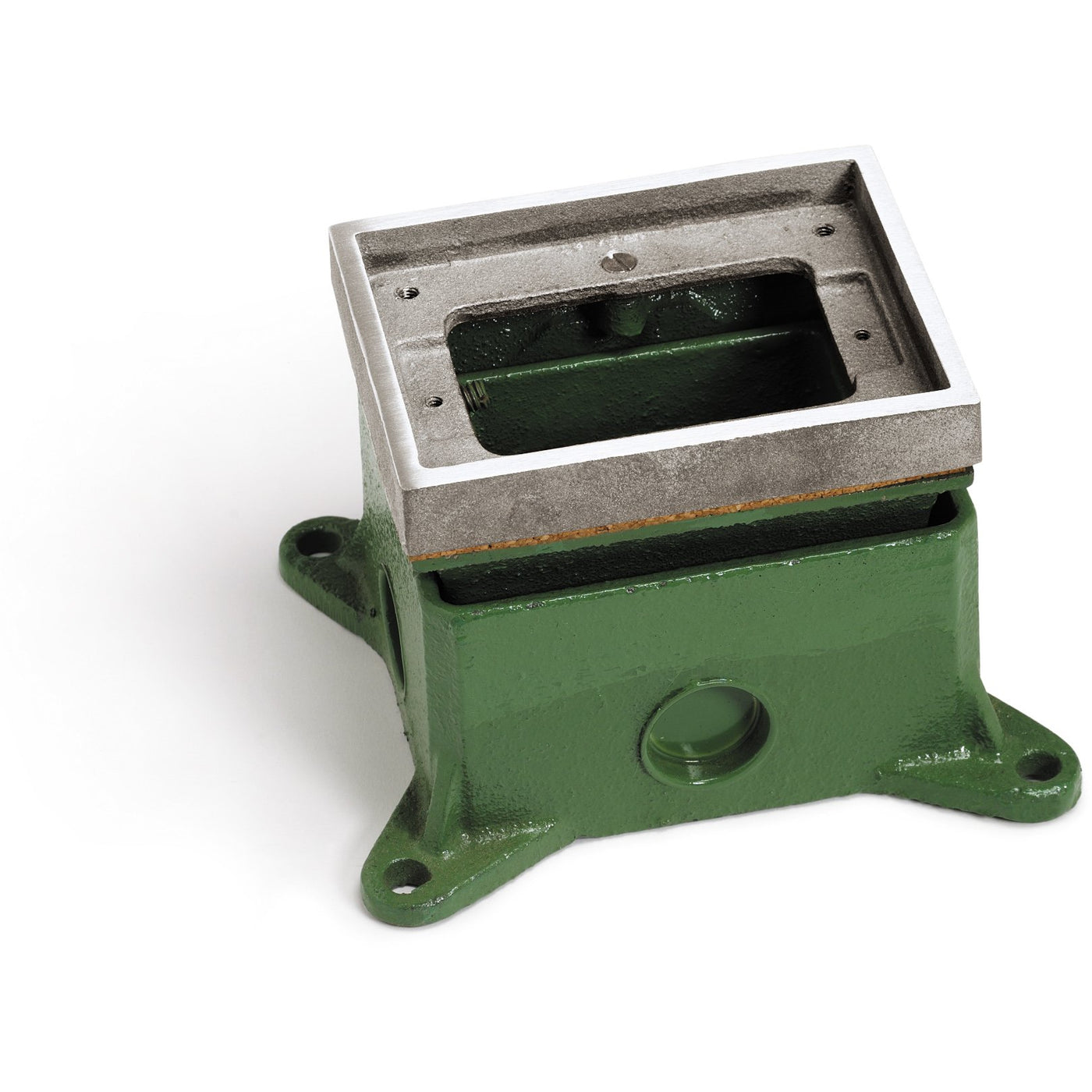

The Lew Electric 1101-58-A is a cast iron concrete floor box with a single gang aluminum top. The box is fully adjustable and offers 3/8" of adjustability after it is installed via 4 screws with just a screwdriver. The box is deep offering 3.32" of height for installation, and 13 cubic inches of interior space. There is a 3/4" knockout on each side of the box to run your wires to. The box ships with a protective cement cover to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a sold separately carpet flange can be ordered, the CF-1100 series carpet flange adds 3/8" of height to accommodate the carpet and padding. For tile applications no flange is needed, simply pour your concrete to the level of the tile frame less the thickness of the tile. To further make installation as easy as possible, screws are provided to mount the cover assembly to the box. The box is UL listed for the USA, and cUL listed for Canada installations.

Top: Aluminum
Requires cover, sold separately
Size: Single gang
For concrete installations
Offers 3/8" of adjustability post installation
13 cubic inches of interior space
3/4" knockouts on each side
UL and cUL listed, # 514A, 489H
Includes construction cap
Includes cover screws to secure to box
Box dimensions:  4.25" x 3.88"
Depth:  3.32" deep
Can be used with carpet or tile
Warranty:  1 year

Top: Aluminum
Requires cover, sold separately
Size: Single gang
For concrete installations
Offers 3/8" of adjustability post installation
13 cubic inches of interior space
3/4" knockouts on each side
UL and cUL listed, # 514A, 489H
Includes construction cap
Includes cover screws to secure to box
Box dimensions:  4.25" x 3.88"
Depth:  3.32" deep
Can be used with carpet or tile
Warranty:  1 year

Shipping Policy
Orders totaling $99 or more ship for free via UPS ground to the Contiguous USA "lower 48". Orders in stock are shipped from Chicago, IL and ship within 1 business day of being ordered.
Return Policy
If you are not completely satisfied with your purchase you may return this item for a full refund of the merchandise total within 30 days of delivery, non-returnable if installed; Please note that you are responsible for all return shipping charges unless the item is defective or damaged. Return credits are issued within 1 business day to your original method of payment once the item is received and inspected.
Return Eligibility
Items must be in new condition and in the original packaging to qualify for a full refund (please do not modify the product in any way). If these conditions are not met then the return could be subject to a restocking fee or the product sent back to sender.
What if My Order Arrives Defective?
If an item arrives defective, or with parts missing, please notify us within 30 days of delivery. We're happy to send you a new item or replacement parts as soon as possible.

Customer Reviews

Based on 2 reviews
5 Star
100%
2
4 Star
0%
0
3 Star
0%
0
2 Star
0%
0
1 Star
0%
0
Write a Review
  • Reviews (2)

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

DK
08/03/2018
David K.
United States

Lew Part #: 1101-58-A

Solid construction, easy to install, larger 3/4" conduit hubs, and looks great in a polished concrete floor!!!

TK
01/03/2018
Tom K.
United States

Floor box installation

The floor box is exactly what I neeed for a relocation of a floor outlet in a poured concrete pad. It has the threaded ports for conduit. Easy to install, level and hookup. I ran conduit, closed in with concrete then Installed wood floor. Adjustable to floor height. Much easier than a round box.
