Recessed Floor Plate w/ Box, 1 15A Duplex, 2 Screw Plug - Nickel Silver

  |   Q&A

$126.00

Free shipping on orders over $99

Part #: SWB-2-NS
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

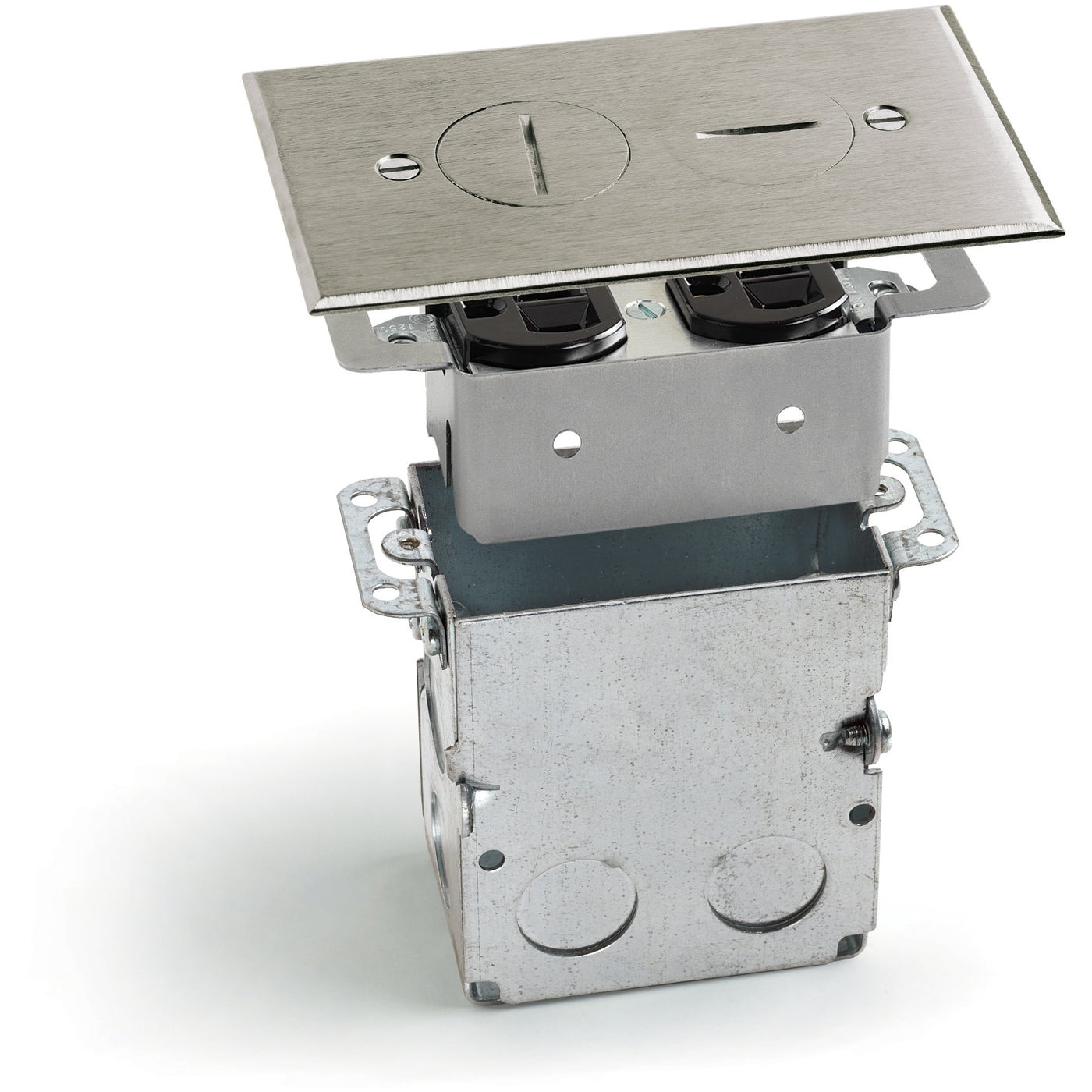

The Lew Electric SWB-2-NS is a recessed floor plate with a nickel silver cover, also included is the back box for your 1/2" conduit connections.  Inside the floor box is 1 duplex 15A outlet, the plugs are tamper proof. The sleeve in the box is adjustable up to 3/4" to accommodate any floor making installation a snap, screws are included to attach the plate to the receptacle box. The box may be attached directly to the sub floor or routed into a finished floor. The box features two water tight close up screw plugs, there is also a durable 1/16" neoprene rubber gasket that goes between the receptacle and plate. The box is UL listed, and the receptacle is UL listed and meets heavy duty requirements for display receptacles. This floor box is a simple and economical solution to provide your power in a small and attractive plate.

Specifications:

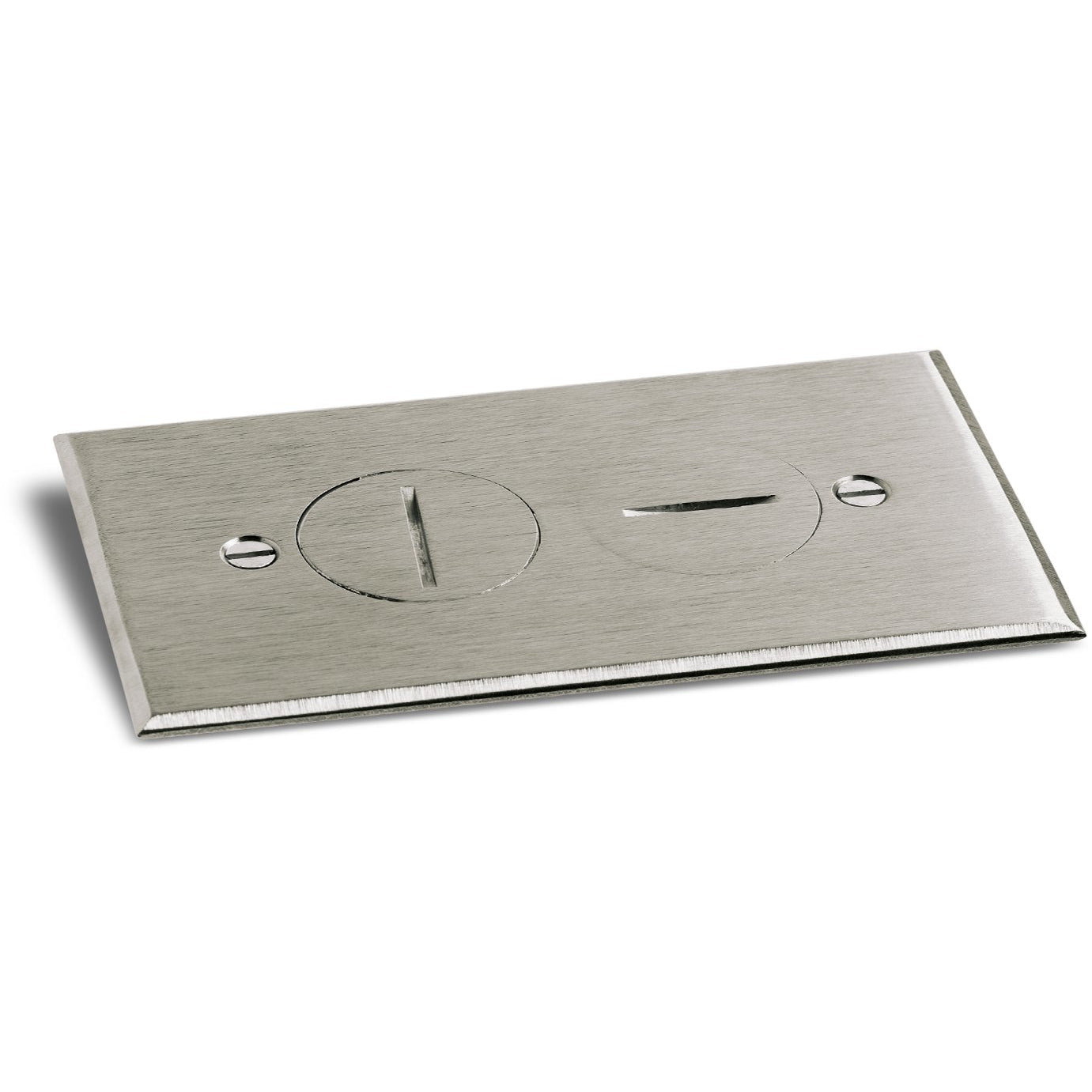

  • Plate: 1/8" nickel silver
  • Outlet: 1 duplex 15A tamper proof
  • 2 watertight screw plugs
  • Adjustable up to 3/4"
  • Attach to floor or route into finished floor
  • Includes 1/16" neoprene rubber gasket
  • Box UL # E345966
  • Outlet UL # E333616
  • Meets NEMA WD1-1983 requirement
  • Several knockouts for conduit
  • Includes plate screws
  • Cover size:  4 5/8" x 2 7/8"
  • Back box size:  3"L x 2"W x 3.5"H
  • Cutout size: Can't exceed 2 1/8" x 3 1/2"
  • Capacity:  18 cubic inches
  • Warranty:  1 year

Lew Electric SWB-2-NS Installation Instructions (PDF)

Plate: 1/8" nickel silver
Outlet: One duplex 15A tamper proof
2 watertight screw plugs
Adjustable up to 3/4"
Attach to floor or route into finished floor
Includes 1/16" neoprene rubber gasket
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  4 5/8" x 2 7/8"
Back box size:  3"L x 2"W x 3.5"H
Cutout size: Can't exceed 2 1/8" x 3 1/2"
Capacity:  18 cubic inches
Warranty:  1 year
