Arlington FLBR101BL Rectangle Floor Box Outlet, Screw Plugs, Black Cover

  |   Q&A

$19.99

Free shipping on orders over $99

Part #: FLBR101BL
Vendor: Arlington
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

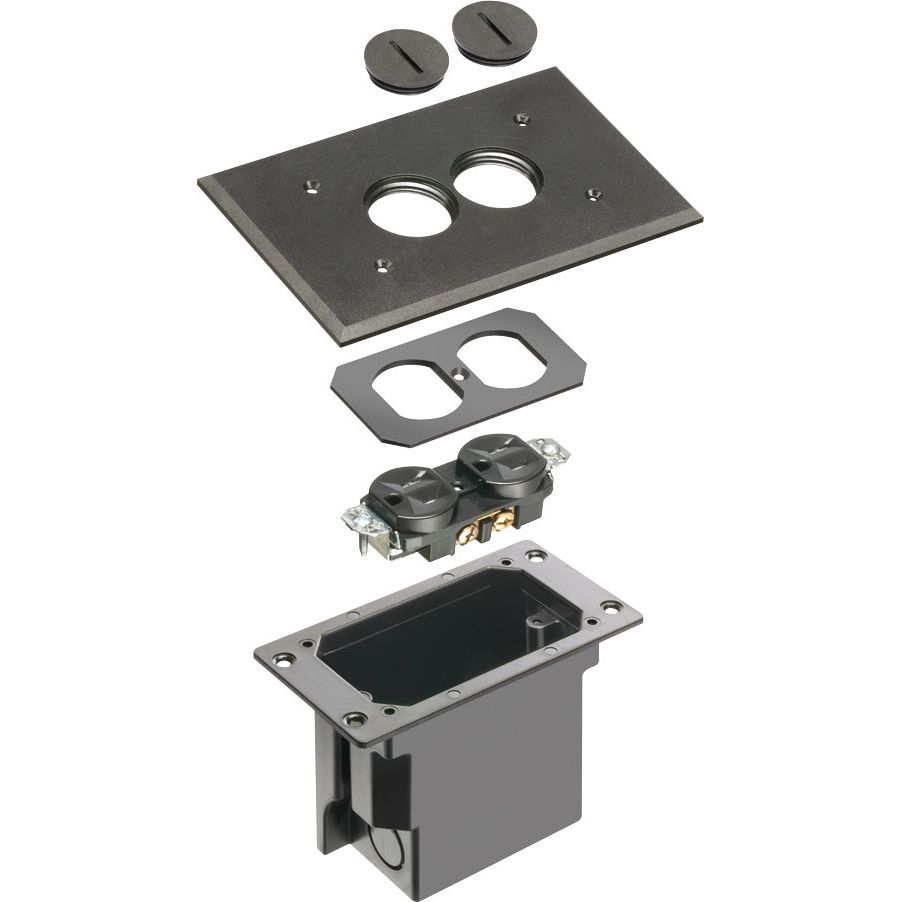

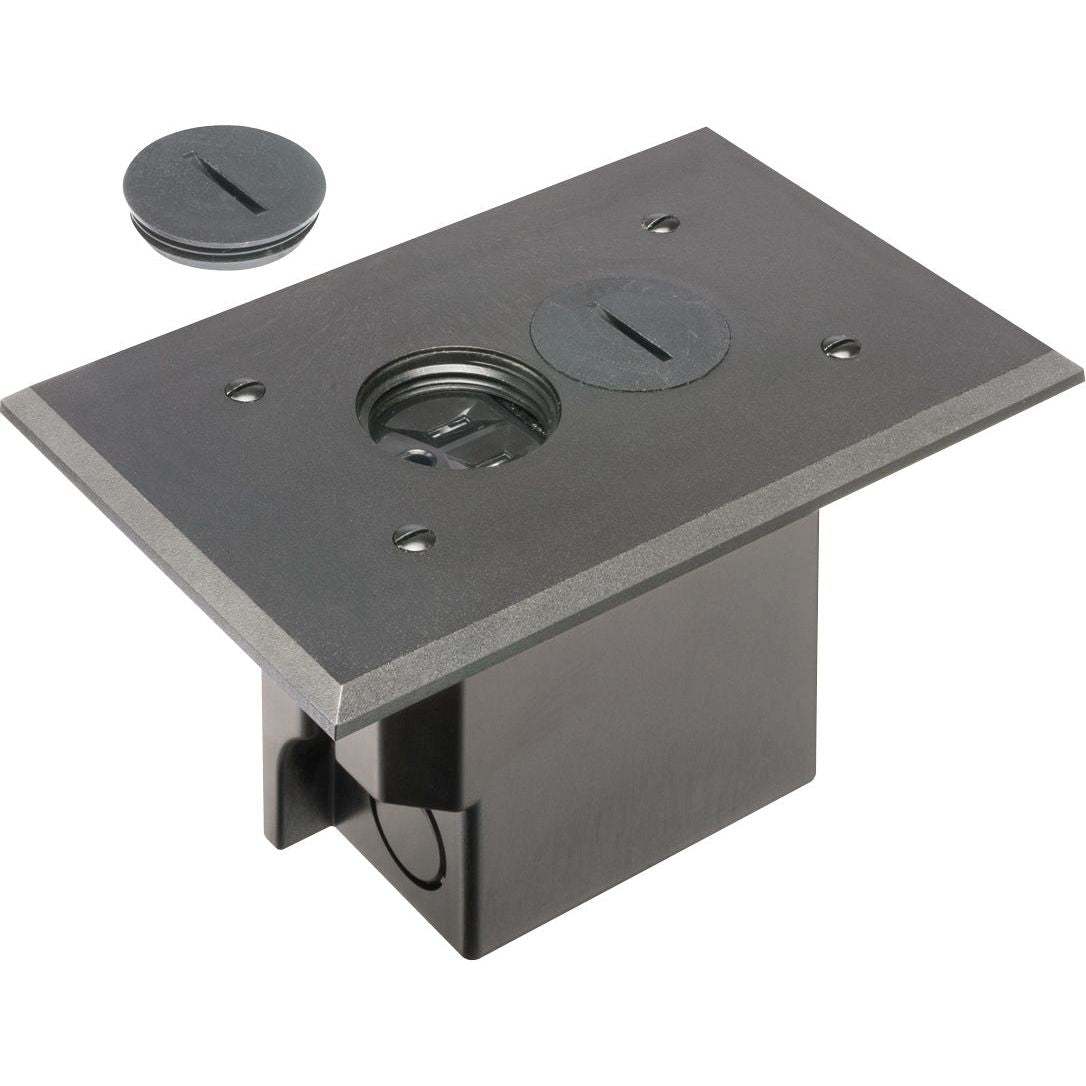

The Arlington FLBR101BL is a rectangular UL listed floor box outlet with metal black cover, it features a single duplex outlet that provides two power plugs. To access the plugs there are threaded screw plugs that are removed so the user can plug in power. The kit includes the cover with threaded plugs, NM94 connector, gasket, back plate, 20 cubic inch plastic box, tamper-resistant duplex receptacle, and cover plate screws.

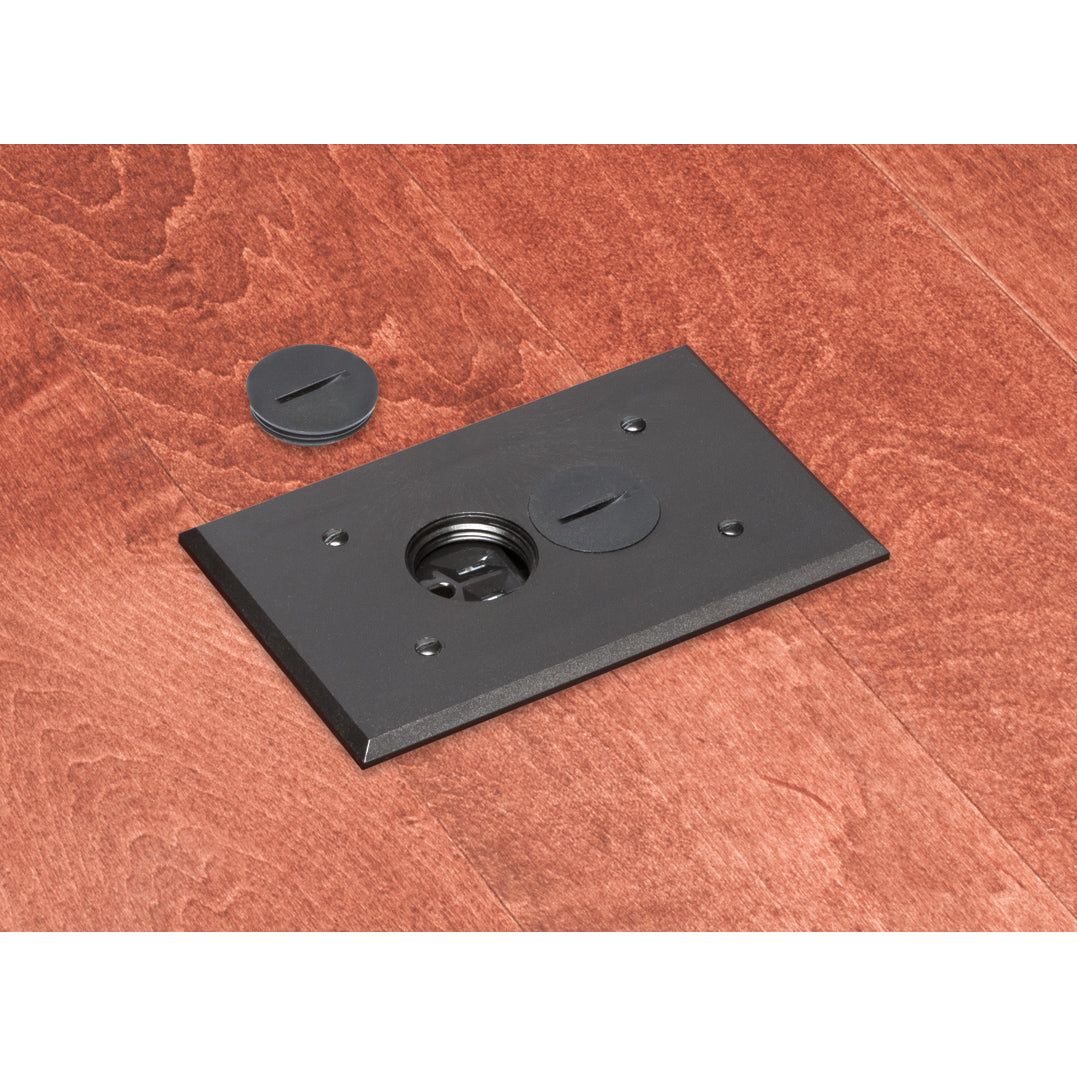

To install the box use the included template to cut the hole in the floor, then insert the box and screw to the floor, wire the outlet, and install the cover.

Specifications:

  • Cover: Black metal, 2 screw plugs
  • Outlets: One duplex 15A
  • Size: 1 gang
  • Tamper-resistant plugs
  • UL listed
  • Interior capacity: 20.0 cubic inches

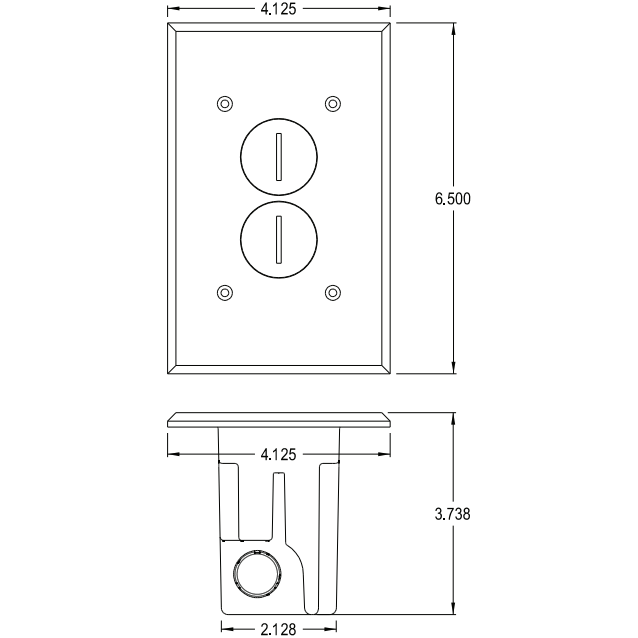

  • Cover dimensions: 6.5" x 4.125"
  • Depth: 3.738"
  • Box material: Polymer
  • For indoor installations only
  • Plate and outlet screws provided
  • Made in the USA
  • Warranty: 1 Year

Specification Sheet (PDF)


Cover: Black metal, 2 screw plugs
Outlets:  One duplex 15A
Tamper-resistant plugs
UL Listed
Interior capacity:  20.0 cubic inches
Cover dimensions:  6.5" x 4.125"
Depth:  3.738"
Box material: Polymer
Made in the USA
Warranty:  1 year
