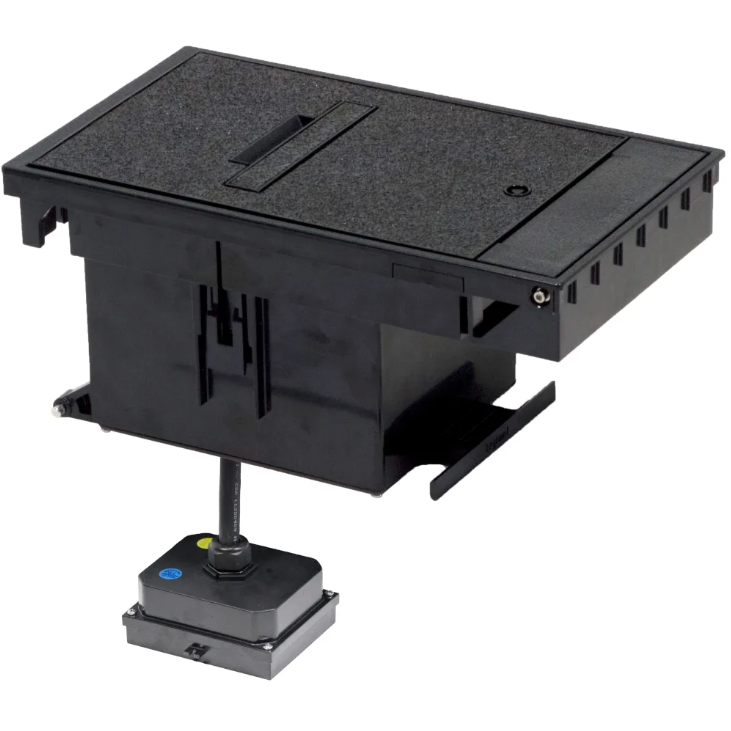

Wiremold by Legrand XB814C520BK Outdoor Ground Box Cover Assembly

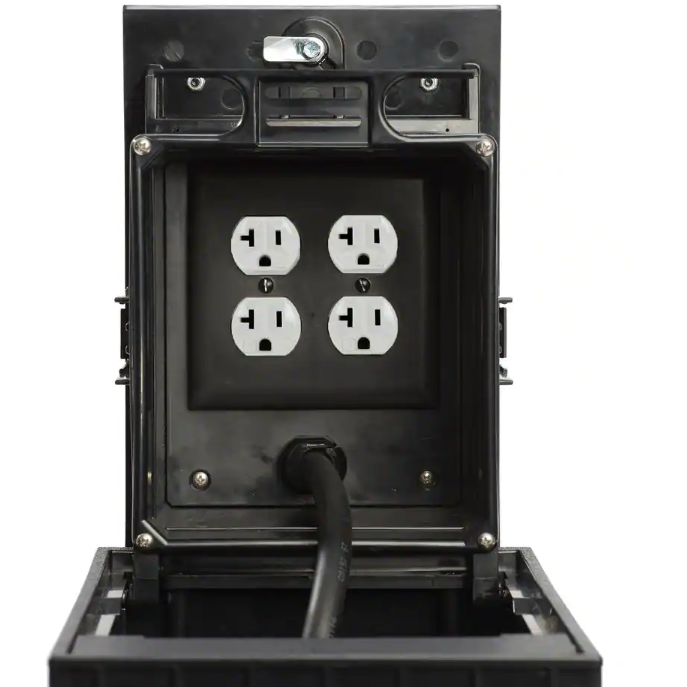

The Wiremold XB814C520BK is a waterproof outdoor power box cover assembly in a textured black finish designed to be installed in the ground, the cover assembly provides two 20A weather resistant duplex receptacles wired together on a single circuit. The cover assembly must be installed in the sold separately XB814 empty box.
Outdoor Rated Design
The box is made out of a UV rated material that is designed to withstand any type of harsh weather. When installed in the XB814 box, it maintains an air pocket protecting the devices and plugs in the box for year-round operation. The gasket seals have been tested to perform under six feet of water for over 24 hours. The box meets IP68 requirements even while in-use, now you can use your cables in any weather even when they are plugged in. The list of certifications include:
-UL50E Type 6P
-UL File E486738 Guide QCNL
-cUL listed, E486738
-IP68 water and dust rated
-ANSI.SCTE 77 Tier 5 (5,000lb load rating)

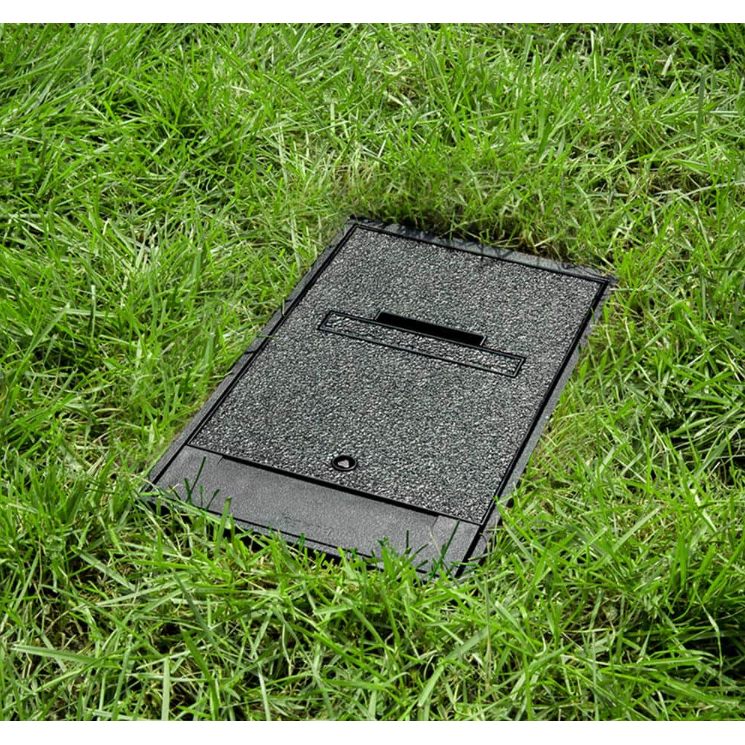

Flush to Finished Ground Installation
The box blends in perfectly with any outdoor space including grass, mulch, concrete, brick, pavers, dirt, walkways, patios, and more. Install in any outdoor location that requires safe power including shopping centers, campuses, amusement parks, sports fields, transit, and hospitality locations. The built-in cable guides organize cables and line them up with the smart egress doors that auto adjust to allow for easy management of cables exiting out. The egress door also auto closes and locks when no cables are exiting the box.
The cover features a 5,000lb load rating for occasional vehicular traffic, or groundskeeping tractors and mowers.
The cover installs in the 2-gang XB814 box, that box can be installed separately or ganged together for increased power and data in one location. The box can accept up to two 1.25" PVC conduit connections, one for the feed and the other to daisy chain.
Installation and Usage Notes
This is the cover assembly only and requires the sold separately XB814 empty box.
The ground box electrical circuit must be protected by a ground fault circuit interrupter (GFCI) upstream from the ground box.

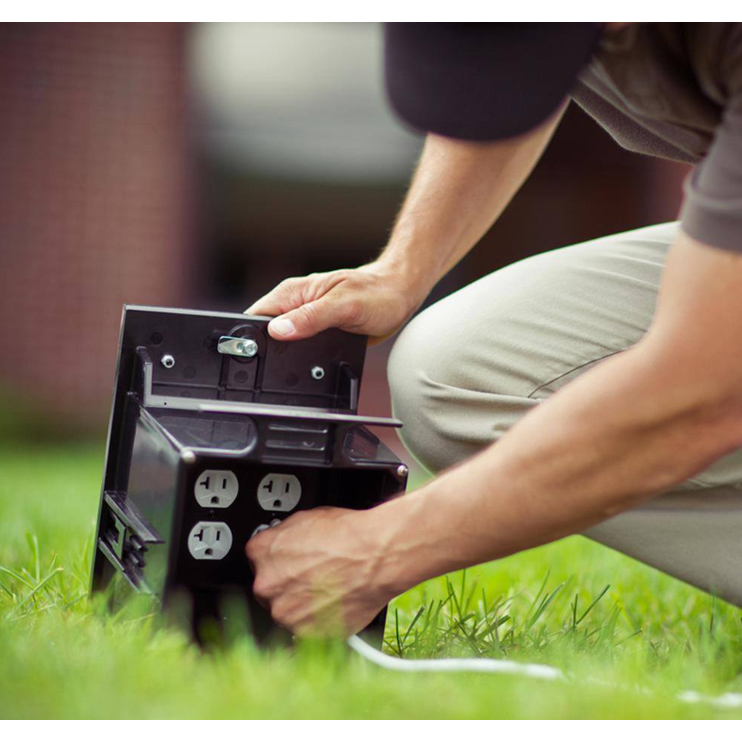

The cover must be closed while in use. Use only molded plugs and cords that are rated for outdoor use that are no larger than 6 gauge.
The maximum length of plug allowed at the end of the cord is 3".
The cover assembly can't have both power and data in one box, however 2 boxes can be ganged together to achieve power and data.
The box can be installed in concrete, but not fully encased. The bottom must remain open for drainage.
The cover features a tamper resistant key lock opening if security is desired.
The lock nut tool XBLNT is sold separately and used to tighten the conduit nut.
- UV rated black textured plastic
- Lift up handle, optional key
- 4 power on single circuit
- Top: 14" x 8"
- Height: 6 5/8"
- Cover thickness: 3/4"
- 2-gang size, can be ganged together
- For outdoor or indoor use
- In-use water protection: IP68 water and dust
- Must be wired to a GFCI circuit
- Install using a licensed electrician
- Requires sold separately XB814 box
- 1 year warranty
UV rated black textured plastic
Lift up handle, optional key
4 power on single circuit
Top: 14" x 8"
Height: 6 5/8"
Cover thickness: 3/4"
2-gang size, can be ganged together
For outdoor or indoor use
In-use water protection: IP68 water and dust
Must be wired to a GFCI circuit
Install using a licensed electrician
Requires sold separately XB814 box
1 year warranty
