Concealed Plug Recessed Floor Box, 1 Outlet, Hidden Plugs, Dark Bronze

  |   Q&A

$160.00

Free shipping on orders over $99

Part #: RCFB-1-DB
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

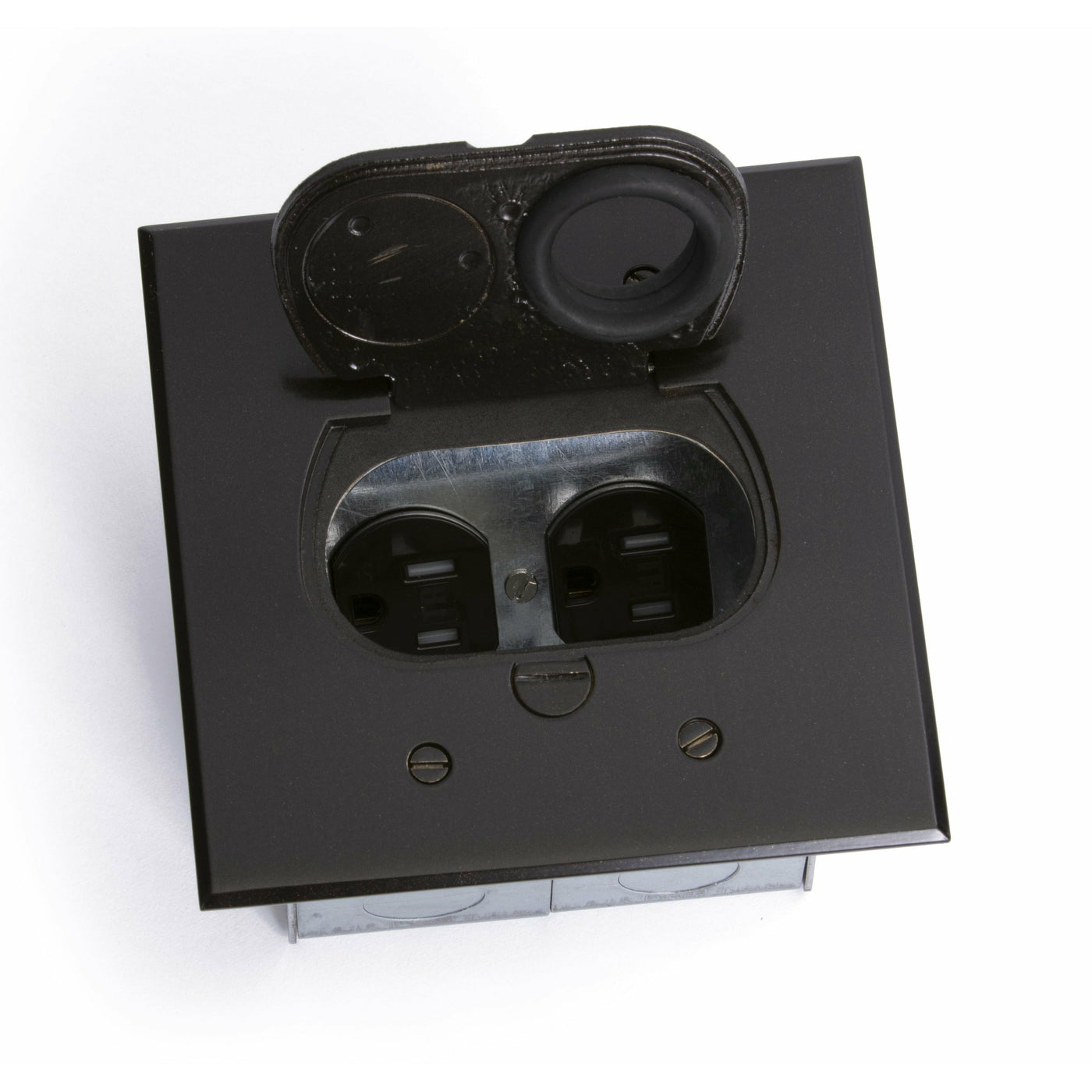

The Lew Electric RCFB-1-DB is a recessed floor box that allows the user to hide the plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground. The cover is a dark bronze color which is perfect for matching dark floors.

Eliminate Tripping Hazards with a Concealed Plug Floor Box

Now you can safely eliminate dangerous plugs from being above ground with no tripping hazards. Since they can’t be kicked by feet anymore, you don’t have to worry about breaking the cord plug, or the outlet that the cord was plugged into. Since the plugs are set deep down in the box, there is no more cluttered mess to look at.  This box is perfect for hiding under a rug, since the plugs won’t be in the way.  Use for permanently plugged in devices through the grommet holes, or use the lid or screw plugs to access the power.

Two 15A Tamper Resistant Plugs

Plug one or two cord ends into a single duplex outlet, the receptacle is rated at 15 Amps and has tamper proof plugs for safety to meet code. The box is UL listed, and the outlet is UL listed to meet heavy duty requirements for display receptacles.

Compact Size and Easy Installation

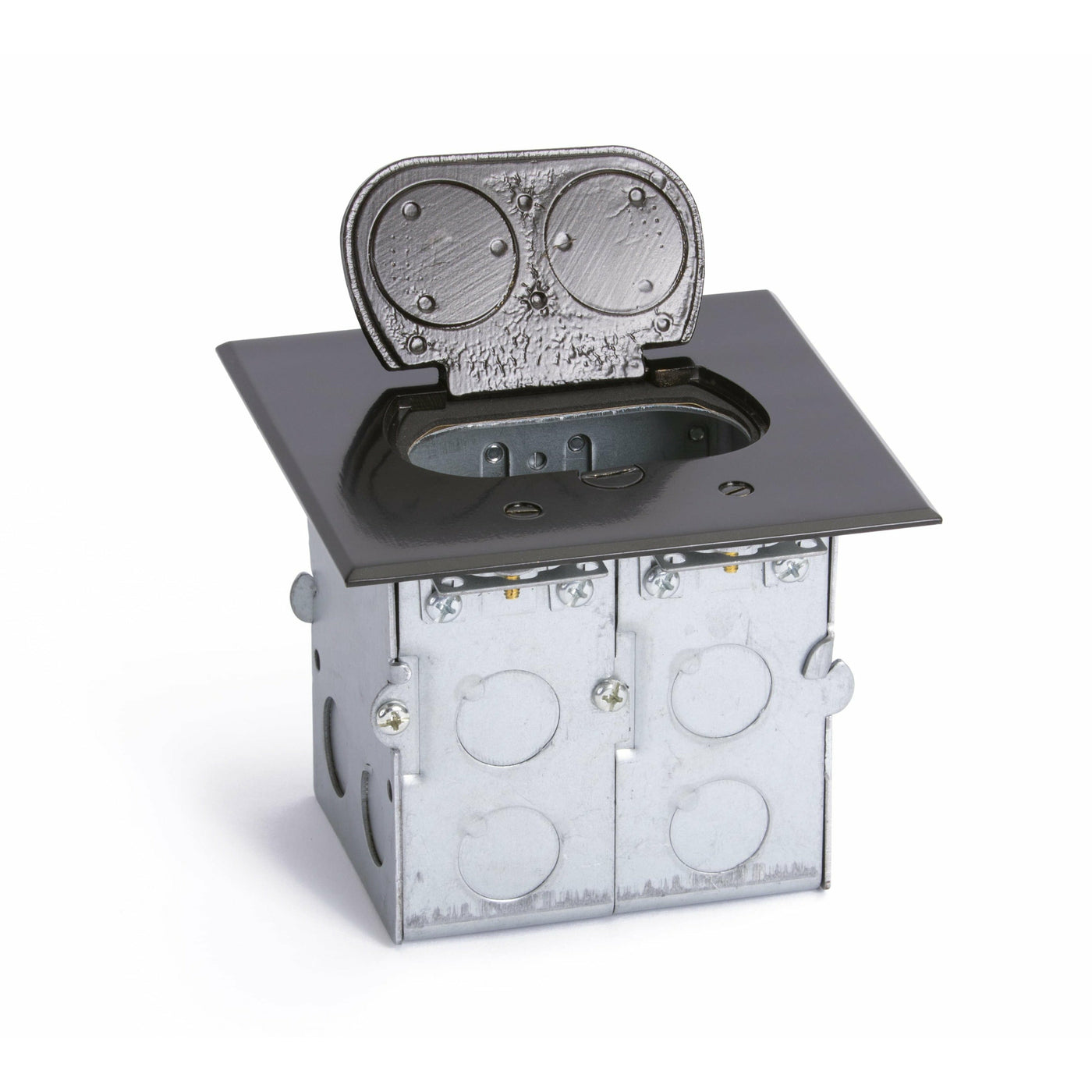

The box cover measures only 5” x 5” in size, and the real metal dark bronze cover plate is only 1/8” thick. The box can be installed directly to the subfloor or routed into a finished floor. The box has several knockouts to run your wire into, each long side has four ¾” knockouts, each short side has two ¾” knockouts, the bottom has two ¾” knockouts.

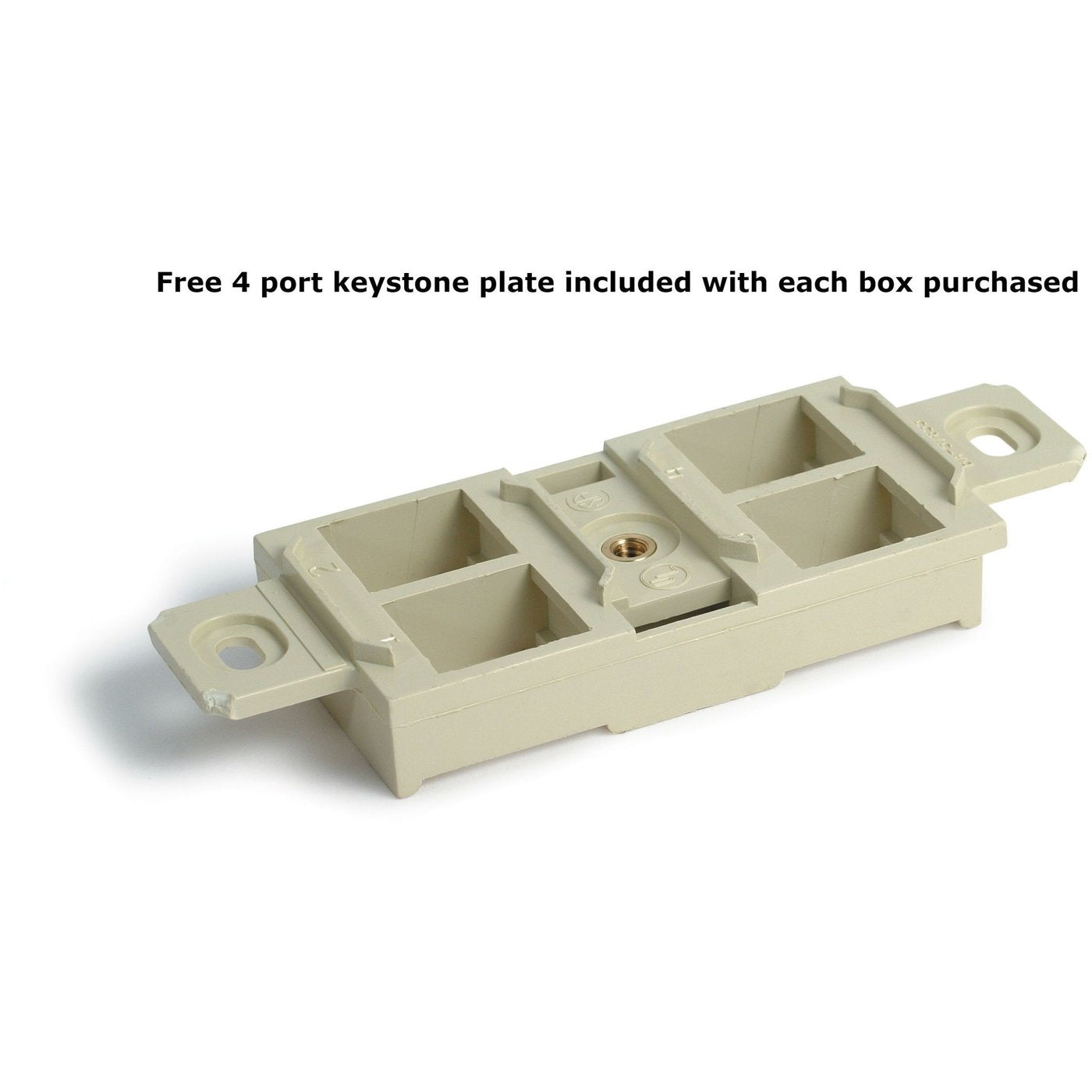

The floor box kit with everything you need including the back box, dark bronze cover, receptacle, grommets, gaskets, and plate screws. The box also includes a 4-port keystone plate if you need to have data in the box instead of power.

This floor box is a simple and economical solution to provide your power below the surface of your floor with an attractive thin plate, and no unsightly plugs showing.

Specifications

  • Metal plate: 1/8" thick dark bronze color
  • Outlet: 1 duplex 15A tamper proof
  • 2 screw plugs for access, 1.25"
  • Connect low in the box to hide your plugs
  • Attach to floor or route into finished floor
  • Box UL # E345966
  • Outlet UL # E333616
  • Meets NEMA WD1-1983 requirement
  • Several knockouts for conduit
  • Includes plate screws
  • Cover size:  5" x 5"
  • Back box size:  4"L x 3"W x 3.5"H
  • Cutout size: Can't exceed 4 1/8" x 3 1/2"
  • Size:  1 gang
  • Warranty:  1 year

Lew Electric RCFB-1-DB Installation Instructions (PDF)

Metal plate: 1/8" thick dark bronze
Outlet: 1 duplex 15A tamper proof
2 screw plugs for access, 1.25"
Connect low in the box to hide your plugs
Attach to floor or route into finished floor
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  5" x 5"
Back box size:  4"L x 3"W x 3.5"H
Cutout size: Can't exceed 4 1/8" x 3 1/2"
Size:  1 gang
Warranty:  1 year

Questions & Answers

Ask a Question
  • Can I install this with a floating floor of luxury vinyl plank?

    As long as the subfloor is not concrete, yes.
