- Round Poke Thru Recessed Floor Box, 2 Power, 5 Keystones - Stainless
Round Poke Thru Recessed Floor Box, 2 Power, 5 Keystones - Stainless
| Q&A$425.00
Free shipping on orders over $99
Round Poke Through Floor Box with Recessed Connections
The MOI-RES-PWR2-COMM5-SS is a poke-through style floor box that provides easy access to electrical power, voice, and data connections. The attractive appearance and innovative design create optional flexibility and functionality. The box is completely enclosed with partitioned compartments for power and data.

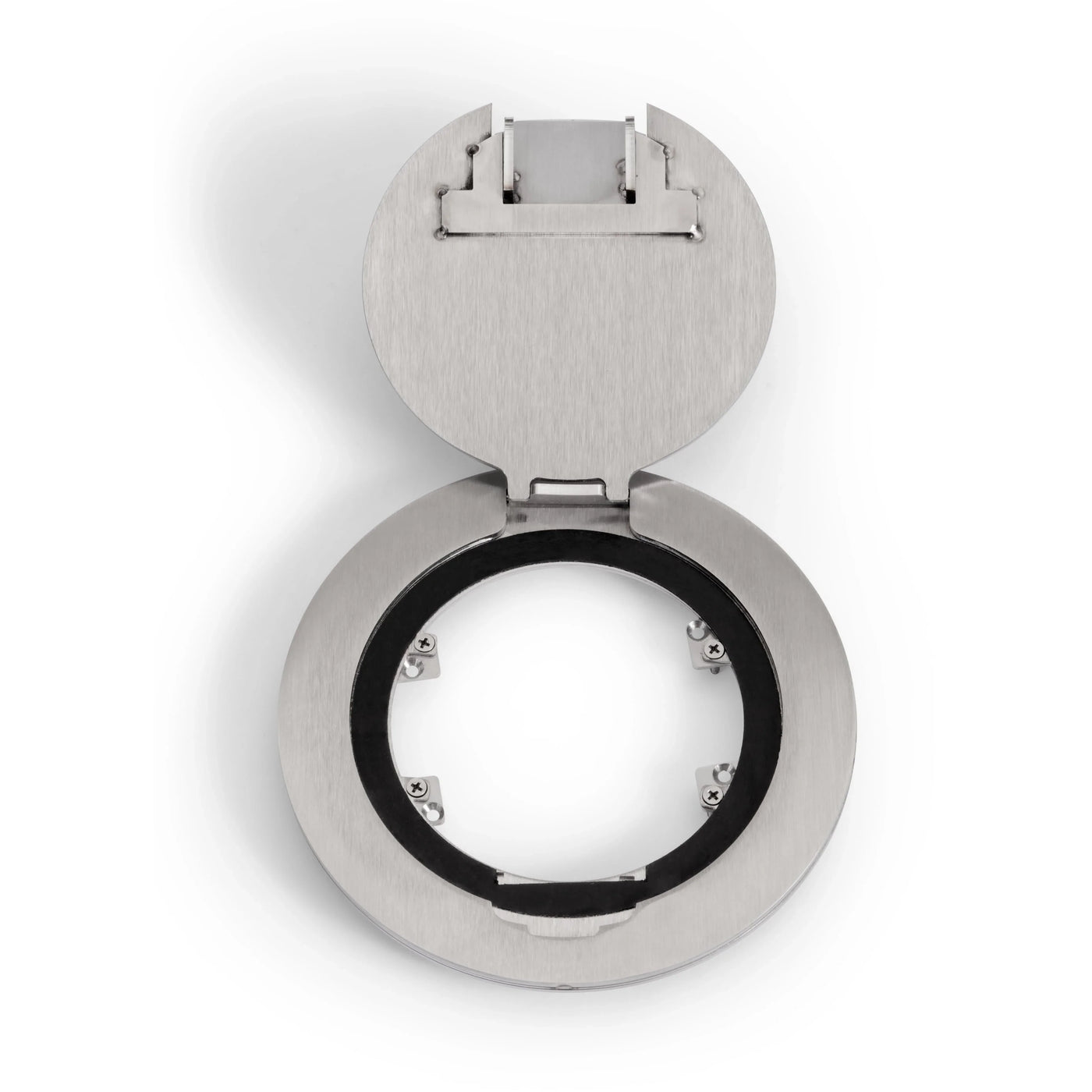

Recessed Connections and 180 Degree Lid with Trapdoor Cable Pass-Thru
The connections are down low in the box (2.75") so the cables can be plugged in and the lid closed. This eliminates tripping hazards because there are no plugs sticking above the surface of the ground. It also allows rugs to lay over the floor box with only the cable thickness above the box. The hinged lid also opens 180 degrees, it can be folded back flat against the ground if desired.

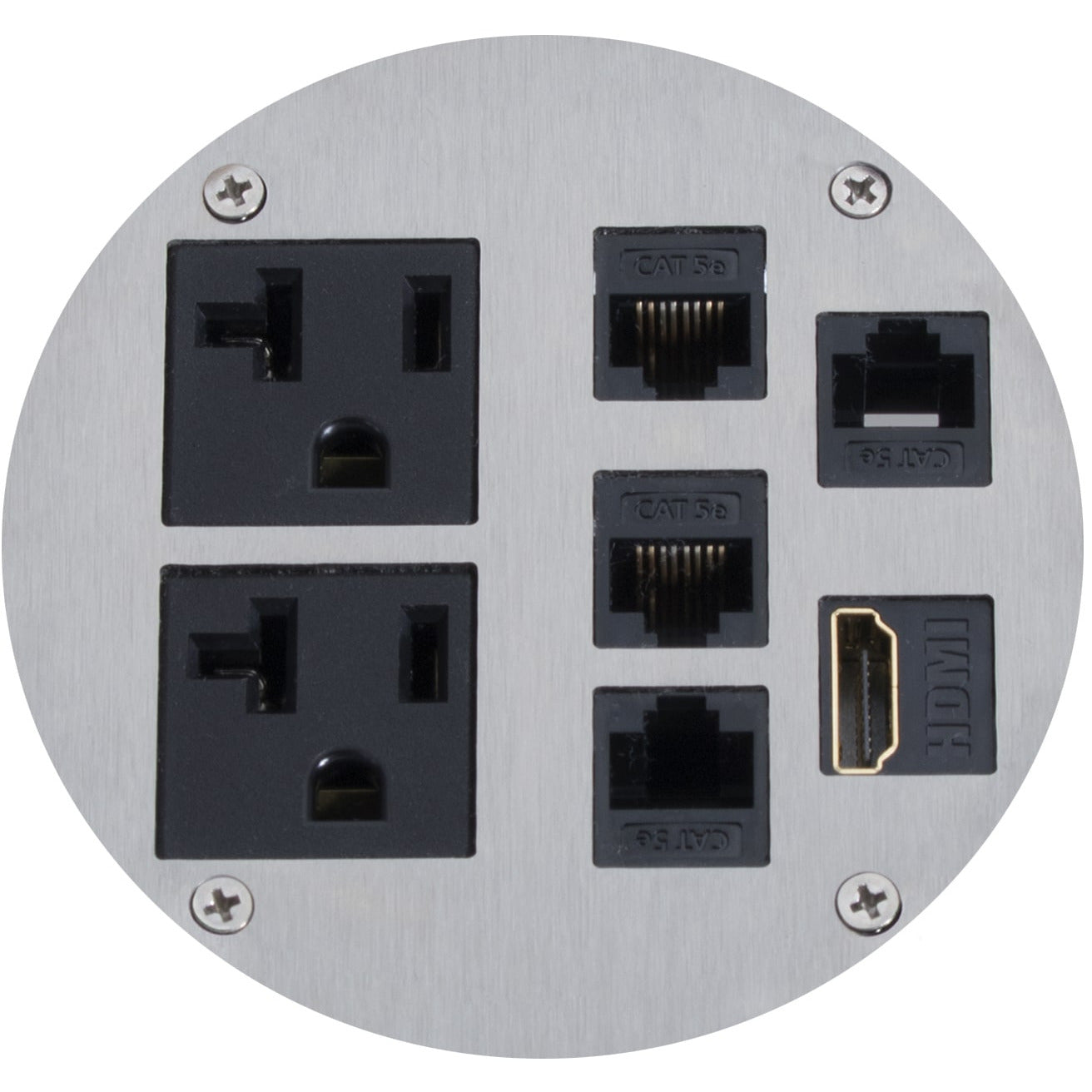

***The box comes with 2 power and 5 keystone openings (keystones not included)***
There is a small trap door in the stainless steel cover allowing cables to pass through the cover while the lid is closed.
Quick and Easy Installation

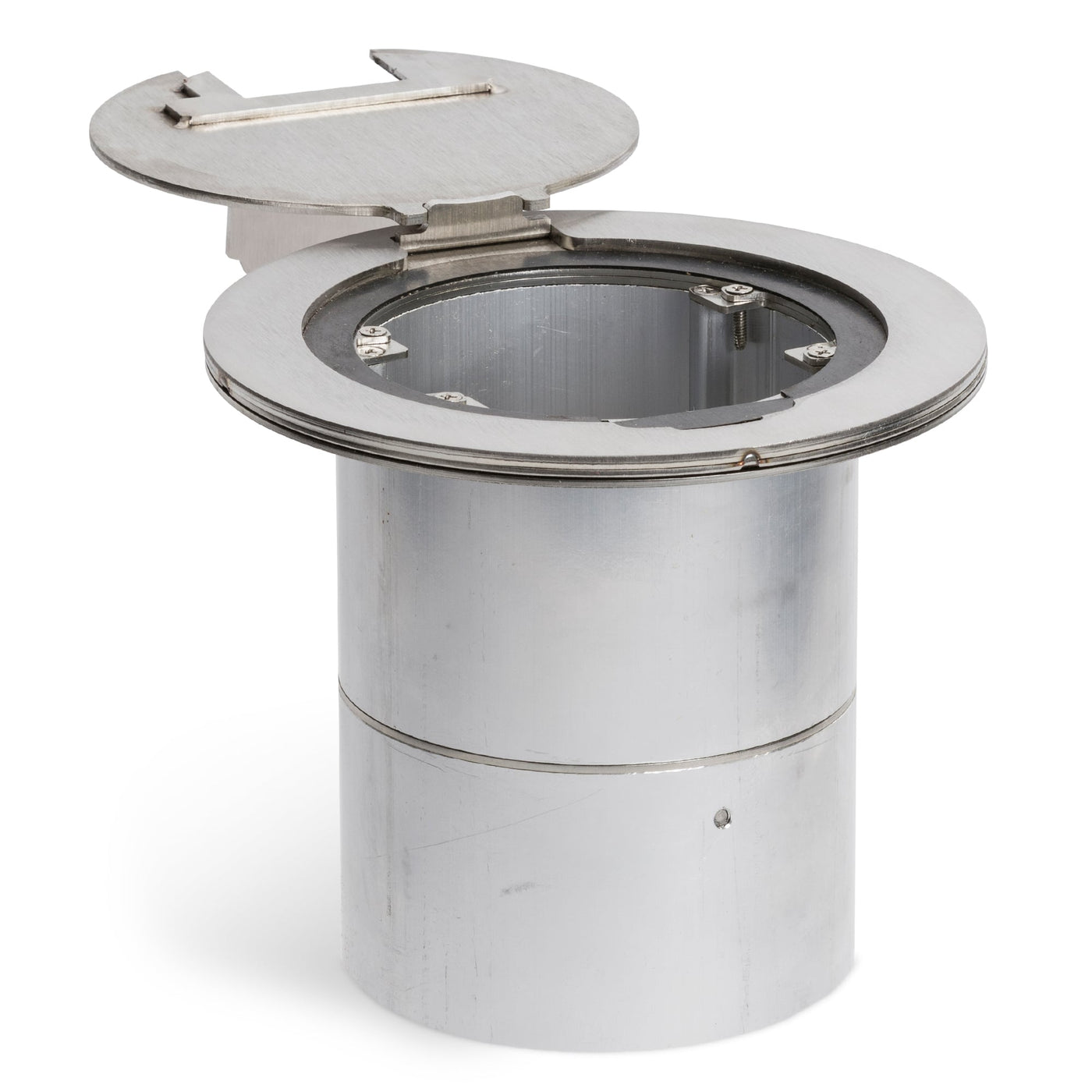

The box installs easily by creating a 4" opening with a hole saw, and then securing to the floor with the included wood screws. The box is 5" in depth and the cover is 6" in diameter and 1/4" thick. The cover is perfect for 1/4" carpet or another flooring to create a flush look. Alternatively the box can be installed completely flush by creating a 6" counterbore cut to the thickness of the cover. On the bottom of the box are one 1.25" knockout, and one .75" knockout.
Specifications:
- Recessed connections eliminate tripping hazards
- Connections: 2 power, 5 keystone openings
- Cover: Stainless steel
- Cable pass-through door in cover
- Lid hinges 180 degrees
- Partitioned compartments for power and data models
- UL listed for USA and Canada
- Depth: 5 inches
- Installs in 4" round hole
- 6" cover size, 1/4" thick
- Completely flush with 1/4 inch carpet or other flooring
- Fast, simple installation with included wood screws
- Can be installed through floor before or after carpet installation
- CSA approved for Canada, # 212271
- Warranty: 1 year
Connections: 2 power, 5 keystone openings
Cover: Stainless steel
Cable pass-through door in cover
Lid hinges 180 degrees
Partitioned compartments for power and data models
UL listed for USA and Canada
Depth: 5 inches
Installs in 4" round hole
6" cover size, 1/4" thick
Completely flush with 1/4 inch carpet or other flooring
Fast, simple installation with included wood screws
Can be installed through floor before or after carpet installation
CSA approved for Canada, # 212271
Warranty: 1 year
Installation Instructions (PDF)
Related Products
Concealed Plug Recessed Floor Box, 1 Outlet, Hidden Plugs, Dark Bronze
$160.00
The Lew Electric RCFB-1-DB is a recessed floor box that allows the user to hide the plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground. The cover is a dark bronze color which is perfect for matching dark floors. Eliminate Tripping Hazards with a Con...

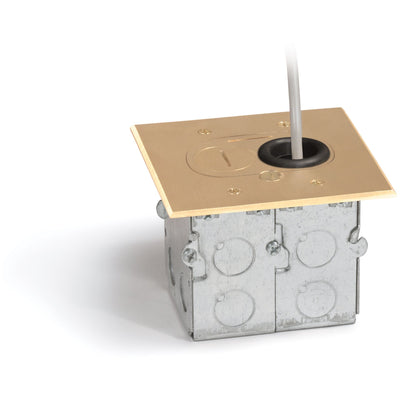

Concealed Power Recessed Floor Box, 1 Outlet, Hidden Plugs, Brass
$160.00
The Lew Electric RCFB-1 is a recessed floor box that allows the user to hide the plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground. The plate is real brass providing a durable cover for any floor. Eliminate Tripping Hazards with a Concealed Plug Flo...

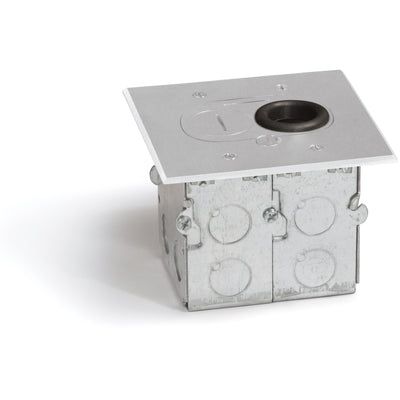

Concealed Power Recessed Floor Box, 1 Outlet, Hidden Plugs, Aluminum
$160.00
The Lew Electric RCFB-1-A is a recessed floor box that allows the user to hide the plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground. Eliminate Tripping Hazards with a Concealed Plug Floor Box Now you can safely eliminate dangerous plugs from being ...

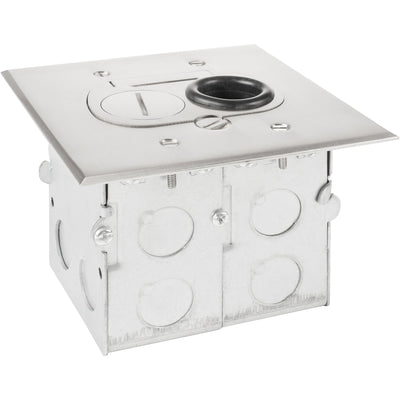

Concealed Power Recessed Floor Box, 1 Outlet, Hidden Plugs - Nickel
$168.00
The Lew Electric RCFB-1-NS is a recessed floor box that allows the user to hide the plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground. Eliminate Tripping Hazards with a Concealed Plug Floor Box Now you can safely eliminate dangerous plugs from being...
Concealed Plug Recessed Floor Box, 2 Outlets, Hidden Plugs - Dark Bronze
$319.00
The Lew Electric RCFB-2-DB is the only recessed floor box on the market that allows the user to hide 4 plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground. The cover is real metal and is a dark bronze color that is perfect for blending into dark floor...

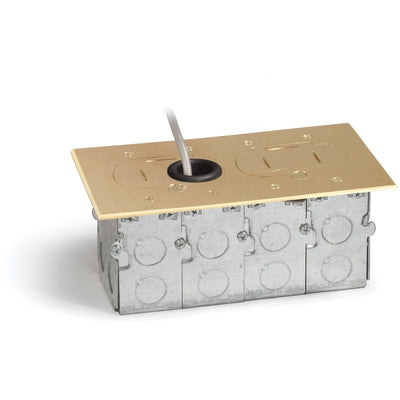

Concealed Power Recessed Floor Box, 2 Outlets, Hidden Plugs - Brass
$319.00
The Lew Electric RCFB-2 is the only recessed floor box on the market that allows the user to hide 4 plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground. The cover is real brass for a durable and beautiful look. Eliminate Tripping Hazards with a Conce...
Concealed Plug Recessed Floor Box, 2 Outlets, Hidden Plugs - Aluminum
$319.00
The Lew Electric RCFB-2-A is the only recessed floor box on the market that allows the user to hide 4 plugs down in the box, with only the cord coming out above the floor. This creates a low-profile look without the plugs sticking up from the ground. The cover is real aluminum creating a beautiful silver color. Eliminate Tripping Hazards with a ...

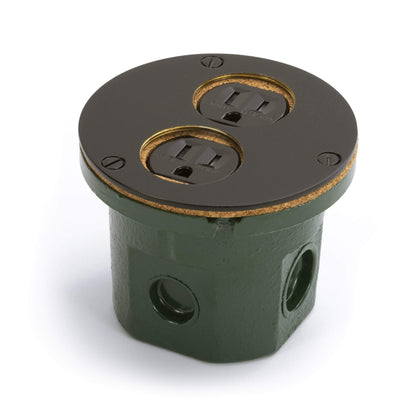

Flush Mounted Round Flat Floor Receptacle Floor Box - Dark Bronze
$124.00
The Lew Electric 812-DFB-DB is a flush mount cast iron floor box with a round dark bronze metal cover, with included power. Flush to the Floor Power Box That is Small in Size The box is designed to install flush in your floor creating a level surface for a nice clean look. The box recesses in the floor so it is perfectly even and seamless with t...

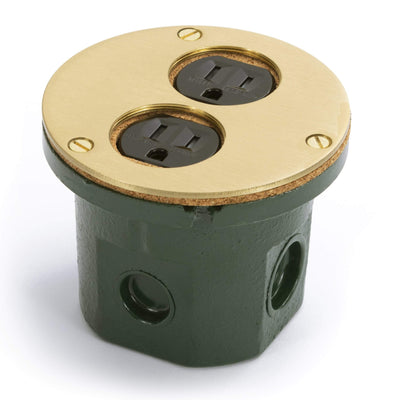

Flush Mounted Round Floor Box, One 15A Duplex, 2 Screw Plugs - Brass
$81.00
The Lew Electric 812-DFB is a flush mount cast iron floor box with a round brass cover, with included power. Flush to the Floor Power Box That is Small in Size The box is designed to install flush in your floor creating a level surface for a nice clean look. The box recesses in the floor so it is perfectly even and seamless with the floor. This ...

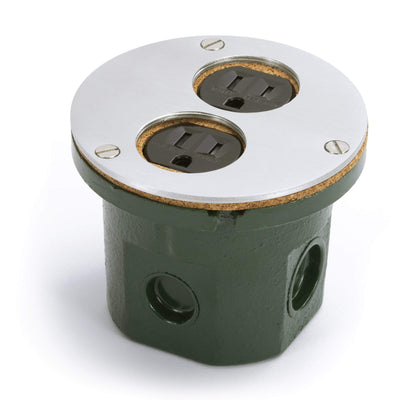

Flush Mounted Round Floor Box, One 15A Duplex, 2 Screw Plugs, Aluminum
812-DFB-A
Lew Electric
Flush Mounted Round Floor Box, One 15A Duplex, 2 Screw Plugs, Aluminum
$81.00
The Lew Electric 812-DFB-A is a flush mount cast iron floor box with a round aluminum cover, with included power. Flush to the Floor Power Box That is Small in Size The box is designed to install flush in your floor creating a level surface for a nice clean look. The box recesses in the floor so it is perfectly even and seamless with the floor. ...

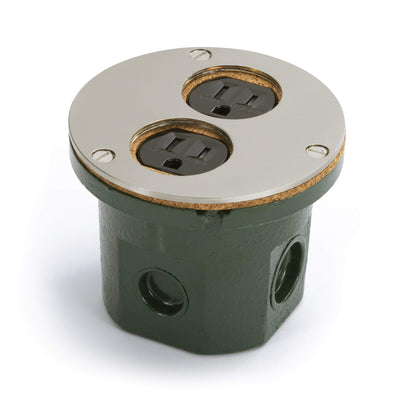

Flush Mounted Round Floor Box, One 15A Duplex, 2 Screw Plugs - Nickel
$106.00
The Lew Electric 812-DFB-NS is a flush mount cast iron floor box with a round nickel cover, with included power. Flush to the Floor Power Box That is Small in Size The box is designed to install flush in your floor creating a level surface for a nice clean look. The box recesses in the floor so it is perfectly even and seamless with the floor. T...

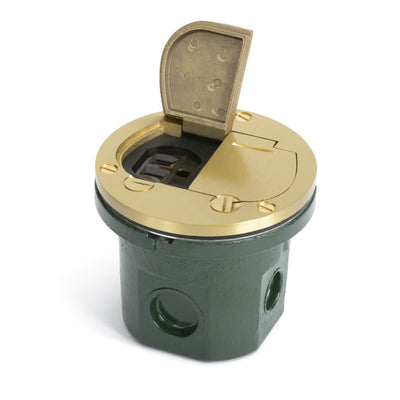

Flush Mounted Round Floor Box, One 15A Duplex, Flip Lids - Brass
