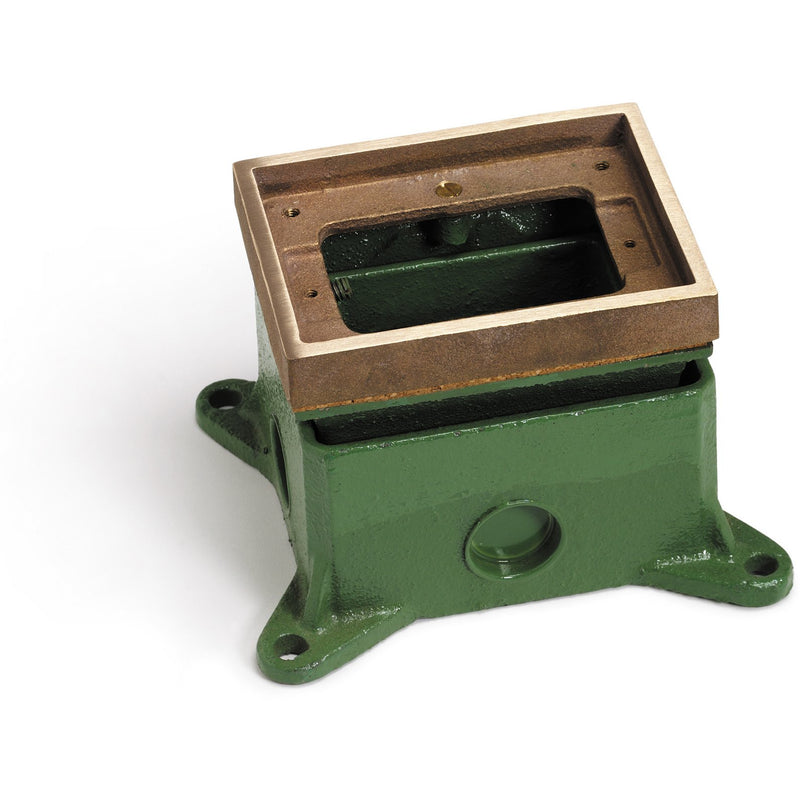

The Lew Electric 1101-58 is a cast iron concrete floor box with a single gang brass top. The box is fully adjustable and offers 3/8" of adjustability after it is installed via 4 screws with just a screwdriver. The box is deep offering 3.32" of height for installation, and 13 cubic inches of interior space. There is a 3/4" knockout on each side of the box to run your wires to. The box ships with a protective cement cover to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a sold separately carpet flange can be ordered, the CF-1100 series carpet flange adds 3/8" of height to accommodate the carpet and padding. For tile applications no flange is needed, simply pour your concrete to the level of the tile frame less the thickness of the tile. To further make installation as easy as possible, screws are provided to mount the cover assembly to the box. The box is UL listed for the USA, and cUL listed for Canada installations.
- Top: Brass
- Requires cover, sold separately
- Size: Single gang
- For concrete installations
- Offers 3/8" of adjustability post installation
- 13 cubic inches of interior space
- 3/4" knockouts on each side
- UL and cUL listed, # 514A, 489H
- Includes construction cap
- Includes cover screws to secure to box
- Box dimensions: 4.25" x 3.88"
- Depth: 3.32" deep
- Can be used with carpet or tile
- Warranty: 1 year
Requires cover, sold separately
Size: Single gang
For concrete installations
Offers 3/8" of adjustability post installation
13 cubic inches of interior space
3/4" knockouts on each side
UL and cUL listed, # 514A, 489H
Includes construction cap
Includes cover screws to secure to box
Box dimensions: 4.25" x 3.88"
Depth: 3.32" deep
Can be used with carpet or tile
Warranty: 1 year
