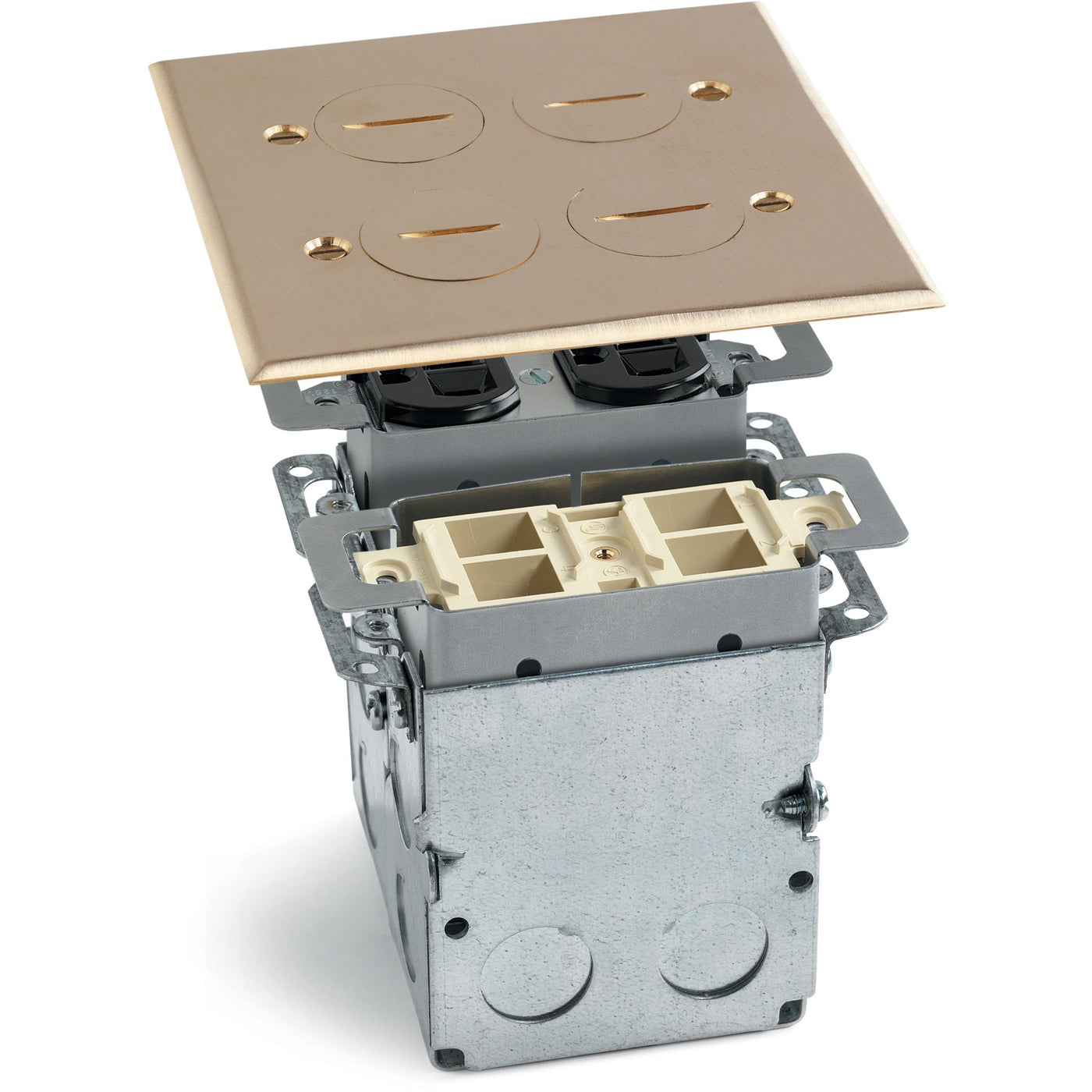

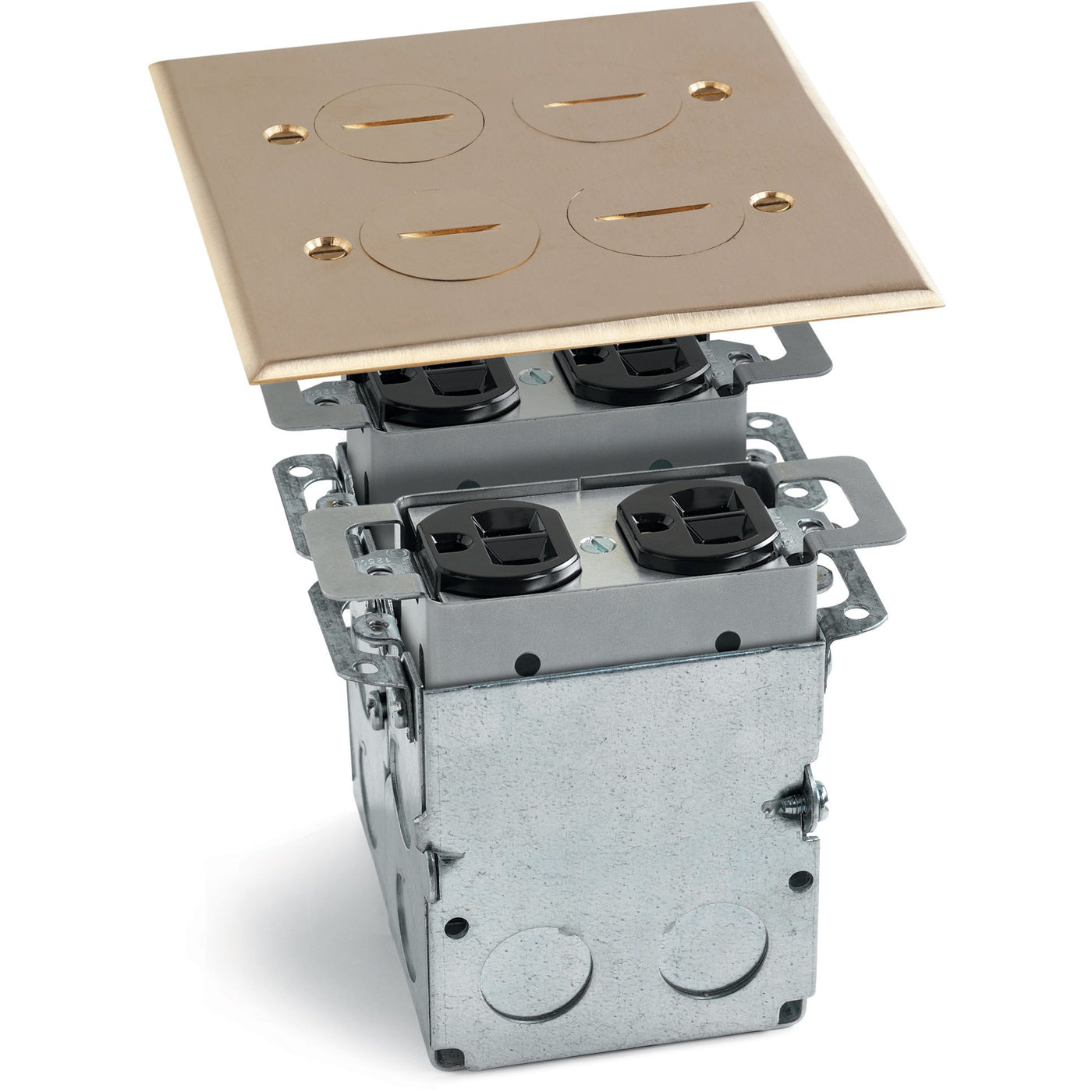

The Lew Electric SWB-4 is a recessed floor plate with brass cover, also included is the back box for your 1/2" conduit connections. Inside the floor box are two duplex 15A outlet, the plugs are tamper proof. Also included is an empty 4 port keystone plate giving you the option to add your own keystone jacks in the box for data, communication, or video. The sleeve in the box is adjustable up to 3/4" to accommodate any floor making installation a snap, screws are included to attach the plate to the receptacle box. The box may be attached directly to the subfloor or routed into a finished floor. The cover has four screw plugs that give you access to the outlets. The box features a watertight assembly, there is a durable 1/16" neoprene rubber gasket that goes between the receptacle and plate. The box is UL listed, and the receptacle is UL listed and meets heavy duty requirements for display receptacles. This floor box is a simple and economical solution to provide your power and even data in a small and attractive plate.
- Plate: 1/8" brass
- Outlet: 2 duplex 15A tamper proof

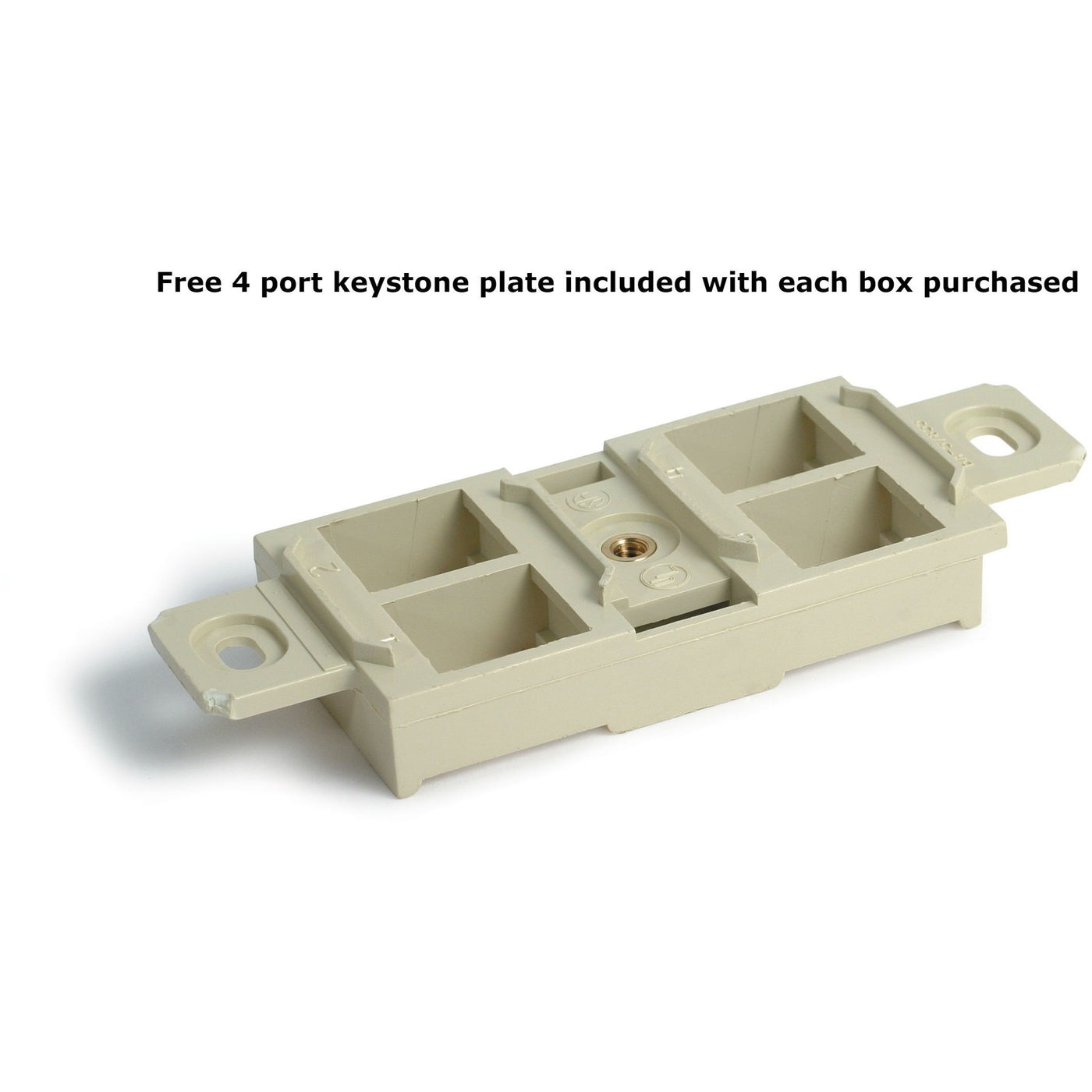

- Includes 4 port empty keystone plate
- 4 screw plugs for access
- Adjustable up to 3/4"
- Attach to floor or route into finished floor
- Includes 1/16" neoprene rubber gasket
- Box UL # E345966
- Outlet UL # E333616
- Meets NEMA WD1-1983 requirement
- Several knockouts for conduit
- Includes plate screws
- Cover size: 5" x 5"
- Back box size: 4"L x 3"W x 3.5"H
- Cutout size: Can't exceed 4 1/8" x 3 1/2"
- Size: 2 gang divided
- Warranty: 1 year
Plate: 1/8" brass
Outlet: 2 duplex 15A tamper proof
Includes 4 port empty keystone plate
4 screw plugs for access
Adjustable up to 3/4"
Attach to floor or route into finished floor
Includes 1/16" neoprene rubber gasket
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size: 5" x 5"
Back box size: 4"L x 3"W x 3.5"H
Cutout size: Can't exceed 4 1/8" x 3 1/2"
Size: 2 gang divided
Warranty: 1 year
Questions & AnswersAsk a Question
what is the keystone plate used for?
You can take out one of the power and use the keystone plate for connections such as data and HDMI.
