Recessed Floor Plate w/ Box, Two 15A Duplex, 4 Flip Lids, Brass

  |   Q&A

$198.31

Free shipping on orders over $99

Part #: SWB-4-LR
Vendor: Lew Electric
In stock! Ships same business day from Chicago if ordered by 1:30EST
Maximum quantity available reached.

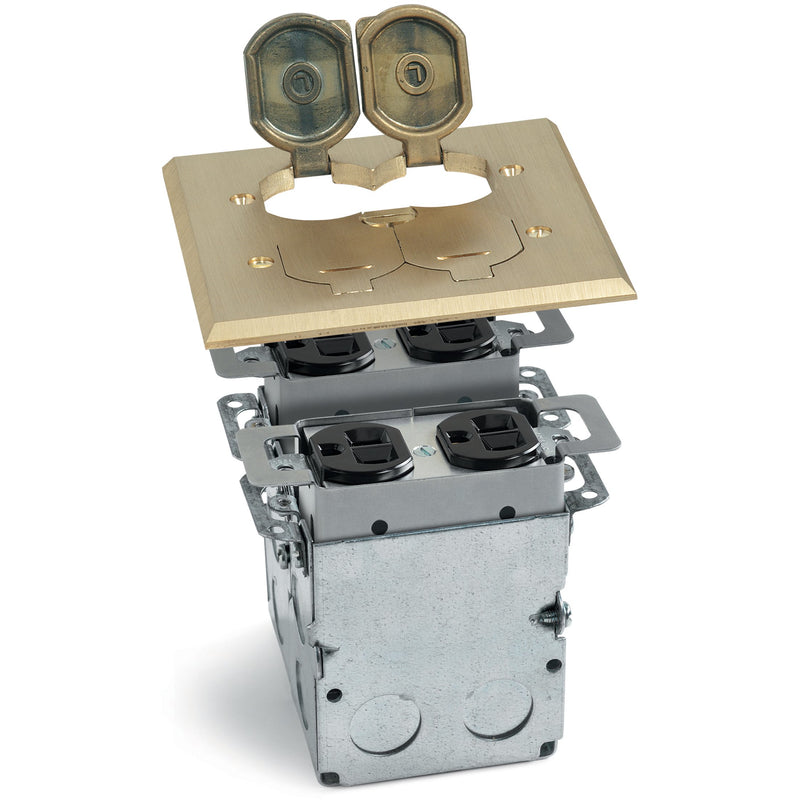

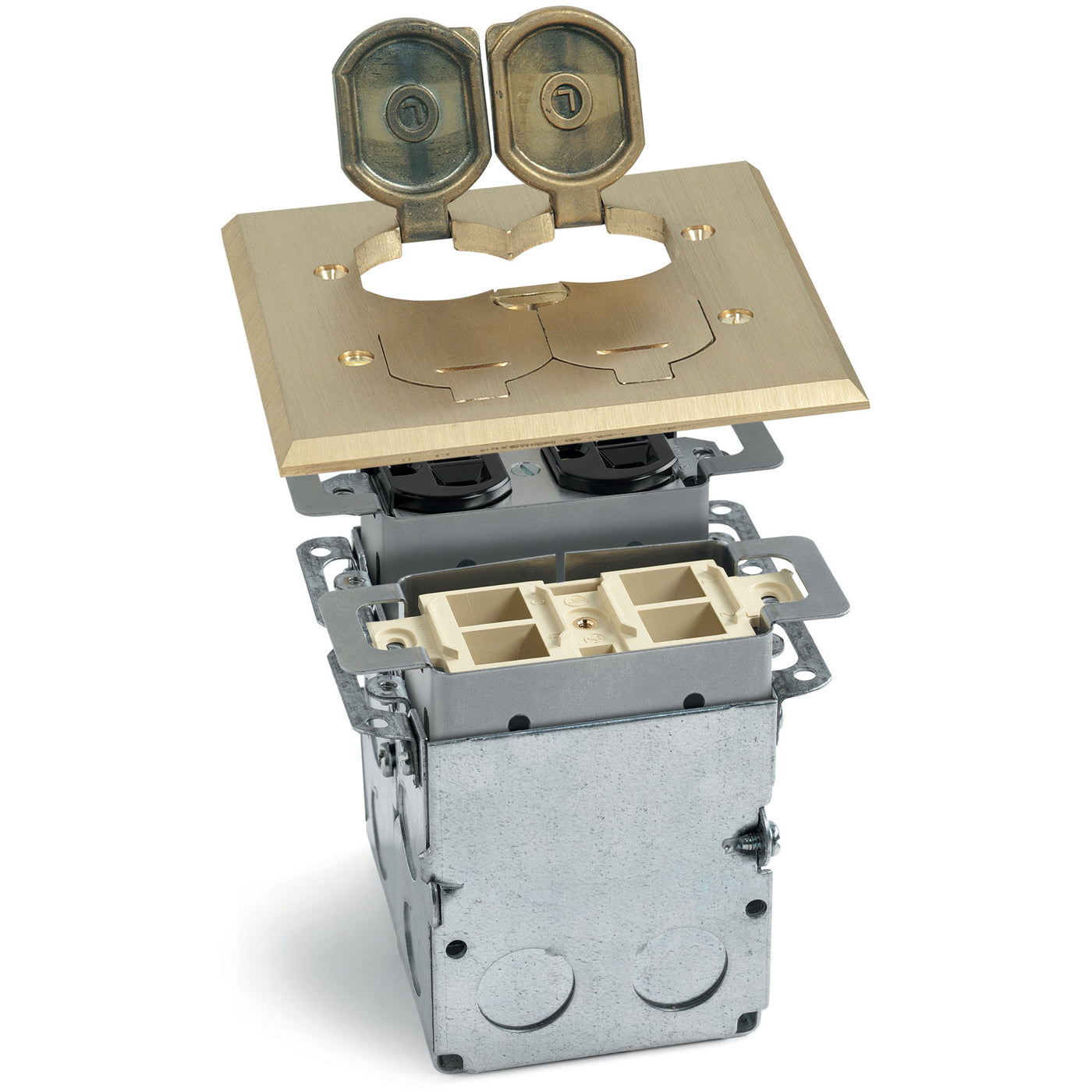

The Lew Electric SWB-4-LR is a recessed floor plate with brass cover, also included is the back box for your 1/2" conduit connections.  Inside the floor box are two duplex 15A outlet, the plugs are tamper proof. Also included is an empty 4 port keystone plate giving you the option to add your own keystone jacks in the box for data, communication, or video. The sleeve in the box is adjustable up to 3/4" to accommodate any floor making installation a snap, screws are included to attach the plate to the receptacle box. The box may be attached directly to the subfloor or routed into a finished floor. The cover has four flip lids for fast access to the outlets. The box features a watertight assembly,  there is a durable 1/16" neoprene rubber gasket that goes between the receptacle and plate. The box is UL listed, and the receptacle is UL listed and meets heavy duty requirements for display receptacles. This floor box is a simple and economical solution to provide your power in a small and attractive plate.

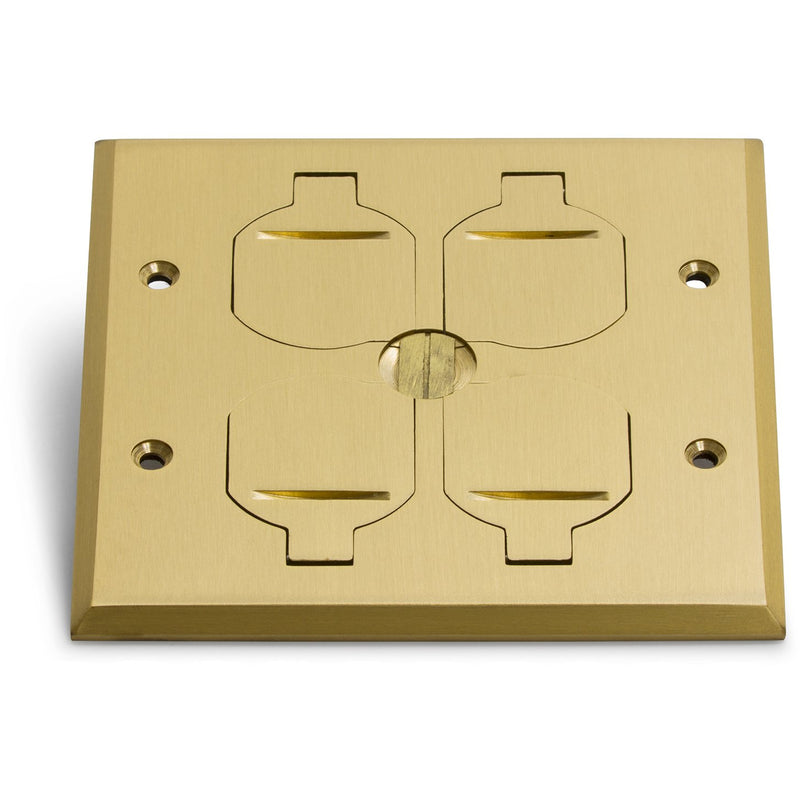

Plate: 1/8" brass
Outlet: 2 duplex 15A tamper proof

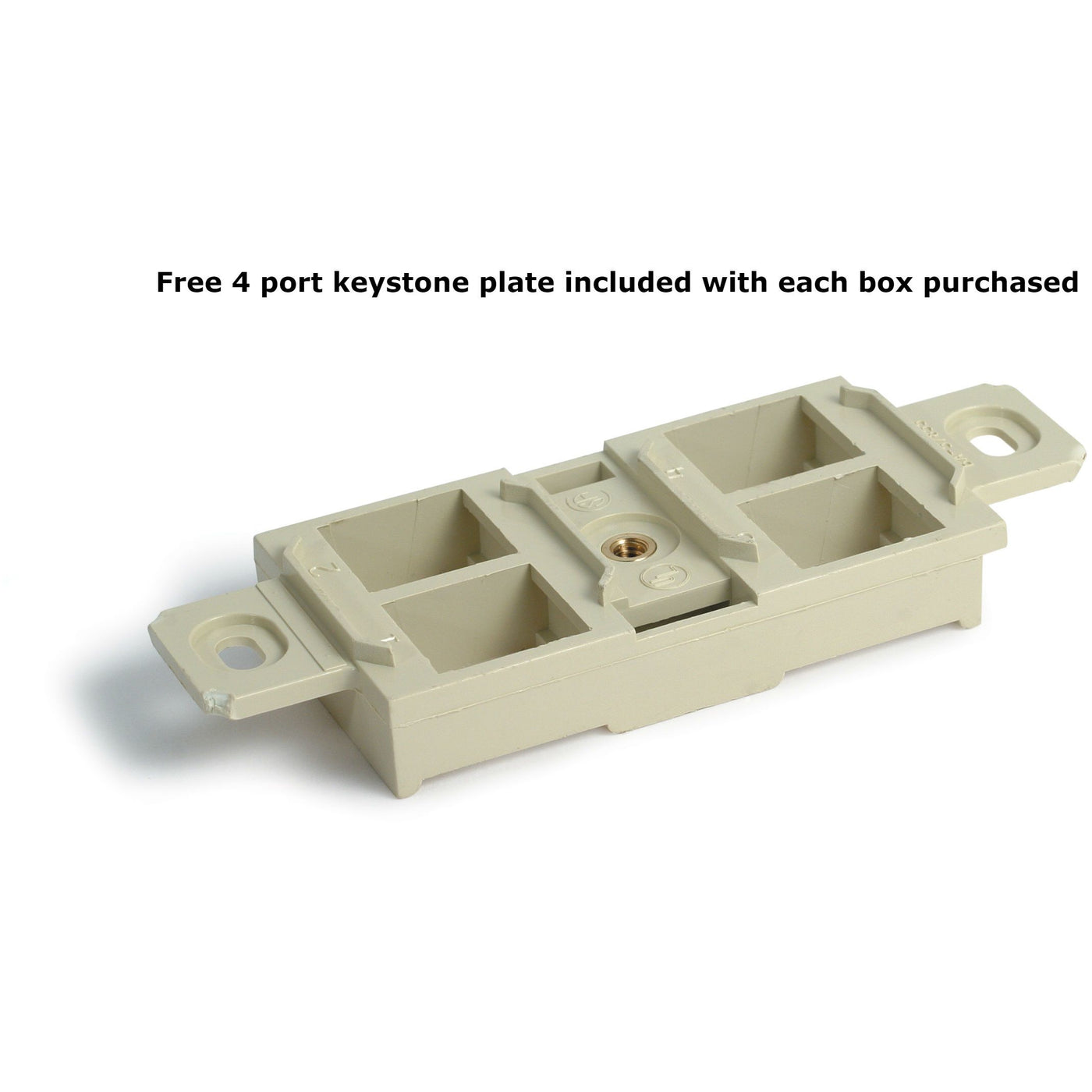

Includes 4 port empty keystone plate
4 flip lids
Adjustable up to 3/4"
Attach to floor or route into finished floor
Includes 1/16" neoprene rubber gasket
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  5" x 5"
Back box size:  4"L x 3"W x 3.5"H
Cutout size: Can't exceed 4 1/8" x 3 1/2"
Size:  2 gang divided
Warranty:  1 year

Plate: 1/8" brass
Outlet: 2 duplex 15A tamper proof
Includes 4 port empty keystone plate
4 flip lids
Adjustable up to 3/4"
Attach to floor or route into finished floor
Includes 1/16" neoprene rubber gasket
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  5" x 5"
Back box size:  4"L x 3"W x 3.5"H
Cutout size: Can't exceed 4 1/8" x 3 1/2"
Size:  2 gang divided
Warranty:  1 year
